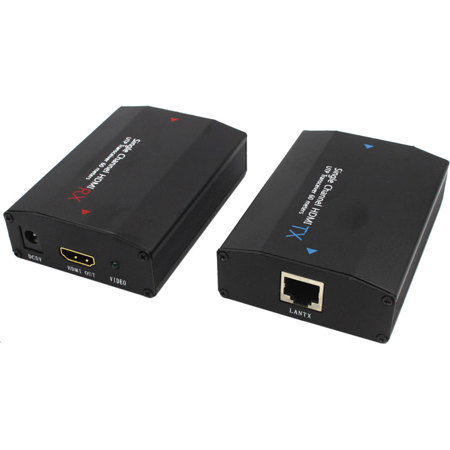

Dahua PFM700-E HDMI Transmitter and Receiver Extender
See all dahua items

Dahua PFM700-E HDMI Transmitter and Receiver Extender

SKU: DHPFM700E
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua PFM700-E Specifications

  • Material

    Shell: Aluminum

  • Transmission Type

    1 channel, HDMI

  • Transmission Distance

    Up to 197' (60 m)

  • Video Signal Input

    HDMI

  • Ethernet

    RJ45 port
    Cat5e or Cat6 UTP cable

  • Input Voltage

    5 VDC

  • Power

    Transmitter: <3 W
    Receiver: <3 W

  • HDCP Support

    HDCP 1.2

  • HDMI Support

    HDMI 1.3 and lower

  • Resolution

    1080p, 1080i, 720p, 576p, 576i, 480p, 480i

  • Output Voltage

    0.5-1.5 V p-p

  • Protection

    ESD:
    IEC61000-4-2 1995 (GB/T 17626.5)
    Contact Discharge Electricity Level: 3
    Air Discharge Electricity Level: 3

    Anti-Thunder:
    1 kV, IEC6100-4-5 1995 (GB/T 17626.5)

  • Mean Time Before Failure

    >5000 hours

  • Operating Temperature

    32 to 131 Degree F (0 to 55 Degree C)

  • Storage Temperature

    -4 to 176 Degree F (-20 to 80 Degree C)

  • Humidity

    0 to 95%, non-condensing

  • Dimensions

    Transmitter: 3.5 x 2.5 x 0.98" (88 x 64 x 25mm)
    Receiver: 3.5 x 2.5 x 0.98" (88 x 64 x 25mm)

  • Weight

    Transmitter: 3.4 oz (97g)
    Receiver: 3.2 oz (91g)

  • UPC Code

    816116023235

About Dahua PFM700-E

Dahua PFM700-E Features

  • Power supply: Input voltage DC5V, only supply for transmitter
  • Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference
  • Transmission distance: HDMI transmission distance 60m (max.196.85ft)
  • Infrared function: support to transmit one-way infrared remote control signal
  • Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID
  • Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities
  • Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Power supply: Input voltage DC5V, only supply for transmitter
  • Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference
  • Transmission distance: HDMI transmission distance 60m (max.196.85ft)
  • Infrared function: support to transmit one-way infrared remote control signal

What's in the box:

  • PFM700-E HDMI Extender (1x Transmitter and 1x Receiver)
  • Windband IR Tx Cable
  • Windband IR Rx Cable
  • DC5V1A Power Adapter
  • User Manual
  • Dahua 3 Year Limited Warranty
