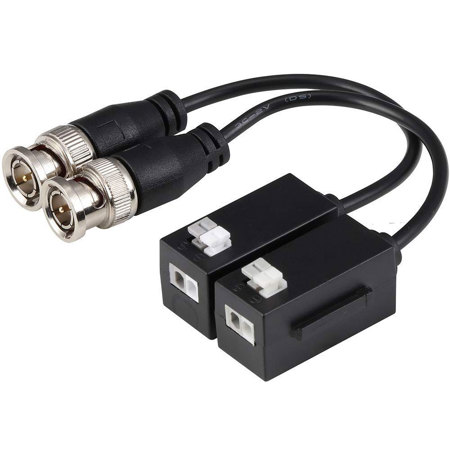

Dahua PFM800-4K 1-Channel Passive Video Balun, Pair
See all dahua items

Dahua PFM800-4K 1-Channel Passive Video Balun, Pair

SKU: DHPFM8004K
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua PFM800-4K 1-Channel Passive Video Balun, Pair Specifications

  • Color

    Black

  • Transmission Signal

    1-CH

  • Network cable Type

    UTP CAT5E/6 (material: CU)

  • Transmission Properties

    HDCVI
    720P: Max 1312.34' (400m)
    1080P: Max 820.21' (250m)
    4M/6M/4K: Max 656.17' (200m)

    TVI
    720P: Max 1312.34' (400m)
    1080P: Max 820.21' (250m)
    4M/5M: Max 656.17' (200m)

    AHD
    720P: Max 1312.34' (400m)
    1080P: Max 820.21' (250m)
    4M/5M: max 656.17' (200m)

  • Coaxial Video Connector

    BNC-M

  • Connection Way

    RJ45

  • Compatible Format

    HDCVI/TVI/AHD/CVBS

  • Resolution

    720P/1080P/4MP/5MP/4K

  • ESD

    1a contact discharge electricity level 3
    1b air discharge electricity level 3
    Per: IEC61000-4-2

  • UTP Cable Connector

    2KV (different-mode), 4KV (common-mode)
    Per: IEC61000-4-5

  • BNC Male Impedance

    75 ohms

  • UTP Cable Impedance

    100 ohms

  • Shell

    ABS

  • Operating Temperature

    -22 to+158 Degree F (-30 to +70 Degree C)

  • Storage Temperature

    -40 to +176 Degree F (-40 to +80 Degree C)

  • Operating Humidity

    <95% RH

  • Dimension(L x W x H)

    6.84 x 0.77 x 0.83 " (173.8 x 19.5 x 21mm)

  • Weight

    Pair: 0.09 lb (40g)

  • UPC Code

    819290027242

About Dahua PFM800-4K 1-Channel Passive Video Balun, Pair

Dahua PFM800-4K 1-Channel Passive Video Balun, Pair Features

  • Real-time transmission over UTP CAT5E/6 cable
  • Passive, no need for power supply
  • Excellent anti-thunder, anti-static and anti-interference capabilities
  • Compatible format: HDCVI/TVI/AHD/CVBS
  • With female BNC connector, and pluggable screw terminal connections

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Real-time transmission over UTP CAT5E/6 cable
  • Passive, no need for power supply
  • Excellent anti-thunder, anti-static and anti-interference capabilities
  • Compatible format: HDCVI/TVI/AHD/CVBS
  • With female BNC connector, and pluggable screw terminal connections

What's in the box:

  • 2x PFM800-4K 1-Channel Passive Video Balun
  • Dahua 3 Year Limited Warranty
