Dahua DH-PFS3006-4ET-60 60W 4-Port Fast Ethernet PoE+ Switch
See all dahua items

Dahua DH-PFS3006-4ET-60 60W 4-Port Fast Ethernet PoE+ Switch

SKU: DHS30064ET60
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-PFS3006-4ET-60 Specifications

Interfaces

Interfaces

Jump to...

  • Ports

    2 x 10/100 Mb/s Ethernet (RJ45) (Uplink)
    4 x 10/100 Mb/s Ethernet (RJ45) PoE+ (Type 2)

Protocols

Jump to...

  • Layer Services Supported

    Layer 2 Support

  • Supported Protocols

    Auto-MDIX/MDI

  • MAC Address Table Size

    2K

Standards

Jump to...

  • Supported IEEE Standards

    802.3, 802.3af, 802.3at, 802.3u, 802.3x

Performance

Jump to...

  • Forwarding Rate

    0.89 Mpps

  • Switching Bandwidth

    1.8 Gb/s

  • Packet Buffer

    768 Kb

Electrical

Jump to...

  • DC Input Power

    48 to 57 VDC

  • PoE Power Budget

    60 W

  • PoE per Port

    30 to 60 W

Environmental

Jump to...

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    10 to 90%

  • Certifications

    CE, FCC, UL, as per Manufacturer

Physical

Jump to...

  • Dimensions

    5.12 x 3.35 x 1.02" (130.05 x 85.09 x 25.91mm)

  • Weight

    0.7 lb (0.3kg)

About Dahua DH-PFS3006-4ET-60

PFS3006-4ET-60 is a 4-port fast Ethernet switch, which supports 250 meters long distance PoE transmission. It provides 4x10/100Mbps PoE ports and 2x100 Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.

Dahua DH-PFS3006-4ET-60 Features

  • Layer two commercial switch
  • Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • MAC auto learning, aging, MAC address capacity is 2K
  • Supports MDI/MDIX self-adaptation
  • RJ45 port supports 10/100 Mbps self-adaptation
  • Supports IEEE802.3af and IEEE803.3at power supply standards
  • Adopts metal enclosure
  • Supports Hi-PoE 60W
  • Supports DC 48-57V power supply

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Layer two commercial switch
  • Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • MAC auto learning, aging, MAC address capacity is 2K
  • Supports MDI/MDIX self-adaptation
  • RJ45 port supports 10/100 Mbps self-adaptation
  • Supports IEEE802.3af and IEEE803.3at power supply standards

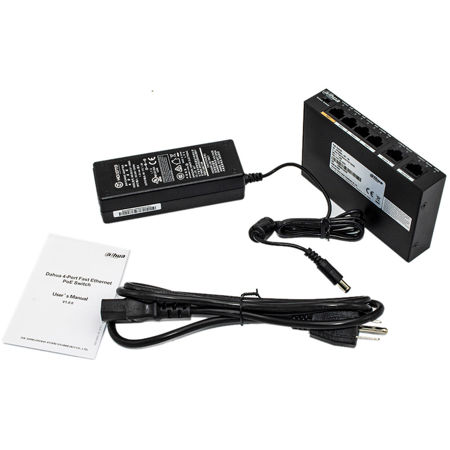

What's in the box:

  • DH-PFS3006-4ET-60 60W 4-Port Fast Ethernet PoE+ Switch
  • Dahua 3 Year Limited Warranty
