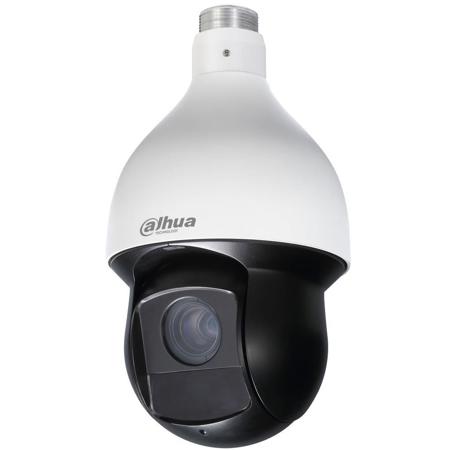

Dahua Pro 2MP Ultra-High Speed IR HDCVI PTZ Dome Camera with 4.3-129mm Lens, 30x
See all dahua items

Dahua Pro 2MP Ultra-High Speed IR HDCVI PTZ Dome Camera with 4.3-129mm Lens, 30x Optical zoom

SKU: DHSD59230HC

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-SD59A230IN-HC Specifications

  • Image Sensor

    1/2.8 Exmor CMOS

  • Effective Pixels

    1920(H) x 1080(V), 2Megapixels

  • Horizontal Resolution

    >=1000TVL

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/1 - 1/30,000s

  • Min. Illumination

    Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on)

  • S/N Ratio

    More than 50dB

  • Camera Resolution

    30fps@1080P, 30/60fps@720P

  • Video Output

    1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)

  • Day/Night

    Auto(ICR) / Color / B/W

  • Backlight Compensation

    BLC / HLC / DWDR (Digital WDR)

  • White Balance

    Auto, ATW, Indoor, Outdoor, Manual

  • Gain Control

    Auto / Manual

  • Noise Reduction

    2D/3D

  • Privacy Masking

    Up to 24 areas

  • Digital Zoom

    16x

  • Focal Length

    4.3mm-129mm(30x Optical zoom)

  • Max Aperture

    F1.6 - F5.0

  • Focus Control

    Auto / Manual

  • Angle of View

    H: 65.1 Degree - 2.34 Degree

  • Close Focus Distance

    100mm - 1000mm

  • Pan/Tilt Range

    Pan: 0 degree - 360 degree endless; Tilt: -15 degree - 90 degree, auto flip 180 degree

  • Manual Control Speed

    Pan: 0.1 degree - 300 degree /s; Tilt: 0.1 degree - 200 degree /s

  • Preset Speed

    Pan: 400 degree /s; Tilt: 300 degree /s

  • Preset

    300(DH-SD), 255(Pelco-P/D)

  • PTZ Mode

    5 Pattern, 8 Tour, Auto Pan, Auto Scan

  • Speed Setup

    Human-oriented focal length/ speed adaptation

  • Power up Action

    Auto restore to previous PTZ and lens status after power failure

  • Idle Motion

    Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

  • Protocol

    DH-SD, Pelco-P/D (Auto recognition)

  • IR Distance

    100m

  • Audio Interface

    1 channel In

  • RS485

    1

  • Alarm

    2/1 channel In/Out

  • Power Supply

    AC24V/3A (+/-10%)

  • Power Consumption

    12W, 25W (IR on)

  • Working Environment

    -40 degree C - 70 degree C / Less than 90% RH

  • Ingress Protection

    IP66

  • Dimensions

    186.0(mm) x 310(mm) / 7.32" x 12.2"

  • Weight

    3.5Kg

  • UPC Code

    816116021392

About Dahua DH-SD59A230IN-HC

Dahua DH-SD59A230IN-HC Features

  • 30x optical zoom
  • Max. 30fps@1080P(1920x1080) & 30/60fps@720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Max 400 Degree/s pan speed, 360 Degree endless pan rotation
  • Control over coaxial cable, long distance real-time transmission
  • HD and SD switchable
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • IR Distance up to 100m
  • IP66,OSD

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 30x optical zoom
  • Max. 30fps@1080P(1920x1080) & 30/60fps@720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Max 400 Degree/s pan speed, 360 Degree endless pan rotation
  • Control over coaxial cable, long distance real-time transmission
  • HD and SD switchable

What's in the box:

  • HDCVI Camera
  • Dahua 3 Year Limited Warranty
