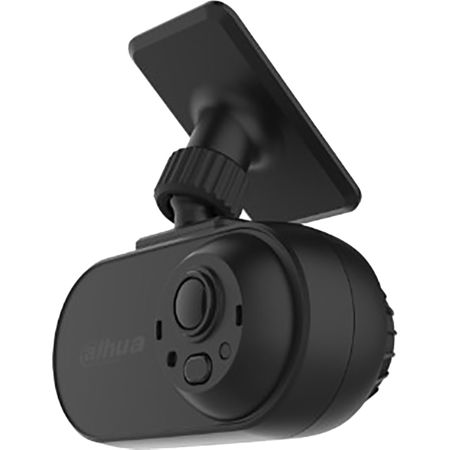

Dahua DH-HAC-HMW3200LN-FR Mobile Series 2MP 1080p IR HDCVI Dual-Sensor Vehicle Camera with 2.1mm F2.0 Fixed Lens

Dahua Mobile Solutions offers a Full HD in real-time mobile video surveillance solution that provides reliable security via an analog infrastructure. The Mobile Solution camera is designed with a shock-proof and a compact case, providing an easy and discrete installation. The HDCVI technology ensures the camera operates reliably and delivers high-quality images in most mobile applications.

Functions
Design for Mobile Surveillance
The compact black housing and black front face blends in with most vehicle interiors and minimizes interference with other installed devices. The design also minimizes vibration and shock from normal driving situations. The compact design allows for quick and easy installation with 3M double-sided tape eliminating the need to damage assets with traditional installation methods.

Dual Sensors
The DH-HAC-HMW3200LN-FR HDCVI camera uses two (2) sensors, ideal for applications that require simultaneous rear- and front-facing surveillance. The camera provides separate HDCVI high-definition video outputs for each video channel. This camera takes the place of multiple cameras, offering instant return on investment for your security dollars.

Four Signals over a Single Coaxial Cable
HDCVI technology simultaneously transmits video, audio, power, and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. HDCVI along with PoC technology delivers power½ to devices at the edge, simplifying installation.

Audio
The camera is designed with a built-in microphone for to pickup audio and transmit the signal over the aviation connector cable. Dahua's HDCVI audio compression technology ensures synchronization of audio and video to provide complete visual and audible evidence to resolve incidents.

Multi-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via a UTC controller (PFM820), making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.

Shock Proof
Vibration is inevitable in mobile applications. In order to avoid image or connection failure, the hardware structure of the mobile camera is shock-proof and is certified to the EN50155 standard. Plus, the mobile camera uses an M12 aviation connector for stable connection to an MCVR.

Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.

Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 3 m (9 ft).

Protection
With a working temperature range of -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F), the camera is designed for extreme temperature environments. Supporting +/-25% input voltage tolerance, this camera suits even the most unstable power supply conditions.
