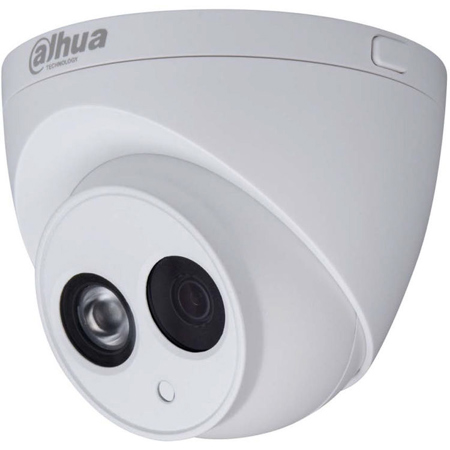

Dahua Pro 2MP IR Eyeball Network Camera with 2.8mm F2.0 Manual Lens

SKU: DHW421E28

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua DH-IPC-HDW42A1EN-2.8MM Specifications

  • Image Sensor

    1/2.7" CMOS

  • Effective Pixels

    1920(H) x 1080(V)

  • ROM / RAM

    16MB / 256MB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/3 (4) - 1/100,000s

  • Minimum Illumination

    Color: 0.01 Lux@F2.0
    B/W: 0.001 Lux@F2.0;
    0 Lux (IR On)

  • S/N Ratio

    More than 50dB

  • IR Distance

    Distance Up to 50m (165ft)

  • IR On/Off Control

    Auto/ Manual

  • IR LEDs

    1

  • Lens Type

    Fixed

  • Mount Type

    Board-in

  • Focal Length

    2.8mm

  • Max Aperture

    F2.0

  • Angle of View

    H: 110 Degree

  • Focus Control

    Fixed

  • Pan/Tilt Range

    Pan: 0 Degree - 360 Degree ; Tilt: 0 Degree - 78 Degree , Rotation: 0 Degree - 360 Degree

  • Compression

    Smart H.264+ / MJPEG

  • Streaming Capability

    3 Streams

  • Resolution

    1080p (1920x1080) / 720p (1280x720) / D1 (704x576/704x480) / CIF (352x288/352x240)

  • Frame Rate

    Main Stream 2MP (1 - 30fps)
    Sub Stream 1 D1/CIF (1 - 30fps)
    Sub Stream 2 720p (1 - 20fps)

  • Bit Rate Control

    CBR / VBR

  • Bit Rate

    H.264: 4K - 10Mbps

  • Day/Night

    Auto (ICR) / Color / B/W

  • BLC Mode

    BLC / HLC / WDR (120dB)

  • White Balance

    Auto / Sunny / Night / Outdoor / Customized

  • Gain Control

    Auto / Manual

  • Noise Reduction

    3D DNR

  • Motion Detection

    Off / On (4 Zone, Rectangle)

  • Region of Interest

    Off / On (4 Zone)

  • Smart IR

    Support

  • Digital Zoom

    16x

  • Flip

    0 Degree /90 Degree /180 Degree /270 Degree

  • Mirror

    Off / On

  • Privacy Masking

    Off / On (4 Area, Rectangle)

  • Ethernet

    RJ-45 (10/100Base-T)

  • Protocol

    IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Interoperability

    ONVIF, PSIA, CGI

  • Streaming Method

    Unicast / Multicast

  • Max. User Access

    20

  • Web Viewer

    IE10

  • Management Software

    Smart PSS, DSS

  • Smart Phone

    Android, Ios

  • Certifications

    FCC (SEFD1509190-A)
    UL (E234884-A72-UL)

  • Power Supply

    12V DC +/-25%, PoE (af Class 0)

  • Power Consumption

    Max. 4.0W (12V DC, IR On),
    Max. 4.0W (PoE, IR On)

  • Operating Conditions

    -30 Degree C - +60 Degree C (-22 Degree F - +140 Degree F) / Less than 90% RH

  • Storage Conditions

    -30 Degree C - +60 Degree C (-22 Degree F - +140 Degree F) / Less than 90% RH

  • Ingress Protection

    IP67

  • Casing

    Metal + Plastic

  • Dimensions

    110mm x 95.5mm (4.33" x 3.76")

  • Net Weight

    0.40Kg (0.88lb)

  • UPC Code

    816116020951

About Dahua DH-IPC-HDW42A1EN-2.8MM

The IR Megapixel Fixed Eyeball camera delivers 2MP resolution with a choice of 2.8mm, 3.6mm or 6mm fixed lens. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to midsize applications.

True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

Regions of Interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.

Smart IR
The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 50m (165ft).

Image Flip
Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90 Degree increments for better video optimization.

Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust to IP67 standards, making it suitable for indoor or outdoor environments.

Supporting +/-25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 8KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Streaming
With a choice of unicast or multicast streaming, bandwidth-efficient viewing, recording and third-party video management can easily be achieved. Multiple streaming enables bandwidth-efficient viewing and recording. Depending on the resolution and frame rate selected on the first stream, the second and third stream provides a copy at a lower resolution

Smart H.264+
Delivering high quality video without straining the network, Smart H.264+ is the optimized implementation of H.264. The Smart H.264+ encoding platform includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing a savings of up to 70% of bandwidth and storage when compared with standard H.264.

Dahua DH-IPC-HDW42A1EN-2.8MM Features

  • Max 30fps@2MP (1920 1080)
  • True WDR (120dB)
  • True Day/Night
  • Fixed Lens 2.8mm
  • Smart IR 50m (165ft)
  • Outdoor Rated IP67

Key Features

  • Max 30fps@2MP (1920 1080)
  • True WDR (120dB)
  • True Day/Night
  • Fixed Lens 2.8mm
  • Smart IR 50m (165ft)
  • Outdoor Rated IP67

What's in the box:

  • Network Camera
  • Dahua 3 Year Limited Warranty
