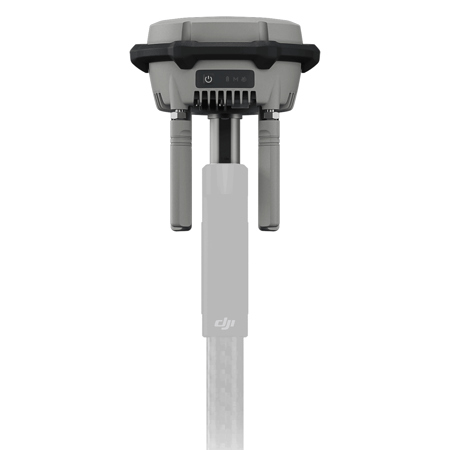

DJI D-RTK 3 AG High Precision GNSS Base Station
See all DJI items
New Arrival

DJI D-RTK 3 AG High Precision GNSS Base Station

SKU: DJIDR3AG MFR: CP.EN.00000553.02 AG
Be the first to review this itemAsk a Question
$1,379.00
OR
$115/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve centimeter-level accuracy with multi-system GNSS support for precise agricultural mapping.
  • Experience reliable performance in any weather with the durable IP67-rated base station.
  • Enjoy extended field operations with up to 7 hours of continuous battery life for your projects.
  • Rapidly recharge in just 2.5 hours, minimizing downtime and maximizing productivity.
  • Benefit from a robust 15 km effective signal range (FCC) for expansive coverage.
  • Trust DJI's advanced technology for consistent and high-precision positioning in diverse environments.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

DJI D-RTK 3 AG Specifications

  • Supports satellite systems

    GPS: L1/L2/L5
    BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
    Galileo: E1/E5a/E5b/E6
    GLONASS: G1/G2
    QZSS: L1CA/L2C/L5
    L-BAND

  • Power consumption

    7W

  • Battery capacity

    6500 mAh

  • Operating Time

    7 hours

  • Operating Frequency

    Broadcast Mode: O4: 2.4G/5.8G
    Relay Mode: Not Supported

  • Effective signal range

    FCC: 15 km
    SRRC: 12 km
    CE/JP: 8 km

  • Charging Time

    2.5 hours (30W recharge)

  • Ingress Protection Rating

    IP67

  • Positioning Accuracy

    PPP Satellite-Based Service Accuracy:
    Convergence Time: 20 mins
    Horizontal: 30 cm (RMS)
    Elevation: 40 cm (RMS)
    Network RTK Calibration:
    Horizontal: 0.8 cm + 1 ppm (RMS)
    Vertical: 1.5 cm + 1 ppm (RMS)
    1 ppm: Accuracy decreases by 1 mm for every 1 km increase in distance between the aircraft and the base station.
    For example, if the aircraft is 1 km away from the base station, the accuracy is 1.1 cm.

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Country of Origin

    China

  • Dimensions

    13.58 x 9.61 x 11.81" (345 x 244 x 300mm)

  • UPC Code

    6937224106208

About DJI D-RTK 3 AG

Enabling plug-and-play centimeter-level positioning without the need to configure coordinates. It ensures precision across the entire operation.

DJI D-RTK 3 AG Features

  • Plug-and-play centimeter level positioning, no coordinate setup needed
  • Delivers precise performance across the entire operation

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Achieve centimeter-level accuracy with multi-system GNSS support for precise agricultural mapping.
  • Experience reliable performance in any weather with the durable IP67-rated base station.
  • Enjoy extended field operations with up to 7 hours of continuous battery life for your projects.
  • Rapidly recharge in just 2.5 hours, minimizing downtime and maximizing productivity.
  • Benefit from a robust 15 km effective signal range (FCC) for expansive coverage.
  • Trust DJI's advanced technology for consistent and high-precision positioning in diverse environments.

What's in the box:

  • DJI D-RTK 3 AG High Precision GNSS Base Station
  • 4x Antenna
  • DJI 1 Year Limited Warranty
