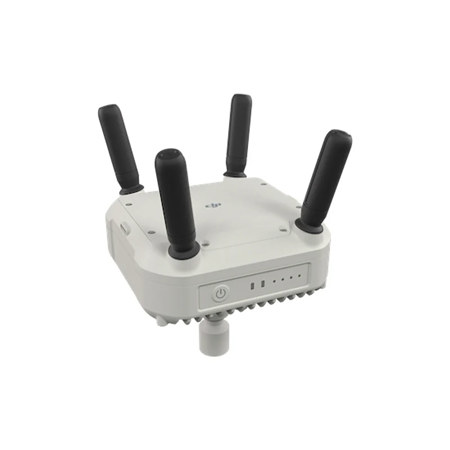

DJI O4 Relay Module
See all DJI items
New Arrival

DJI O4 Relay Module

SKU: DJI04R MFR: CP.AG.00000879.01
Be the first to review this itemAsk a Question
$1,639.00
OR
$137/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your drone's reach with an 8km max transmission distance, ensuring reliable control.
  • Experience uninterrupted operation for 5 hours, perfect for extensive agricultural tasks.
  • The IP55 rating guarantees durability and protection against dust and water splashes.
  • Enjoy broad compatibility with DJI Agras T50, T70P, T100, and T20P drones for versatile use.
  • Recharge quickly in 2.5 hours with 30W charging, minimizing downtime between flights.
  • Benefit from stable connectivity across 2.4 GHz and 5.8 GHz frequencies for optimal performance.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$199.00
2-Year Adorama Protect$369.00
3-Year Adorama Protect$549.00

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DJI O4 Relay Specifications

  • Color

    White

  • Compatibility

    DJI Agras T50
    DJI Agras T70P
    DJI Agras T100
    DJI Agras T20P

  • Operating Frequency

    2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

  • Transmitter Power (EIRP)

    2.4 GHz: <33 dBm (FCC), <20 dBm (SRRC/CE/MIC)
    5.1 GHz: <21 dBm (FCC/NCC), <23 dBm (CE)
    5.8 GHz: <33 dBm (SRRC/FCC), <14 dBm (CE)

  • Max Transmission Distance

    SRRC: 5km
    MIC/KCC/CE: 4km
    FCC: 8km
    (unobstructed, free of interference, and at a flight altitude of 2.5m)

  • Power Consumption

    FCC: 10.48W
    SRRC: 8.8W

  • Input

    2.7 V - 24 V

  • Operating Time

    5 hours

  • Charging Time

    2.5 hours (30W recharge)

  • Ingress Protection Rating

    IP55

  • Battery Capacity

    6500 mAh

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Country of Origin

    China

  • Dimensions

    Without Antenna: 4.41 x 4.41 x 2" (112 x 112 x 51mm)
    With Antenna: 4.72 x 4.41 x 3.98" (120 x 112 x 101mm)

  • Weight

    1.38 lbs (630g)

  • UPC Code

    6941565993984

About DJI O4 Relay

The DJI Relay Module enhances remote controller signal transmission by acting as a middle relay point between the RC and your DJI Agras drone. Perfect for hilly terrain, large properties, and situations with line-of-sight interference.

DJI O4 Relay Features

  • Enhances signal stability across long-range operations
  • Maintains reliable communication in obstructed or uneven terrain
  • Quick and easy to mount for fast field deployment
  • Critical for dependable spraying and mapping missions
  • Durable, lightweight, and built for all-weather farm conditions

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your drone's reach with an 8km max transmission distance, ensuring reliable control.
  • Experience uninterrupted operation for 5 hours, perfect for extensive agricultural tasks.
  • The IP55 rating guarantees durability and protection against dust and water splashes.
  • Enjoy broad compatibility with DJI Agras T50, T70P, T100, and T20P drones for versatile use.
  • Recharge quickly in 2.5 hours with 30W charging, minimizing downtime between flights.
  • Benefit from stable connectivity across 2.4 GHz and 5.8 GHz frequencies for optimal performance.

What's in the box:

  • DJI O4 Relay Module
  • 4x Antenna
  • (Extension Rod Not Included)
  • DJI 1 Year Limited Warranty
