DJI D-RTK 3 High Precision GNSS Multifunctional Station

SKU: DJI00000551 MFR: CP.EN.00000551.01
Earn VIP Reward Points

Key Features

  • Achieve centimeter-level accuracy with the D-RTK 3 GNSS for precise drone positioning.
  • Use as a base, relay, or rover station for versatile DJI drone operations in any scenario.
  • Enjoy extended operation with a robust battery, offering up to 10 hours as a rover station.
  • Benefit from wide compatibility, supporting DJI Matrice, Mavic 3 Enterprise, Inspire 3 series.
  • Ensure reliable data transmission with O4 Enterprise, extending your drone's flight range.
  • With IP67 rating, the durable D-RTK 3 withstands tough conditions, ensuring reliable performance.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$259.00

2 Year

$479.00

3 Year

$699.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DJI D-RTK 3 Specifications

General

General

Jump to...
  • Compatibility

    Base Station Mode:
    Enterprise:
    DJI Matrice 4 series
    DJI Matrice 3D/3TD
    DJI Matrice 300/350 RTK
    DJI Matrice 30 Series
    DJI Mavic 3 Enterprise Series

    Agriculture:
    DJI T60
    DJI T50/T25
    DJI T40/T20P
    DJI FlyCart 30

    Professional Filmmaking: DJI Inspire 3

    Relay Station Mode: Supports DJI Matrice 4E/Matrice 4T

    Rover Station Mode: Supports Bluetooth 5.1, compatible with Android 10 and above

GNSS Receiver

Jump to...
  • GNSS Frequency

    GPS: L1C/A, L2C, L5
    BDS: B1I, B2I, B3I, B1C, B2a, B2b
    GALILEO: E1, E5a, E5b, E6
    GLONASS: L1, L2
    QZSS: L1C/A, L2C, L5
    L-Band

  • System Accuracy

    Base Station Mode (Broadcast Mode) and Relay Station Mode

    Base Station Accuracy:
    Single Point Accuracy (Uncalibrated):
    Horizontal: 4.92' (1.5m) (RMS)
    Vertical: 9.84' (3m) (RMS)

    Satellite-Based Differential Accuracy:
    Convergence Time: 20 mins
    Horizontal: 11.81" (30cm) (RMS)
    Vertical: 15.74" (40cm) (RMS)

  • System Accuracy (Contd.)

    Network RTK Calibration:
    Horizontal: 0.39" (1cm) (RMS) + 1 ppm
    Vertical: 1.18" (3cm) (RMS) + 1 ppm

    Rover Station Mode:
    RTK Accuracy (Fixed Survey):
    Horizontal: 0.31" (0.8cm) (RMS) + 1 ppm
    Vertical: 0.59" (1.5cm) (RMS) + 1 ppm

    RTK Accuracy (Tilt Survey):
    Angle Range: 0 Degree to 60 Degree
    Horizontal: 8 mm + 0.7 mm/ Degree tilt (accuracy <2 cm within 30 Degree )

  • Satellite Precise Point Positioning

    Supported Frequencies: BDS B2b, GALILEO E6, L-BAND
    Convergence Time: 20 mins
    Horizontal: 11.81" (30cm) (RMS)
    Vertical: 15.74" (40cm) (RMS)

  • Differential Data Transmission Format

    When used as a base station or relay station, records RTCM 3.2 raw observation data in DAT format

    In rover station mode or in calibration mode for base and relay stations:
    Supports RTCM v3.0, v3.1, v3.2, v3.3, MSM4, MSM5, MSM6, MSM7 protocols
    It is recommended to use receivers that support four or more GNSS systems

  • Initialization Reliability

    >99.9%

Video Transmission

Jump to...
  • Video Transmission System

    O4 Enterprise

  • Operating Frequency

    Relay Station Mode:
    O4: 2.4 GHz/5.2 GHz/5.8 GHz

    Broadcast mode:
    O4: 2.4 GHz/5.8 GHz

    Rover Station Mode:
    BLE: 2.4 GHz

  • Transmitter Power (EIRP)

    2.4000 GHz to 2.4835 GHz:
    <33 dBm (FCC)
    <20 dBm (CE / SRRC / MIC)

    5.150 GHz to 5.250 GHz:
    <23 dBm (CE / FCC)

    5.725 GHz to 5.850 GHz:
    <33 dBm (FCC)
    <30 dBm (SRRC)
    <14 dBm (CE)

  • Bluetooth

    Protocol: Bluetooth 5.1
    Frequency: 2.400 GHz to 2.4835 GHz
    Transmitter Power (EIRP): <10 dBm

  • Max Transmission Distance

    Base Station Mode:
    Between D-RTK 3 and the aircraft:
    FCC: 9.32 miles (15km)
    SRRC: 7.45 miles (12km)
    CE/JP: 4.97 miles (8km)

    Rover Station Mode:
    Between D-RTK 3 and mobile devices: 98.42' (30m)

  • Max Transmission Distance (Contd.)

    Relay Station Mode:
    FCC
    Between aircraft and relay station: 15.53 miles (25km)
    Between relay station and remote controller: 0.62 miles (1km)

    SRRC
    Between aircraft and relay station: 7.45 miles (12km)
    Between relay station the remote controller: 0.62 miles (1km)

    CE
    Between aircraft and relay station: 6.21 miles (10km)
    Between relay station and remote controller: 984.25' (300m)

  • Max Transmission Distance (Contd..)

    Strong interference: City centers, approx. 0.93 to 3.10 miles (1.5 to 5km)
    Medium interference: Suburban areas, approx. 3.10 to 9.32 miles (5 to 15km)
    Micro interference: Remote areas/seasides, approx. 9.32 to 15.53 miles (15 to 25km)
    Low Interference and Obstructed by Buildings: approx. 0 to 0.31 miles (0 to 0.5km)
    Low Interference and Obstructed by Trees: approx. 0.31 to 1.86 miles (0.5 to 3km)

  • Antenna

    4x OcuSync 4 directional antennas, 2T4R

Electrical Properties

Jump to...
  • Power

    Relay Station: 14.5 W (max power consumption without heating; max 36.5 W with heating)
    Base Station: 7 W
    Rover Station: 6.2 W

  • Supported Power Adapter

    USB PD 3.0 protocol, output voltage 9V to 15V adapter (e.g., DJI 65W Portable Charger)

  • Power Output Port

    USB Type-C

  • Operating Time

    Relay Station: 4 hrs
    Base Station: 7 hrs
    Rover Station: 10 hrs

Battery

Jump to...
  • Battery Capacity

    6500 mAh
    Energy: 46.8 Wh

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Operating Temperature

    -4 Degree F to 131 Degree F (-20 Degree C to 55 Degree C)

  • Altitude

    3.72 miles (6km)

  • Protection Rating

    IP67

  • Drop Resistance

    78.74" (2m) drop with pole

  • Dimensions

    6.41 x 3.50" (16.3 x 8.9cm)

  • Weight

    Approx. 2.78 lbs (1.26kg)

  • UPC Code

    190021130241

About DJI D-RTK 3

Where precision meets versatility, the DJI D-RTK 3 High Precision GNSS Multifunctional Station stands as a cutting-edge solution for advanced aerial surveying and drone operations. This innovative station integrates high-performance antennas and receiver modules, adept at tracking and resolving data from major global satellite navigation systems. It supports multiple data transmission links, making it an indispensable tool for drone operators seeking centimeter-level positioning accuracy.

In Base Station Mode, the D-RTK 3 facilitates simultaneous operation of multiple drone models, including the new O4 Enterprise video transmission. Equipped with four external directional antennas, it enables video transmission up to 15 kilometers in base station broadcast mode, ensuring stable signals in all directions. This setup allows multiple drones to connect effortlessly, accessing precise positioning without additional configuration.

Switch to Relay Station Mode to overcome signal obstructions in challenging environments like urban areas or valleys. By positioning the D-RTK 3 at an elevated location, operators can enhance video transmission distance and extend the operational range of the Matrice 4 series up to 25 kilometers. The system supports obstruction sensing, allowing real-time calculations of signal quality and enabling operators to adjust drone positions for optimal communication.

In Rover Station Mode, the D-RTK 3 excels in collecting control point coordinates, significantly enhancing UAV aerial survey accuracy. Its air dielectric antenna with a filtering design effectively tracks low-elevation satellites, maintaining antenna phase-center accuracy within millimeter levels. This ensures strong resistance to multipath interference, delivering high-precision positioning even in complex environments.

The D-RTK 3's built-in receiver module can receive satellite data from five major satellite systems across nineteen frequency points, offering more accurate and stable positioning results compared to network RTK, especially under ionospheric effects. Utilizing DJI's proprietary Standalone Precise Point Positioning (PPP) solution, it provides satellite-based auto convergence, achieving decimeter-level positioning even in challenging network conditions.

For network high-precision calibration, the D-RTK 3 can receive RTCM data, automatically obtaining coordinates and correcting positions through the network. This allows for centimeter-level precision positioning outdoors without pre-measuring the setup point location.

The new DJI Enterprise app enhances the D-RTK 3's capabilities, supporting Ground Control Point (GCP) setup and tilt compensation. This app, compatible with Android devices, allows for efficient high-precision surveying workflows when used with DJI drones supporting RTK. The built-in high-precision inertial measurement unit enables control point measurement without the need for a tripod, improving operational efficiency in complex environments.

Moreover, the app includes a mainstream projection coordinate database for direct output of planar coordinates and is compatible with DJI Terra for efficient data processing. Rover measurement results can be exported as control point files and imported into DJI Terra effortlessly, thanks to powerful algorithms that generate high-precision results. Additionally, the D-RTK 3 supports local PPK, recording raw satellite observations for seamless integration with DJI Terra version 4.4 or above, facilitating one-click local PPK calculations.

The DJI D-RTK 3 High Precision GNSS Multifunctional Station is a comprehensive solution for professionals seeking unparalleled precision and efficiency in aerial surveying and drone operations.

DJI D-RTK 3 Features

  • Supports multiple GNSS systems for high-precision positioning
  • Base Station Mode enables simultaneous operation of multiple drones
  • Relay Mode extends operational range up to 25km
  • Rover Mode improves aerial survey accuracy and control point collection
  • Filters and tracks low-elevation satellites for precise positioning
  • Integrated DJI Enterprise app for efficient ground control point setup
  • Compatible with DJI Terra for easy data processing and PPK support
  • Standalone PPP provides decimeter-level positioning without network

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve centimeter-level accuracy with the D-RTK 3 GNSS for precise drone positioning.
  • Use as a base, relay, or rover station for versatile DJI drone operations in any scenario.
  • Enjoy extended operation with a robust battery, offering up to 10 hours as a rover station.
  • Benefit from wide compatibility, supporting DJI Matrice, Mavic 3 Enterprise, Inspire 3 series.
  • Ensure reliable data transmission with O4 Enterprise, extending your drone's flight range.
  • With IP67 rating, the durable D-RTK 3 withstands tough conditions, ensuring reliable performance.

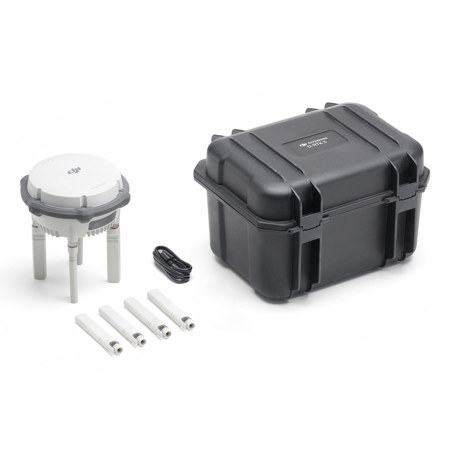

What's in the box:

  • DJI D-RTK 3 High Precision GNSS Multifunctional Station
  • 4x Spare OcuSync Directional Antennas
  • USB-A to USB-C Cable
  • Battery
  • DJI 1 Year Limited Warranty
