DJI 2.4G Bluetooth Data Link for iPad and PC Ground Station

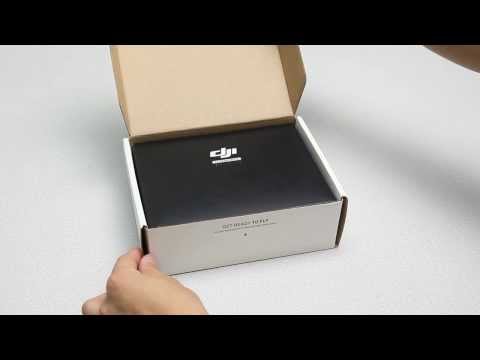

DJI Bluetooth Data Link Video #1
DJI Bluetooth Data Link: Picture 1 thumbnail
See all DJI items

DJI 2.4G Bluetooth Data Link for iPad and PC Ground Station

SKU: DJI24DL

This item is no longer available.

See all Used options (1) from $41
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Does the PC version work and will it continue to work in the foreseeable future. Bits and pieces of stories about google's API license running out soon causing the app to no longer function. My Lightbridge 2 does not have a 1/4 of these features? ThanksGerald W : It works very well for me. The software hasn't been updated for quite a while but it works flawlessly.

Reviews about this item

Review Summary

2016-02-09T12:31:17

Rated 5 out of 5

All I can say is WOW!!!!

All I can say is WOW!!!! The unit works flawlessly and does exactly what it is supposed to do. Great product, I highly recommend.

Gerald W.

DJI Bluetooth Data Link Specifications

  • Compatibility

    Supported Flight Controllers: A2, WKM, Naza-M, Naza-M V2
    Supported Mobile Devices: Apple iPad with Bluetooth 4.0 (such as iPad3, iPad4, iPad Mini)
    Mobile App Requirements: iOS 6 or later
    Included Software Requirements: Windows

  • Frequency Band

    2.4GHz (2400MHz - 2483MHz)

  • Wireless Range

    Indoor / Urban Environment: = 1148' (350 m) Outdoor Line-of-sight: = 1.2 miles (2 km)

  • RF Data Rate

    1536kbps

  • Serial Data Rate

    115200bps

  • Transmit Power

    = 125mW

  • Receiver Sensitivity (1% PER)

    -94dBmW

  • Current

    Transmitting Signal: 0.18 A at 12.5 V
    Receiving Signal: 0.30 A at 6V

  • Operating Temperature

    14 - 140 deg.F (-10 - 60 deg.C)

  • Ground End: Connectors

    USB Type A Female (for PC connection)
    BMU Module Port
    DC Power Connector

  • Ground End: Antenna Type

    SMA

  • Ground End: Power Consumption

    = 2.3W

  • Ground End: Voltage

    9.9 - 25.2V

  • Air End: Connectors

    CAN-Bus Port

  • Air End: Antenna Type

    Integrated

  • Air End: Power Consumption

    = 2.3W

  • Air End: Voltage

    6V

  • Dimensions

    Ground End: 2.9 x 1.9 x 0.7" / 73.66 x 48.26 x 17.78mm (without antenna)
    Air End: 2 x 1.4 x 0.4" / 50.80 x 35.56 x 10.16mm (without antenna)

  • Weight

    Ground End: 3.3oz / 93.55g
    Air End: 1.1oz / 31.18g

  • UPC Code

    6958265107085

About DJI Bluetooth Data Link

FEATURED REVIEWS

All I can say is WOW!!!!

By Gerald W.

All I can say is WOW!!!! The unit works flawlessly and does exactly what it is supposed to do. Great product, I highly recommend.

The DJI 2.4GHz Datalink is designed for use with the DJI Ground Station iPad app or PC programme. It provides a connection between the Ground system and the Air system using DJI bidirectional data communication modules, allowing users to fly along pre-set waypoints.

• Friendly interface design
• Joystick control on touch screen
• Single waypoint function, click desired point and go
• Waypoints function, edit a routine and go
• Flight route template
• Editable Home point & auto Go Home supported
• One key takeoff & landing
• Flight simulator supported
• Customized joystick mode supported
• Accurate flight time monitoring
• Three map orientations setting
• Voice guidance function
• Real-time alarming function
• Routes saving and reloading supported
• Chinese and English UI supported
• Cloud Storage supported

Flight control systems supported
• 2.4G Bluetooth Datalink: A2, ACE ONE, WKM, NAZA-M, NAZA-M V2, Phantom 2.
• iPad Ground Station: WKM, NAZA-M, NAZA-M V2, Phantom 2.

Note
• All the firmware of the flight control systems should be upgraded to the latest version.
• The firmware of NAZA-M and NAZA-M V2 should be upgraded to version 4.00, which is coming soon.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • DJI 2.4G Bluetooth Data Link
  • Ground Station Software CD for Windows
  • Data-link Air End
  • Data-link Ground End
  • BTU Module
  • SMA Antenna
  • USB Cable
  • DC Power Cable
  • CAN-Bus Cable
  • DJI 1 Year Warranty
