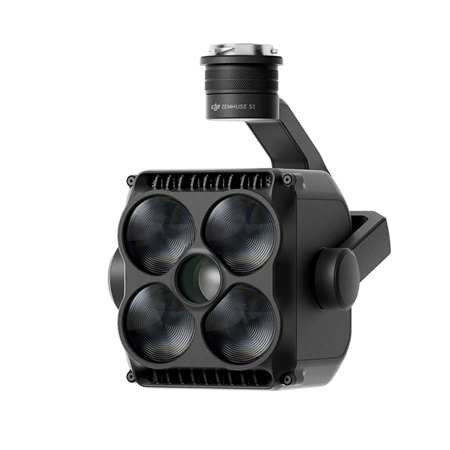

DJI Zenmuse S1 Spotlight for Matrice 350 RTK and 300 RTK Drone

DJI's First Spotlight for Multi-Payload Drone Platforms - Zenmuse S1 Light Up The Night
Zenmuse S1 is DJI's first spotlight designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.

Multiple Lighting Modes

Low Beam Mode
Provides a 15 Degree field of view (FOV) within a distance of 150 meters, covering the illumination range of a camera at 5x zoom or above. This mode is suitable for most short-distance search and inspection needs.

High Beam Mode
Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4 Degree field of view (FOV) at a distance of 300 meters. It covers the illumination range of a camera at 15x zoom or above, enhancing efficiency in emergency rescue and public safety operations.

Both On Mode
Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. This mode offers maximum illumination coverage for comprehensive situational awareness.

Strobe Mode
Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios.

Brightness Meets Energy Efficiency
Zenmuse S1 delivers a maximum central illuminance of 35 lux at 100 meters, providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 17 W, reducing the power load on the drone and helping to maintain the flight time.

Reliable and Intuitive

Payload Protection
Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.

Burn Protection
Zenmuse S1 features a plastic casing with a contact surface temperature that does not exceed 50 Degree C (122 Degree F), effectively preventing burn risks.

Eye Protection
When the drone is not in flight, Zenmuse S1 automatically dims the light to 40% of its maximum brightness to prevent glare and protect the operator's vision.

Efficient Remote Controller Shortcuts
Zenmuse V1 supports customizable shortcuts of the remote controller, allowing buttons to be set for brightness adjustment, turning the light on/off, or lighting mode changes. This makes operation convenient and intuitive, significantly enhancing the user experience.

Strong Environmental Adaptability
With an IP54 rating for dust and water resistance, Zenmuse S1 can operate in ambient temperatures ranging from -20 Degree to 40 Degree C (-4 Degree to 104 Degree F), making it adaptable to various operating environments.

Flexible Mounting, Lightweight Build
Zenmuse S1 can be mounted to any gimbal connector of the single downward gimbal, dual downward gimbals, or the single upward gimbal, accommodating various operational needs. Weighing only 0.76 kg, it is compact and easy to carry.

Mobile SDK
With Mobile SDK, users can quickly integrate Zenmuse S1's features into their self-developed mobile apps, unlocking the capabilities of your drone platform to meet specialized needs.
