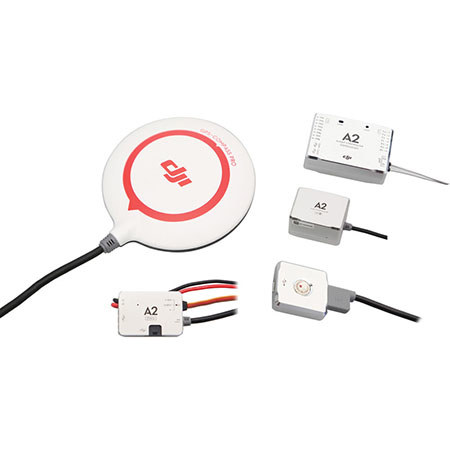

DJI A2 Flight Controller System, Quad/Hex/Octo Rotor, 400Hz ESC Output, 12 Output Channels, Built-in 2.4GHz DR16 Receiver

The DJI A2 is a complete flight control system for various multi-rotor platforms, for commercial and industrial AP applications. It opens an unprecedented era of precise positioning and perfect flight control in harsh environments for flight control systems. Its high performance antenna, low noise anti-interference front-end RF design, accurate position and speed calculating, represent comprehensive technological breakthroughs. These combined features make the positioning performance of the GPS Pro near perfection; with higher accuracy performance, larger measuring range and a unique damping design and calibration algorithm, the IMU is able to provide stable output even in high vibration and large movement environments.

The built-in receiver system directly supports the popular transmitters and it also supports a variety of external receivers. Combined with abundant output interfaces and flexible configuration, it makes the flight controller competent for complex control and airborne equipment operation; the new dual CAN-Bus design greatly improves the data throughput and stability of the system. Based on the technology and design philosophy of DJI's Ace series of high-performance controllers, the A2 offers you a brand new flight experience. The A2 adopts a full metal case design and utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renowned flight algorithm in flight control and UAV field.

9 Types Of Multi-Rotor And A Customized Motor Mixer
It's a UAS that's targeted at commercial and industrial multi-rotor platforms with simple configuration, easy installation and stable performance. It also supports customized motor mixing, which greatly meets the demands of particular users. The A2 supports 9 types of traditional motor mixer: Quad I, Quad x, Hex I, Hex V, Hex Y, Hex IY, Oct x, Oct I, Oct V.

Intelligent Orientation Control (IOC)
Usually, the forward direction of a flying multi-rotor is the same as the nose direction. By using Intelligent Orientation Control (IOC), wherever the nose points, the forward direction has nothing to do with nose direction.

Point of Interest (POI)
A2 has a POI function: Point of Interest. When the GPS signal is good, users can record the current position of the aircraft as a point of interest by a preset switch on the remote control. The aircraft can achieve a circling flight around the point of interest with the nose pointing at the POI in an area of 5 meters to 500 meters radius, when the roll command is given. This function is easy to set and simple to operate, it is suitable for all-round shooting of a fixed scenic spot.

Intelligent Landing Gear Function
Once you enabled the Intelligent Landing Gear function in the assistant software, the landing gear is default at the Lower position when the aircraft is on the ground; and the system will lower the landing gear in emergency, motor failure or auto landing, to protect the aircraft and gimbals; you can control to lower or retract the landing gear by a switch when the aircraft altitude is over 5m from the ground.

Auto Return-To-Home /One-Key Go-Home
If the multicolor and its controller disconnects during flight, the system's failsafe protection will come to the rescue and if the signal is good enough, the multicolor will return to home and land automatically. You can also setup a One Key Go Home function to activate this feature manually.

Multi-Rotor One-Motor fail Protection
This function means that when the aircraft is in attitude or GPS attitude mode and one of the motors stops, the aircraft will retain good attitude and rotate around the frame arm with the stopped motor. In this condition, the aircraft is still under control and returns home safely and while greatly reducing the risk of a crash.
