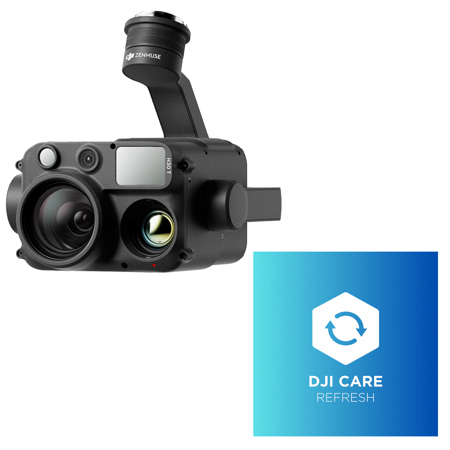

DJI Zenmuse H30T Thermal Gimbal Camera with Care Enterprise Plus Auto-Activated 1-Year Plan

SKU: DJICB202722 MFR: CB.202501202722
Earn VIP Reward Points

Key Features

  • Capture crucial thermal data with the Zenmuse H30T, spotting anomalies with its thermal imager.
  • Perform detailed inspections using the H30T's impressive 400x zoom, ensuring no detail is missed.
  • The H30T's wide-angle camera delivers crisp 48MP images, perfect for situational awareness.
  • Achieve superior stability with the 3-axis gimbal, ensuring smooth footage even in windy conditions.
  • Enhance night operations with the H30T's night scene mode, capturing clear visuals in low light.
  • The Zenmuse H30T's laser rangefinder accurately measures distances up to 9842.5', improving safety.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-07-20T20:37:18

Rated 5 out of 5

Awesome!

Great! I love this product

Andres D.

DJI Zenmuse H30T Specifications

Gimbal
  • Stabilization System

    3-axis (tilt, roll, pan)

  • Angular Vibration Range

    Hover: +/-0.002 Degree
    Flight: +/-0.004 Degree

  • Mounting

    Detachable DJI SKYPORT

  • Mechanical Range

    Tilt: -132.5 Degree to +73 Degree
    Roll: +/-60 Degree
    Pan: +/-328 Degree
    (Structural limit, not controllable range)

  • Controllable Range

    Tilt: -120 Degree to +60 Degree
    Pan: +/-320 Degree

  • Operation Mode

    Follow/Free/Re-center

  • Supported Aircraft

    Matrice 300 RTK (requires DJI RC Plus)
    Matrice 350 RTK

Zoom Camera

Jump to...
  • Sensor

    1/1.8" CMOS, Effective Pixels: 40 MP

  • Lens

    Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
    Aperture: f/1.6-f/5.2
    DFOV: 66.7 Degree -2.9 Degree

  • Focus Mode

    MF, AFC, AFS

  • Exposure Mode

    Manual, Auto

  • Exposure Compensation

    +/- 3.0 (1/3 increments)

  • Metering Mode

    Spot Metering, Average Metering

  • AE Lock

    Supported

  • Electronic Shutter Speed

    1/8000-2 s

  • ISO Range

    Single Shot: 100-25600
    Night Scene: 100-819200

  • Video Resolution

    Single Shot: 3840x2160@30fps, 1920x1080@30fps
    Night Scene: 1920x1080@25fps, 1920x1080@15fps, 1920x1080@5fps

  • Video Format

    MP4

  • Video Subtitles

    Supported

  • Video Codec and Bit Rate Strategy

    H.264, H.265
    CBR, VBR

  • Max Photo Size

    7328x5496, 3664x2748

  • Photo Format

    JPG

Wide-Angle Camera

Jump to...
  • Sensor

    1/1.3" CMOS, Effective Pixels: 48 MP

  • Lens

    Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
    Aperture: f/1.7
    DFOV: 82.1 Degree

  • Focus Mode

    MF, AFC, AFS

  • Exposure Mode

    Manual, Auto

  • Exposure Compensation

    +/- 3.0 (1/3 increments)

  • Metering Mode

    Spot Metering, Average Metering

  • AE Lock

    Supported

  • Electronic Shutter Speed

    1/8000-2 s

  • ISO Range

    Single Shot: 100-25600
    Night Scene: 100-409600

  • Video Resolution

    Single Shot: 3840x2160@30fps, 1920x1080@30fps
    Night Scene: 1920x1080@25fps, 1920x1080@15fps, 1920x1080@5fps

  • Video Format

    MP4

  • Video Subtitles

    Supported

  • Video Codec and Bit Rate Strategy

    H.264, H.265
    CBR, VBR

  • Max Photo Size

    8064x6048, 4032x3024

  • Photo Format

    JPG

Infrared Thermal Camera

Jump to...
  • Thermal Imager

    Uncooled VOx Microbolometer

  • Lens

    Focal Length: 24mm (equivalent focal length: 52mm)
    Aperture: f/0.95
    DFOV: 45.2 Degree

  • Digital Zoom Equivalent

    32x

  • Video Resolution

    1280 x1024@30fps

  • Video Format

    MP4

  • Video Subtitles

    Supported

  • Video Codec and Bit Rate Strategy

    H264, H265
    CBR, VBR

  • Photo Resolution

    1280x1024

  • Photo Format

    R-JPEG

  • Pixel Pitch

    12 microm

  • Spectral Band

    8-14 microm

  • Noise Equivalent Temperature Difference

    <= 50 mk@f/1.0

  • Temperature Measurement Method

    Spot Measurement, Area Measurement, Center Point Temperature Measurement

  • Temperature Measurement Range

    High Gain: -20 Degree to 150 Degree C (-4 Degree to 302 Degree F), -20 Degree to 450 Degree C (-4 Degree to 842 Degree F) (With Infrared Density Filter)
    Low Gain: 0 Degree to 600 Degree C (32 Degree to 1112 Degree F), 0 Degree to 1600 Degree C (32 Degree to 2912 Degree F) (With Infrared Density Filter)

  • Temperature Alert

    Supported

  • Sun Burn Protection

    Supported

  • FFC

    Auto, Manual

  • Palette

    White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron

Laser Range Finder

Jump to...
  • Wavelength

    905 nm

  • Measurement Range

    9.8 - 9842.5' (3 - 3000m)
    Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m

  • Measurement Accuracy

    <= 500m: +/-(0.2 m+measurement distance x0.15%)
    > 500m: +/-1.0 m

  • Laser Spot Size

    @100m: approx. 50 x 450mm
    @1000m: approx. 450 x 4500mm

  • Safety Regulation Level

    Class 1

  • Accessible Emission Limit (AEL)

    260 nJ

  • Reference Aperture

    18 mm

  • Max Laser Pulse Emission Power

    52 W (Within 5 Nanoseconds)

NIR Auxiliary Light

Jump to...
  • Wavelength

    850 nm

  • FOV

    4.6 +/-0.6 Degree (Round)

  • Safety Regulation Level

    Class 1

  • Illumination Range

    @100m: Approx. 8m diameter circle

Special Features

Jump to...
  • Hybrid Optical Zoom

    34x

  • Max Zoom

    400x

  • Link Zoom

    Supported

  • Click to Aim

    Supported

  • High-Res Grid Photo

    Supported

  • Night Scene

    Supported

  • Timestamp

    Supported

  • Smart Capture

    Supported

  • Video Pre-Recording

    Supported

  • UHR Infrared Image

    Supported

Data Storage

Jump to...
  • Supported microSD Cards

    U3/Class10/V30 or above is required, or use a memory card from the recommended list.

  • Supported File System

    exFAT

  • Recommended microSD Cards

    SanDisk Extreme Pro V30 A1 32GB microSDHC
    Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
    Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC

Post-Processing Software

Jump to...
  • Mapping Software

    DJI Terra, DJI FlightHub 2

  • Infrared Analysis Software

    DJI Thermal Analysis Tool 3

  • Power

    28 W

Environment

Jump to...
  • Ingress Protection Rating

    IP54

  • Operating Temperature

    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

Physical

Jump to...
  • Dimensions (L x W x H)

    6.7 x 5.7 x 6.5" (170 x 145 x 165mm)

  • Weight

    32.4 oz (920g) (+/- 5g)

Designed For Use With:

  • DJI Matrice 300

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About DJI Zenmuse H30T

FEATURED REVIEWS

Awesome!

By Andres D.

Great! I love this product

If you're seeking a cutting-edge solution for versatile aerial operations, the DJI Zenmuse H30T Thermal Gimbal Camera with Care Enterprise Plus Auto-Activated 1-Year Plan is an exceptional choice. This all-weather, multi-sensor flagship integrates five advanced modules: a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. These components, combined with state-of-the-art intelligent algorithms, redefine perception and imaging standards, overcoming the limitations of both day and night vision. This makes the Zenmuse H30T ideal for diverse applications, including public safety, energy inspection, water conservation, and forestry.

The Zenmuse H30T's zoom camera is a standout feature, offering a high-resolution 40MP sensor with up to 34x optical zoom and an astounding 400x digital zoom. This capability allows operators to observe subjects at greater distances while capturing intricate details. Enhanced by DJI's latest image stabilization algorithm, the camera delivers stable and clear imagery, crucial for detailed power line inspections and other precision tasks.

Equipped with a laser range finder, the Zenmuse H30T can measure distances up to 3000 meters, providing accurate position information, including linear distance, altitude, and GPS coordinates. This range is 2.5 times greater than previous models, significantly enhancing operational capabilities.

For nighttime operations, the Zenmuse H30T supports full-color night vision. Both the zoom and wide-angle cameras can switch to Night Scene mode in low-light conditions, improving live view and recording quality. The camera also supports black and white night vision with NIR illumination, enhancing contrast and making it easier to locate subjects during covert night surveillance and search-and-rescue missions.

The infrared thermal camera on the Zenmuse H30T boasts a resolution of 1280x1024, four times that of previous generations, with up to 32x digital zoom. This allows for comprehensive scene overviews and detailed zoom-ins on specific areas. The UHR (Ultra-High Resolution) Infrared Image function ensures clarity at higher zoom levels. Additionally, the camera supports three infrared gain modes, including a new High-Res mode for observing objects with small temperature differences, making it invaluable for security and emergency operations.

The Zenmuse H30T's Link Zoom feature allows simultaneous zooming of visual and infrared cameras, maintaining the same viewpoint for efficient subject location. The infrared thermal camera can measure temperatures ranging from -20 Degree C to 1600 Degree C (-4 Degree F to 2912 Degree F), making it particularly useful for firefighting and high-temperature operations.

Smart Capture mode enhances imaging by automatically adjusting to ambient light and dynamic range, while the Electronic Dehazing function improves clarity in smoggy or humid conditions. With an IP54 dust and water resistance rating and an operating temperature range of -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F), the Zenmuse H30T is built for reliable performance in harsh environments.

The Zenmuse H30T supports pre-recording, retaining footage from 10, 15, or 30 seconds before formal recording starts, ensuring comprehensive documentation. Security features include AES-256 encryption for data transmission and one-click log clearance to prevent information leaks. Cloud information sync via DJI FlightHub 2 enables collaborative ground and air operations, keeping operators updated with live views.

With DJI Enterprise flight platforms, the Zenmuse H30T is suited for industries such as public safety, electricity, oil and gas, water conservation, and forestry. The included DJI Care Enterprise Plus plan offers comprehensive protection, including unlimited replacements or free repairs for accidental damage, providing peace of mind for your DJI fleet.

DJI Zenmuse H30T Features

  • Up to 34x Optical Zoom and 400x Digital Zoom
  • More Stable Imagery from the Zoom Camera
  • Max 3000m Laser Range Finder
  • 1280x1024 Infrared Resolution
  • High-Res Mode for Precise Observation
  • Visual and IR Cameras Simultaneous Zoom
  • Supports Full-Color Night Vision
  • Supports Black and White Night Vision and NIR Illumination
  • Smart Capture for Improved Imaging
  • Electronic Dehazing
  • IP54 Ingress Protection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture crucial thermal data with the Zenmuse H30T, spotting anomalies with its thermal imager.
  • Perform detailed inspections using the H30T's impressive 400x zoom, ensuring no detail is missed.
  • The H30T's wide-angle camera delivers crisp 48MP images, perfect for situational awareness.
  • Achieve superior stability with the 3-axis gimbal, ensuring smooth footage even in windy conditions.
  • Enhance night operations with the H30T's night scene mode, capturing clear visuals in low light.
  • The Zenmuse H30T's laser rangefinder accurately measures distances up to 9842.5', improving safety.

What's in the box:

  • DJI Zenmuse H30T Gimbal Camera
  • Care Enterprise Plus Auto-Activated 1-Year Plan
  • 64GB MicroSD Card
  • Lens Cap
  • Storage Case
  • Lens Cleaning Cloth
  • DJI 1 Year Limited Warranty
