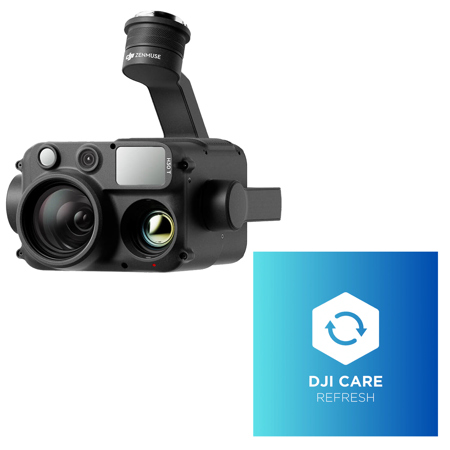

DJI Zenmuse H30T Thermal Gimbal Camera with Care Enterprise Basic Auto-Activated 2-Year Plan

SKU: DJICB202726

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What are the key features of the DJI Zenmuse H30T Thermal Gimbal Camera?

The DJI Zenmuse H30T features a multi-sensor system including a wide-angle camera, zoom camera, infrared thermal camera, laser range finder, and NIR auxiliary light. It offers up to 34x optical zoom, enhanced night vision, and a robust IP54 dust and water resistance rating.

How does the Zenmuse H30T improve night vision capabilities?

The Zenmuse H30T enhances night vision with full-color night vision and black-and-white modes, supported by NIR illumination. This allows for improved visibility and operational efficiency in low-light conditions.

Can the Zenmuse H30T measure high temperatures?

Yes, the infrared thermal camera on the Zenmuse H30T can measure temperatures ranging from -20°C to 1600°C (-4°F to 2912°F), making it suitable for high-temperature operations like firefighting.

What is the benefit of the Link Zoom feature on the Zenmuse H30T?

The Link Zoom feature allows for simultaneous scaling of visual and infrared images, maintaining the same viewpoint and aiding in faster subject location and analysis.

Reviews about this item

Review Summary

2024-07-20T20:37:18

Rated 5 out of 5

Awesome!

Great! I love this product

Andres D.

DJI Zenmuse H30T Specifications

Gimbal
  • Stabilization System

    3-axis (tilt, roll, pan)

  • Angular Vibration Range

    Hover: +/-0.002 Degree
    Flight: +/-0.004 Degree

  • Mounting

    Detachable DJI SKYPORT

  • Mechanical Range

    Tilt: -132.5 Degree to +73 Degree
    Roll: +/-60 Degree
    Pan: +/-328 Degree
    (Structural limit, not controllable range)

  • Controllable Range

    Tilt: -120 Degree to +60 Degree
    Pan: +/-320 Degree

  • Operation Mode

    Follow/Free/Re-center

  • Supported Aircraft

    Matrice 300 RTK (requires DJI RC Plus)
    Matrice 350 RTK

Zoom Camera

Jump to...
  • Sensor

    1/1.8" CMOS, Effective Pixels: 40 MP

  • Lens

    Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
    Aperture: f/1.6-f/5.2
    DFOV: 66.7 Degree -2.9 Degree

  • Focus Mode

    MF, AFC, AFS

  • Exposure Mode

    Manual, Auto

  • Exposure Compensation

    +/- 3.0 (1/3 increments)

  • Metering Mode

    Spot Metering, Average Metering

  • AE Lock

    Supported

  • Electronic Shutter Speed

    1/8000-2 s

  • ISO Range

    Single Shot: 100-25600
    Night Scene: 100-819200

  • Video Resolution

    Single Shot: 3840x2160@30fps, 1920x1080@30fps
    Night Scene: 1920x1080@25fps, 1920x1080@15fps, 1920x1080@5fps

  • Video Format

    MP4

  • Video Subtitles

    Supported

  • Video Codec and Bit Rate Strategy

    H.264, H.265
    CBR, VBR

  • Max Photo Size

    7328x5496, 3664x2748

  • Photo Format

    JPG

Wide-Angle Camera

Jump to...
  • Sensor

    1/1.3" CMOS, Effective Pixels: 48 MP

  • Lens

    Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
    Aperture: f/1.7
    DFOV: 82.1 Degree

  • Focus Mode

    MF, AFC, AFS

  • Exposure Mode

    Manual, Auto

  • Exposure Compensation

    +/- 3.0 (1/3 increments)

  • Metering Mode

    Spot Metering, Average Metering

  • AE Lock

    Supported

  • Electronic Shutter Speed

    1/8000-2 s

  • ISO Range

    Single Shot: 100-25600
    Night Scene: 100-409600

  • Video Resolution

    Single Shot: 3840x2160@30fps, 1920x1080@30fps
    Night Scene: 1920x1080@25fps, 1920x1080@15fps, 1920x1080@5fps

  • Video Format

    MP4

  • Video Subtitles

    Supported

  • Video Codec and Bit Rate Strategy

    H.264, H.265
    CBR, VBR

  • Max Photo Size

    8064x6048, 4032x3024

  • Photo Format

    JPG

Infrared Thermal Camera

Jump to...
  • Thermal Imager

    Uncooled VOx Microbolometer

  • Lens

    Focal Length: 24 mm (equivalent focal length: 52 mm)
    Aperture: f/0.95
    DFOV: 45.2 Degree

  • Digital Zoom Equivalent

    32x

  • Video Resolution

    1280 x1024@30fps

  • Video Format

    MP4

  • Video Subtitles

    Supported

  • Video Codec and Bit Rate Strategy

    H264, H265
    CBR, VBR

  • Photo Resolution

    1280x1024

  • Photo Format

    R-JPEG

  • Pixel Pitch

    12 microm

  • Spectral Band

    8-14 microm

  • Noise Equivalent Temperature Difference

    <= 50 mk@f/1.0

  • Temperature Measurement Method

    Spot Measurement, Area Measurement, Center Point Temperature Measurement

  • Temperature Measurement Range

    High Gain: -20 Degree to 150 Degree C (-4 Degree to 302 Degree F), -20 Degree to 450 Degree C (-4 Degree to 842 Degree F) (With Infrared Density Filter)
    Low Gain: 0 Degree to 600 Degree C (32 Degree to 1112 Degree F), 0 Degree to 1600 Degree C (32 Degree to 2912 Degree F) (With Infrared Density Filter)

  • Temperature Alert

    Supported

  • Sun Burn Protection

    Supported

  • FFC

    Auto, Manual

  • Palette

    White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron

Laser Range Finder

Jump to...
  • Wavelength

    905 nm

  • Measurement Range

    9.8 - 9842.5' (3 - 3000m)
    Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m

  • Measurement Accuracy

    <= 500 m: +/-(0.2 m+measurement distance x0.15%)
    > 500 m: +/-1.0 m

  • Laser Spot Size

    @100 m: approx. 50 x450 mm
    @1000 m: approx. 450 x4500 mm

  • Safety Regulation Level

    Class 1

  • Accessible Emission Limit (AEL)

    260 nJ

  • Reference Aperture

    18 mm

  • Max Laser Pulse Emission Power

    52 W (Within 5 Nanoseconds)

NIR Auxiliary Light

Jump to...
  • Wavelength

    850 nm

  • FOV

    4.6 +/-0.6 Degree (Round)

  • Safety Regulation Level

    Class 1

  • Illumination Range

    @100 m: Approx. 8m diameter circle

Special Features

Jump to...
  • Hybrid Optical Zoom

    34x

  • Max Zoom

    400x

  • Link Zoom

    Supported

  • Click to Aim

    Supported

  • High-Res Grid Photo

    Supported

  • Night Scene

    Supported

  • Timestamp

    Supported

  • Smart Capture

    Supported

  • Video Pre-Recording

    Supported

  • UHR Infrared Image

    Supported

Data Storage

Jump to...
  • Supported microSD Cards

    U3/Class10/V30 or above is required, or use a memory card from the recommended list.

  • Supported File System

    exFAT

  • Recommended microSD Cards

    SanDisk Extreme Pro V30 A1 32GB microSDHC
    Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
    Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC

Post-Processing Software

Jump to...
  • Mapping Software

    DJI Terra, DJI FlightHub 2

  • Infrared Analysis Software

    DJI Thermal Analysis Tool 3

  • Power

    28 W

Environment

Jump to...
  • Ingress Protection Rating

    IP54

  • Operating Temperature

    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

Physical

Jump to...
  • Dimensions (L x W x H)

    6.7 x 5.7 x 6.5" (170 x 145 x 165mm)

  • Weight

    32.4 oz (920g) (+/- 5g)

About DJI Zenmuse H30T

FEATURED REVIEWS

Awesome!

By Andres D.

Great! I love this product

Under the umbrella of cutting-edge technology, the DJI Zenmuse H30T Thermal Gimbal Camera stands as a pinnacle of innovation, designed to meet the diverse needs of professionals across various industries. This all-weather, multi-sensor flagship integrates five essential modules: a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. These components work in harmony, employing advanced intelligent algorithms to redefine perception and imaging standards, effectively overcoming the limitations of day and night vision.

The Zenmuse H30T is engineered for versatility, making it an ideal choice for operations in public safety, energy inspection, water conservation, and forestry. Its robust performance is evident in both day and night scenarios, thanks to its comprehensive suite of features:

- Zoom Camera: Equipped with a high-resolution 40MP sensor, the zoom camera supports up to 34x optical zoom and an astounding 400x digital zoom. This allows for detailed observation of subjects at significant distances, surpassing previous generations in both range and clarity. The latest image stabilization algorithm ensures stable and clear imagery, crucial for detailed inspections such as power line assessments.

- Laser Range Finder: With a maximum range of 3000 meters, the laser range finder accurately captures position information, including linear distance, altitude, and GPS coordinates, enhancing precision in various applications.

- Enhanced Night Vision: Both the zoom and wide-angle cameras feature Night Scene mode, providing full-color night vision in low-light conditions. This capability ensures operational efficiency and accuracy, enabling seamless transitions from day to night operations. The system also supports black and white night vision and NIR illumination, enhancing contrast and visibility for covert surveillance and search-and-rescue missions.

- Infrared Thermal Camera: Boasting a resolution of 1280x1024, the infrared thermal camera offers up to 32x digital zoom. It features a UHR (Ultra-High Resolution) Infrared Image function for clear imagery at higher zoom levels. The camera supports three infrared gain modes, including a new High-Res mode for precise observation of objects with small temperature differences, making it invaluable for security and emergency operations.

- Simultaneous Visual and IR Zoom: The Link Zoom feature allows for synchronized scaling of visible light and thermal images, facilitating faster subject location and increased operational efficiency.

- Temperature Measurement: Capable of measuring temperatures from -20 Degree C to 1600 Degree C (-4 Degree F to 2912 Degree F), the infrared thermal camera is particularly useful for firefighting and high-temperature operations, enabling effective temperature change assessments and hotspot identification.

The Zenmuse H30T also excels in adaptability and security:

- Smart Capture and Electronic Dehazing: Smart Capture mode optimizes imaging by assessing ambient light and dynamic range, while Electronic Dehazing enhances clarity in challenging conditions like smog or humidity.

- Environmental Durability: With an IP54 dust and water resistance rating and an operating temperature range of -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F), the Zenmuse H30T is built to withstand harsh environments.

- Information Security: Features like pre-recording, media encryption, and cloud information sync ensure reliable data retention and secure transmission, supporting collaborative operations via DJI FlightHub 2.

The DJI Zenmuse H30T, when paired with DJI Enterprise flight platforms, is a formidable tool for industries such as public safety, electricity, oil and gas, water conservation, and forestry. With the added benefit of DJI Care Enterprise, users receive comprehensive protection, including coverage for accidental damage and efficient replacement services, ensuring peace of mind for your entire DJI fleet.

DJI Zenmuse H30T Features

  • Up to 34x Optical Zoom and 400x Digital Zoom
  • More Stable Imagery from the Zoom Camera
  • Max 3000m Laser Range Finder
  • 1280x1024 Infrared Resolution
  • High-Res Mode for Precise Observation
  • Visual and IR Cameras Simultaneous Zoom
  • Supports Full-Color Night Vision
  • Supports Black and White Night Vision and NIR Illumination
  • Smart Capture for Improved Imaging
  • Electronic Dehazing
  • IP54 Ingress Protection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Up to 34x Optical Zoom and 400x Digital Zoom
  • More Stable Imagery from the Zoom Camera
  • Max 3000m Laser Range Finder
  • 1280x1024 Infrared Resolution
  • High-Res Mode for Precise Observation
  • Visual and IR Cameras Simultaneous Zoom

What's in the box:

  • DJI Zenmuse H30T Gimbal Camera
  • Care Enterprise Basic Auto-Activated 2-Year Plan
  • 64GB MicroSD Card
  • Lens Cap
  • Storage Case
  • Lens Cleaning Cloth
  • DJI 1 Year Limited Warranty
