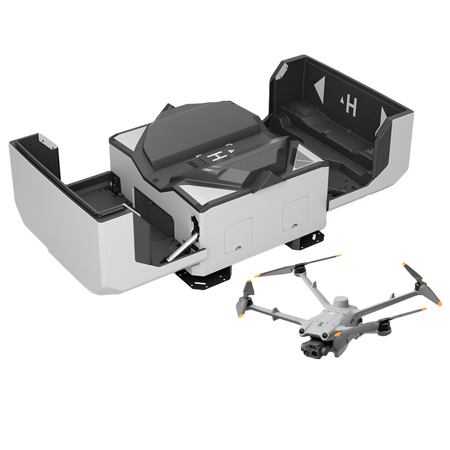

DJI Dock 2

Take your drone operations to the next level with the DJI Dock 2, a compact yet highly capable drone deployment system designed for the DJI Matrice 3D and 3TD drones. This lightweight dock, which is 75% smaller and 68% lighter than its predecessor, offers high-level operation capabilities and intelligent cloud-based functions, making it an efficient and quality solution for automatic drone operations.

The DJI Dock 2 is not only easy to transport but also easy to install, reducing both time and costs. It features an efficient site evaluation system that uses vision sensors to detect the surrounding environment and determine the strength of GNSS signals. This vision-based evaluation significantly accelerates site selection, reducing the required time from five hours to twelve minutes or less.

Designed with durability in mind, the DJI Dock 2 boasts an IP55 dust and water resistance rating, ensuring steady operation even in harsh climates and environments. It integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2, effectively reducing flight risk.

The DJI Dock 2 also features improved landing stability, thanks to next-gen image recognition technology that accurately identifies positioning markers on the landing pad. In case of an unexpected power outage, the dock can continue to operate independently for over five hours with the built-in backup battery, ensuring sufficient time for the aircraft to return and land.

The DJI Dock 2 is compatible with the all-new DJI Matrice 3D/3TD, which are equipped with a tele camera and a wide-angle camera, meeting the needs for high-precision mapping tasks. The Matrice 3TD, outfitted with an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.

With its powerful operation capabilities, the DJI Dock 2 offers superior, comprehensive performance. It integrates dual RTK antennas for quick takeoff, performs a complete propeller inspection, and charges the aircraft from 20% to 90% in just 32 minutes. It also features dual-camera monitoring for real-time display and close monitoring of weather conditions and the aircraft's takeoff and landing.

The DJI Dock 2 offers cloud-based operation for maximum control. After the aircraft completes its flight task, DJI FlightHub 2 generates high-precision 3D models based on the collected flight data. Operators can conduct visual flight route editing from a first-person perspective and preview simulated imaging results. The dock also supports third-party payloads such as loudspeakers and spotlights, and has an edge computing expansion interface for pre-processing of media files.

With the DJI Dock 2, you can tailor a customized management system with Cloud API or quickly connect it to a third-party cloud platform for efficient and convenient private deployment. Through DJI FlightHub 2's FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of operation data. With the DJI TerraAPI, users can integrate the powerful mapping capabilities of DJI Terra into their own dock management systems, enabling automated 2D/3D reconstruction and customized photo mapping workflows.
