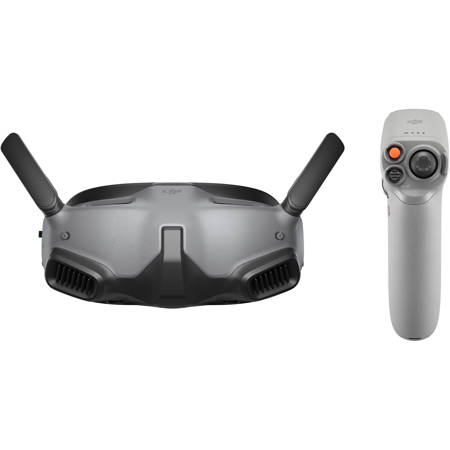

DJI Goggles Integra Motion Combo with RC Motion 2 Remote Controller

SKU: DJIFP1191

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the two 1080p Micro-OLED screens on the DJI Goggles Integra?

The two 1080p Micro-OLED screens on the DJI Goggles Integra provide a high-definition display, showcasing stunning colors and detailed highlight-shadow contrasts. This enhances the immersive flight experience by delivering vivid, real-time visuals.

What is the benefit of the DJI O3+ video transmission in the DJI Goggles Integra?

The DJI O3+ video transmission offers ultra-low-latency, ensuring a smooth, stable connection during flight. It also allows the goggles to automatically switch frequency bands and maintain strong anti-interference capabilities.

What drones are compatible with the Goggles Integra Motion Combo?

The Goggles Integra Motion Combo is compatible with various DJI camera drones, including the DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine, DJI Mavic 3, DJI Mavic 3 Cine, DJI Mavic 3 Classic, and DJI Mini 3 Pro.

How does the DJI RC Motion 2 Remote Controller enhance the flight experience?

The DJI RC Motion 2 Remote Controller offers powerful and intuitive control with its motion sensing technology. This allows you to control the flight direction with a simple turn of the wrist, making navigation and maneuvering easier, even for beginners.

How does the integrated design of the DJI Goggles Integra benefit the user?

The integrated design of the DJI Goggles Integra combines the headband and battery into one, eliminating the need for cumbersome cables. This makes the goggles easy to wear and remove, and the built-in battery headband ensures a balanced, comfortable fit.

Shopper : Why Did You Choose This?MARK T : To use with my Mavic 3 ProERNEST K : some of my friends has the dji goggles.JEFFREY G : Wanted to use with Mavic 3 cline.ELEN R : because this is new, it worth tryingDON W : PriceCHRISTOPHER M : I like being able to have a headset on abd to be able to have better control.

Reviews about this item

Review Summary

2023-08-17T15:37:28

Rated 5 out of 5

Great value

Love this setup

JOE B.

2023-05-24T17:14:44

Rated 5 out of 5

Satisfied

It is exactly what I ordered but with my drone it is a little difficult to set up but I'll figure it out eventually cool beans

RENATO G.

2023-05-10T01:41:53

Rated 4 out of 5

Almost perfect

So I've used many headset over the years. This one is replacing a V2 goggle. Imagine quality is amazing with minimal latency. They are light and battery pack balances out the overall weight and feel. If the foam used was better then I would have given it a 5 star. The padding is poor but nothing an aftermarket foam pad can't fix. I would highly recommend this headset

MAURICIO S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DJI Goggles Integra Specifications

General

General

Jump to...
  • Compatibility

    DJI Avata
    DJI Mavic 3 Classic
    DJI Mavic 3
    DJI Mavic 3 Cine
    DJI Mavic 3 Pro
    DJI Mavic 3 Pro Cine
    DJI Mini 3 Pro

Goggles Integra: Goggles

Jump to...
  • Model

    RCDS13

  • Compatibility

    DJI Avata
    DJI Mavic 3 Classic
    DJI Mavic 3
    DJI Mavic 3 Cine
    DJI Mavic 3 Pro
    DJI Mavic 3 Pro Cine
    DJI Mini 3 Pro

  • Screen Size (Single screen)

    0.49" (1.24cm)

  • Resolution (Single screen)

    1920 x 1080

  • Refresh Rate

    Up to 100 Hz

  • IPD Range

    56-72mm

  • FOV (Single screen)

    44 Degree

  • Video Recording Format

    MOV

  • Supported Video Playback Formats

    MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)

  • Operating Temperature

    14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

  • Power Input

    Built-in battery

  • Supported SD Cards

    microSD (up to 512GB)

  • Recommended microSD Cards

    SanDisk Extreme U3 V30 A1 32GB microSDXC
    SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
    Lexar 1066x U3 V30 A2 64GB microSDXC
    Lexar 1066x U3 V30 A2 128GB microSDXC
    Lexar 1066x U3 V30 A2 256GB microSDXC
    Lexar 1066x U3 V30 A2 512GB microSDXC
    Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
    Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC

  • Recommended microSD Cards (Contd.)

    Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
    Samsung EVO Plus U3 V30 A2 512GB microSDXC

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    With antennas folded: 6.69 x 4.09 x 2.95" (170 x 104 x 75mm)
    With antennas unfolded: 8.07 x 4.09 x 4.09" (205 x 104 x 104mm)

  • Weight

    Battery included: Approx. 14.46 oz (410g)

Goggles Integra: Video Transmission

Jump to...
  • Video Transmission

    When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
    DJI Avata: O3+

  • Operating Frequency

    2.4000-2.4835 GHz
    5.725-5.850 GHz

  • Transmitter Power (EIRP)

    2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC/KC)

    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 23 dBm (SRRC)
    < 14 dBm (CE/KC)

  • Transmission Latency

    1080p/100fps: as low as 30 ms
    1080p/60fps: as low as 40 ms

  • Max Transmission Distance

    When used with DJI Avata or DJI O3 Air Unit, DJI Goggles Integra can achieve the following max video transmission range:
    10 km (FCC), 2 km (CE), 6 km (SRRC)

  • Max Video Bitrate

    50 Mbps

Goggles Integra: Battery

Jump to...
  • Capacity

    2450 mAh

  • Voltage

    5.6-8.4 V

  • Type

    Li-ion

  • Chemical System

    LiNiMnCoO2

  • Energy

    17.64 Wh

  • Charging Temperature

    41 Degree to 113 Degree F (5 Degree to 45 Degree C)

  • Max Charging Power

    15 W (charging when powered off)

  • Operating Time

    Approx. 2 hours

  • Dimensions (L x W x H)

    4.72 x 2 x 2.79" (120 x 51 x 71mm)

  • Weight

    Headband included: Approx. 6.52 oz (185g)

RC Motion 2

Jump to...
  • Model

    RM220

  • Operating Frequency

    2.4000-2.4835 GHz
    5.725-5.850 GHz

  • Transmitter Power (EIRP)

    2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 23 dBm (SRRC)
    < 14 dBm (CE)

  • Max Transmission Distance

    Unobstructed, interference-free:
    10km (FCC)
    6km (CE/SRRC/MIC)

  • Operating Temperature

    14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

  • Operating Time

    Approx. 5 hours

  • Weight

    Approx. 5.99 oz (170g)

  • UPC Code

    6941565952288

About DJI Goggles Integra

FEATURED REVIEWS

Great value

By JOE B.

Love this setup

Satisfied

By RENATO G.

It is exactly what I ordered but with my drone it is a little difficult to set up but I'll figure it out eventually cool beans

For the ultimate immersive flight experience, the Goggles Integra Motion Combo with RC Motion 2 Remote Controller from DJI is your go-to choice. This innovative combo pack includes the high-tech DJI RC Motion 2, offering intuitive motion control that puts you right in the pilot seat.

The DJI Goggles Integra, a key component of this combo, boasts an integrated design with two 1080p Micro-OLED screens. These screens offer a refresh rate of up to 100Hz and support ultra-low-latency video transmission, delivering a flight experience that's nothing short of immersive. The HD display showcases stunning colors, bringing true-to-life hues and detailed highlight-shadow contrasts to your view.

With a screen brightness of up to 700 nits, the DJI Goggles Integra ensures brilliant views, even in bright conditions. The goggles are also TUV Rheinland Low Blue Light Certified, ensuring your flight experience is as comfortable as it is exciting.

The DJI Goggles Integra employs DJI O3+ video transmission, offering latency as low as 30 ms. This advanced feature allows the goggles to automatically switch frequency bands and maintain strong anti-interference capabilities, ensuring your flight remains uninterrupted.

The Goggles Integra Motion Combo is compatible with various DJI camera drones, including the DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine, DJI Mavic 3, DJI Mavic 3 Cine, DJI Mavic 3 Classic, and DJI Mini 3 Pro. This compatibility opens up a world of creative possibilities for your aerial photography and videography.

The lightweight design of the DJI Goggles Integra combines the headband and battery into one, eliminating the need for cumbersome cables. This design makes the goggles easy to wear and remove, and the built-in battery headband ensures a balanced, comfortable fit.

The DJI RC Motion 2 Remote Controller, included in this combo, offers powerful and intuitive control. Its motion sensing technology allows you to control the flight direction with a simple turn of the wrist. This feature, combined with the joystick, makes navigation and maneuvering a breeze, even for beginners.

In conclusion, the Goggles Integra Motion Combo with RC Motion 2 Remote Controller from DJI offers a comprehensive, user-friendly solution for FPV flying. Its advanced features and high-quality components make it a durable and reliable choice for both hobbyists and professionals.

DJI Goggles Integra Features

  • Goggles Integra
  • Lightweight and Portable
  • Integrated Design
  • Micro-OLED Screens
  • DJI O3+ Video Transmission
  • HD Low-Latency
  • RC Motion 2 Remote Controller
  • Immersive Motion Control
  • Multidirectional Operation
  • Multifunctional and Intuitive

Key Features

  • Integrated FPV combo with DJI Goggles Integra and RC Motion 2 for a seamless flight experience
  • Dual 1080p Micro-OLED screens with 100Hz refresh rate for vivid, real-time visuals
  • Ultra-low-latency DJI O3+ video transmission ensures smooth, stable connections
  • TUV Rheinland certification for reduced blue light, enhancing viewing comfort
  • Intuitive motion control with DJI RC Motion 2 for immersive, responsive piloting
  • Compatible with select DJI drones, expanding creative aerial photography options

What's in the box:

  • DJI Goggles Integra
  • RC Motion 2 Remote Controller
  • USB-C OTG Cable
  • 4x Goggles Integra Eyeglass Frames
  • 22x Goggles Integra Corrective Lenses
  • Goggles Integra Top Headband
  • Lens Cleaning Cloth
  • Lanyard
  • DJI 1 Year Limited Warranty
