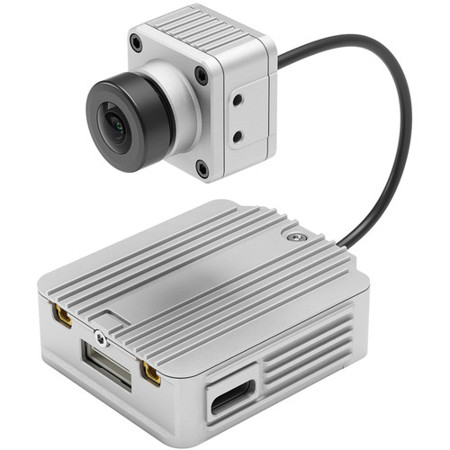

DJI FPV Air Unit

SKU: DJIFPVAU

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DJI FPV Air Unit Specifications

  • Operating Frequency

    5.725-5.850 GHz

  • Transmitter Power (EIRP)

    Low Latency Mode (720p/120fps): <28 ms;
    CE: <14 dBm

  • Min. Latency (end-to-end)

    Low Latency Mode (720p/120fps): <28 ms
    High-Quality Mode (720p/60fps): <40 ms

  • Max. Transmission Distance

    FCC/SRRC: <4 km; CE: <0.7 km

  • Video Format

    MP4 (Video format: H.264; Audio format: ACC-LC)

  • I/O Interface

    USB-C, MMCX, 3-in-1 port, microSD card slot

  • Supported Flight Control System

    The DJI FPV Air Unit is only compatible with flight controllers that support Betaflight

  • Operating Temperature Range

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Input Power

    7.4-17.6 V, about 4-9 W

  • Channels

    8

  • Channels info

    FCC
    Channel 1: 5660
    Channel 2: 5695
    Channel 3: 5735
    Channel 4: 5770
    Channel 5: 5805
    Channel 6: 5878
    Channel 7: 5914
    Channel 8: 5839

    CE/SRRC
    Channel 1: 5735
    Channel 2: 5770
    Channel 3: 5805
    Channel 8: 5839

    MIC
    Channel 1: 5660
    Channel 2: 5700
    Channel 8: 5745

  • Dimensions

    Air Unit: 1.73 x 1.48 x 0.56" (44 x 37.8 x 14.4mm)
    Camera: 1.07 x 0.83 x 0.79" (27.4 x 21.1 x 20.1mm)
    Coaxial Cable: 3.93" (100mm)

  • Weight

    1.61 oz (45.8g) Air Unit (Camera included)
    0.13 oz (3.9g) (each MMCX elbow)

  • UPC Code

    6958265190209

About DJI FPV Air Unit

1080p Aerial Recording
Modern innovations, like a strong transmission system, embedded remote controller receiver, and multi-antenna technology, is why the DJI FPV Air Unit can perform remarkably.

8 Channels, 8 Drones
The DJI HDL FPV Transmission system and the DJI FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience.

1080p Aerial Footage
The DJI FPV Air Unit records videos at 1080p/60fps during flight, providing pilots with smooth and clear aerial footage.

Embedded Remote Controller Receiver
Users can wirelessly connect their DJI FPV Air Unit to the DJI FPV Remote Controller without having to purchase additional receivers. This reduces flight preparation time significantly.

Multi-Antenna Technology
The DJI FPV Air Unit has two antennas, both of which are receivers and transmitters, ensuring broader signal coverage for reliable image transmission.

DJI FPV Air Unit Features

  • 8 Channels, 8 Drones
  • 1080p Aerial Footage
  • Embedded Remote Controller Receiver
  • Multi-Antenna Technology

Key Features

  • 8 Channels, 8 Drones
  • 1080p Aerial Footage
  • Embedded Remote Controller Receiver
  • Multi-Antenna Technology

What's in the box:

  • FPV Air Unit (Camera Included)
  • 2x Antenna (MMCX Elbow)
  • 3-in-1 Cable
  • 4x M2.0 Screw
  • DJI 1 Year Limited Warranty
