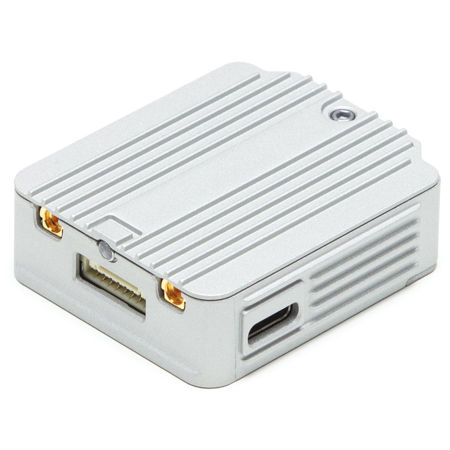

DJI Part 02 FPV Air Unit Module
See all DJI items

DJI Part 02 FPV Air Unit Module

SKU: DJIFPVPART02
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

DJI FPV Air Unit Module Specifications

  • Compatibility

    FPV Camera

  • Operating Frequency

    5.725 to 5.850 GHz

  • Transmitter Power (EIRP)

    FCC/SRCC: <30 dBm
    CE: <14 dBm

  • Latency

    Minimum (End-to-End):
    Low-Latency Mode (720p120): <28 ms
    High-Latency Mode (720p60): <40 ms

  • Transmission Distance

    FCC/SRCC: 2.5 Miles / 4 km
    CED: 0.4 Miles / 0.7 km

  • Video Format

    MP4 (Video Format: H.264; Audio Format: AAC-LC)

  • I/O Interface

    USB Type-C
    MMCX
    3-in-1 Port
    microSD Card Slot

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Input Power

    7.4 to 17.6 VDC
    Approximately 4 to 9W

  • Channels

    FCC:
    Channel 1: 5660
    Channel 2: 5695
    Channel 3: 5735
    Channel 4: 5770
    Channel 5: 5805
    Channel 6: 5878
    Channel 7: 5914
    Channel 8: 5839

    CE/SRRC:
    Channel 1: 5735
    Channel 2: 5770
    Channel 3: 5805
    Channel 8: 5839

    MIC:
    Channel 1: 5660
    Channel 2: 5700
    Channel 8: 5745

  • Dimensions

    44 x 37.8 x 14.4mm (1.73 x 1.49 x 0.57")

  • UPC Code

    6958265190391

About DJI FPV Air Unit Module

The FPV Air Unit Module features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording and eight frequency channels, allowing eight pilots to fly simultaneously. A modular with a quick-release design, making replacement easier and cost-efficient for users. Also features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording and eight frequency channels, allowing eight pilots to fly simultaneously.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • DJI Part 02 FPV Air Unit Module
  • DJI 6 Month Limited Warranty
