DJI Matrice 30T (Thermal) Drone Public Safety Bundle. Includes: 6x Batteries, Care Enterprise BASIC, Searchlight, 3x MicroSD Cards, Card Reader, Launch Pad, 3x Batteries and 10x Infrared Spot Lights

SKU: DJIM30TAK1

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-02-10T06:57:47

Rated 5 out of 5

Excellent bundle!

This is an excellent bundle and a must have for public safety!

Jeff B.

DJI Matrice 30 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone Kit

  • Edition

    Thermal

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated

  • Kit Style

    With Enterprise Basic & Acc Kit

  • Model

    DJI Matrice 30

  • Skill Level

    Enterprise, Pro

Aircraft

Jump to...
  • Color

    Black

  • Maximum Flight Time

    41 minutes

  • Takeoff Weight

    8.97 lbs (4069g)
    For C2 Certification in EU: 8.81 lbs (3998g)

  • Max Ascent/Decent Speed

    Ascent/Descent: 6 m/s, 5 m/s

  • Max Horizontal Speed

    23 m/s

  • Max Wind Speed Resistance

    15 m/s
    12 m/s during taking off and landing

  • Max Takeoff Altitude

    5,000 m (with 1671 propellers)
    7,000 m (with 1676 propellers) (without other payload)

  • Max Hovering Time

    36 minutes

  • Max Tilt Angle

    35 Degree (N-mode and Forward Vision System enabled: 25 Degree )

  • Max Angular Velocity

    Pitch: 150 Degree /sec.; Yaw: 100 Degree /sec.

  • Global Navigation Satellite System

    GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled)

  • Hovering Accuracy Range

    Vertical: +/-0.1m (Vision System enabled); +/-0.5m (N-mode with GPS); +/-0.1 m (RTK)
    Horizontal: +/-0.3m (Vision System enabled); +/-1.5m (N-mode with GPS); +/-0.1m (RTK)

  • Operating Temperature

    (Aircraft, TB30 Intelligent Flight Battery, Remote Controller):
    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

    BS30 Intelligent Battery Station:
    -4 Degree to 104 Degree F (-20 Degree to 40 Degree C)

  • IP Rating

    Aircraft:
    IP55

    Remote Controller:
    IP54

    BS30 Intelligent Battery Station:
    IP55

  • Internal Storage

    No

  • Camera Still Resolution

    48 MP

  • Video Resolution

    4K

  • Image Sensor

    Zoom Camera:
    1/2" CMOS, Effective pixels: 48M

    Wide Camera:
    1/2" CMOS, Effective pixels: 12M

  • Lens

    Zoom Camera:
    Focal length: 21-75 mm (equivalent: 113-405 mm)
    Aperture: f/2.8-f/4.2
    Focus: 5 m to Infinite

    Wide Camera:
    DFOV: 84 Degree
    Focal length: 4.5mm (equivalent: 24mm)
    Aperture: f/2.8
    Focus: 1m to Infinite

    Thermal Camera:
    DFOV: 61 Degree
    Focal length: 9.1mm (equivalent: 40mm)
    Aperture: f/1.0
    Focus: 5m to Infinite
    Sensitivity<=30 mk@F1.1

    FPV Camera:
    161 Degree

  • ISO Range

    100-25600

  • Shutter Speed

    Auto Mode:
    Photo: 1/8000-1/2 s
    Video: 1/8000-1/30 s

    M Mode:
    Photo: 1/8000-8 s
    Video: 1/8000 -1/30 s

  • Max Image Size

    Zoom Camera:
    8000 x 6000

    Wide Camera:
    4000 x 3000

    Thermal Camera:
    Infrared Image Super-resolution Mode: 1280 x 1024
    Normal Mode: 640 x 512

    FPV Camera:
    161 Degree

  • Still Photography Modes

    Single Shot

  • Photo Format

    JPEG

  • Digital Zoom

    Thermal
    20x
    Wide
    5x
    Telephoto
    20x

  • Gimbal Option

    Flight Camera

  • Mechanical Range

    Pan:'+/-105 Degree
    Tilt: -135 Degree to'+60 Degree
    Roll:'+/-45 Degree

  • Controllable Range

    Pan:'+/-90 Degree
    Tilt: -120 Degree to'+45 Degree

  • Angular Vibration Range

    +/-0.01 Degree

Sensing

Jump to...
  • Sensing Type

    Omnidirectional

  • Forward

    Detection Range: 2.0 to 124.7' / 0.6 to 38 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Backward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Lateral

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Upward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 50° (Front-to-Back) / 65° (Side-to-Side)

  • Downward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Front-to-Back) / 50° (Side-to-Side)

  • Operating Environment

    Vision Systems:
    Surfaces with clear patterns and adequate lighting (> 15 lux)

    Infrared Sensing Systems:
    Large, diffuse, and reflective obstacles (reflectivity >10%)

Video Transmission

Jump to...
  • Video Transmission System

    O3 Enterprise

  • Operating Frequency

    2.4000-2.4835GHz
    5.725-5.850GHz

  • Transmitter Power (EIRP)

    2.4GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

  • Max Transmission Distance

    O3 Enterprise:
    Max Transmission Distance w/o Interface:
    2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC) (unobstructed, free of interference)

    Max Transmission Distance with Interface:
    Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
    Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC)
    Weak Interference (open landscape abundant line of sight,

Battery

Jump to...
  • Capacity

    TB30 Intelligent Flight Battery:
    5880 mAh

    Remote Controller:
    Internal Battery: 6500 mAh

    External Battery: 4920 mAh

  • Voltage

    TB30 Intelligent Flight Battery:
    26.1 V

    Remote Controller:
    Internal Battery: 7.2 V

    External Battery: 7.6 V

  • Battery Material

    Aircraft:
    Lithium ion

  • Energy

    TB30 Intelligent Flight Battery:
    131.6 Wh

    Remote Controller:
    External Battery: 37.39 Wh

  • Battery Quantity

    2

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Max Operating Time

    Internal Battery: Approx. 3 hours 18 min
    Internal Battery'+ External Battery: Approx. 6 hours

  • Operating Temperature

    (Aircraft, TB30 Intelligent Flight Battery, Remote Controller):
    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

    BS30 Intelligent Battery Station:
    -4 Degree to 104 Degree F (-20 Degree to 40 Degree C)

Physical

Jump to...
  • Dimensions

    Aircraft:
    Unfolded, excl. propellers: 18.5 x 23 x 8.4" (470 x 585 x 215mm)
    Folded: 14.3 x 8.4 x 7.6" (365 x 215 x 195mm)

    BS30 Intelligent Battery Station:
    13.8 x 10.5 x 5.8" (353 x 267 x 148mm)

  • Weight

    Aircraft:
    8.3 lbs (3.77kg) (+/- 10g) (incl. two batteries)

    TB30 Intelligent Flight Battery:
    24.1 oz (685g) (Approx.)

    BS30 Intelligent Battery Station:
    8.7 lbs (3.95kg)

  • UPC Code

    192223216181

5 Accessories for DJI Matrice 30T (Thermal) Drone Public Safety Bundle. Includes: 6x Batteries, Care Enterprise BASIC, Searchlight, 3x MicroSD Cards, Card Reader, Launch Pad, 3x Batteries and 10x Infrared Spot Lights

  • All Accessories (5)
  • Drone Accessories (3)
  • Batteries & Power Supply (1)
  • Landing Gear (1)

About DJI Matrice 30

FEATURED REVIEWS

Excellent bundle!

By Jeff B.

This is an excellent bundle and a must have for public safety!

A cutting-edge solution for commercial drone operations, the Matrice 30T Thermal Quadcopter Bundle is a comprehensive package that combines power, portability, and advanced technology. This high-tech drone offers superior flight performance, balancing power and portability to deliver increased operational efficiency.

Designed with environmental adaptability, the M30 drone features IP55 protection, allowing it to withstand adverse weather conditions and temperatures ranging from -20°C to 50°C. Safety and reliability are at the forefront of its design, with dual-vision and ToF sensors on all six sides of the aircraft for enhanced protection. The built-in ADS-B receiver provides timely warnings of nearby crewed aircraft, ensuring your mission remains safe and uninterrupted.

The Matrice 30T is equipped with advanced redundancy systems, ensuring your critical missions continue even in unexpected scenarios. It also features enhanced transmission capabilities with four built-in antennas that support OcuSync 3 Enterprise. This enables triple-channel 1080p video transmission and seamless swapping between input feeds, even in complex environments.

Compact, foldable, and easy to deploy, the M30 Series is designed for convenience. It integrates wide, zoom, and thermal cameras with a laser rangefinder, capturing the aerial data you need, when you need it. The wide camera features a 12 MP 1/2" CMOS Sensor with a video resolution of 4K/30fps. The zoom camera boasts a 48 MP 1/2'' CMOS Sensor, 5x-16x Optical Zoom, and a photo resolution of 8K. The thermal imaging camera offers a resolution of 640 x512 and a frame rate of 30fps, while the laser rangefinder has a range of 3 m - 1200 m.

The Matrice 30T Thermal Quadcopter Bundle is designed for night flight, with an FPV camera optimized for low-light conditions. It also features Smart Low-Light Photo technology for capturing bright, clear images in low-light conditions. The high-resolution thermal capabilities allow for the detection of hotspots and heat signatures, and the laser rangefinder can pinpoint an object in view and deliver its coordinates instantly.

This professional-grade drone bundle also includes the DJI RC Plus, a 7-inch widescreen controller with dual control mode, designed specifically for Enterprise users. It offers improved stability and extended battery life, with an internal and external battery configuration that powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

The Matrice 30T Thermal Quadcopter Bundle is a sophisticated, innovative solution for aerial photography and videography, offering advanced intelligence, streamlined team communication, and user data security. It also includes the DJI Care Enterprise Basic, extending the warranty period of your product by at least 12 months and offering one more opportunity to replace your DJI product for a small additional charge in one year. With the Matrice 30T Thermal Quadcopter Bundle, you can capture everything you need with safety, efficiency, and confidence.

DJI Matrice 30 Features

  • Unique aerial intelligence to capture everything
  • Reliable in the harshest of environments
  • Portable to go wherever you go
  • Ready, when you are, to overcome the unknown
  • 41-min Max Flight Time
  • 15 m/s Wind Resistance
  • 7000 m Service Ceiling
  • 23 m/s Max Speed

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture clear aerial imagery with the DJI Matrice 30T's impressive 48MP camera.
  • Thermal imaging identifies heat signatures, ideal for search & rescue or inspections.
  • Enjoy extended operations with a 41-minute max flight time and 6 included batteries.
  • Confidently fly in challenging conditions with a wind resistance of up to 15 m/s.
  • The DJI M30T drone offers precise navigation with GPS, Galileo, BeiDou, and GLONASS.
  • This public safety bundle includes a searchlight and infrared strobes for night ops.

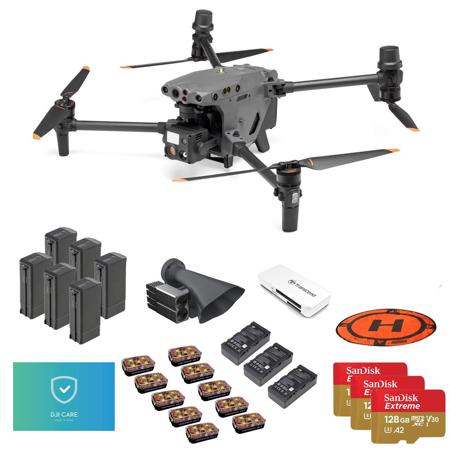

What's in the box:

  • DJI Matrice 30T with DJI Care Enterprise Basic
  • 6x TB30 Batteries
  • M30T Care Enterprise Basic
  • 3x WB37 Batteries
  • RC Plus Controller
  • BS30 Battery Station
  • Storage Case
  • USB-C Cable
  • USB-C to USB-C Cable
  • Screws and Tools
  • 1671 Propeller (CW)
  • 1671 Propeller (CCW)
  • DJI 1 Year Limited Warranty
  • CZI LP12 Searchlight and Broadcasting System
  • 3x 128GB microSD Card
  • Transcend Card Reader
  • Hoodman Launch Pad
  • 10x Firehouse Technology Infrared Strobe Spot Light
