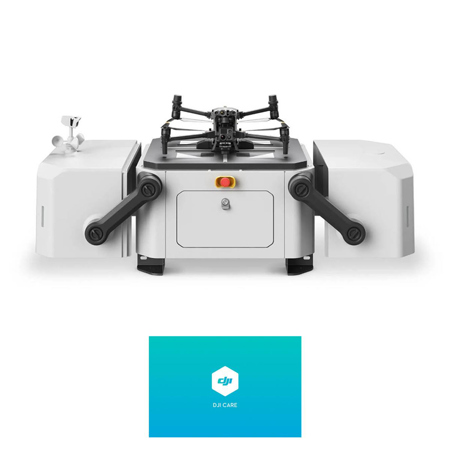

DJI Matrice 30T Thermal Drone and Dock Bundle with Care Enterprise Plus

SKU: DJIM30TDBK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What are the key features of the Matrice 30T Thermal Drone?

The Matrice 30T Thermal Drone offers superior flight performance with a max flight time of 41 minutes, wind resistance of up to 12 m/s, and a top speed of 23 m/s. It's designed with safety in mind, featuring dual-vision and ToF sensors and a built-in ADS-B receiver. The drone also boasts enhanced transmission capabilities and superior image quality with wide, zoom, and thermal cameras.

What is the function of the DJI Dock?

The DJI Dock houses the Matrice 30 drone, allowing it to land, recharge, take off, and execute missions programmed in DJI FlightHub 2. It's designed for rugged reliability and can operate 24/7 in any weather condition.

What are the capabilities of the cameras on the Matrice 30T Thermal Drone?

The Matrice 30T Thermal Drone integrates wide, zoom, and thermal cameras. The wide camera has a 12 MP 1/2'' CMOS sensor and a video resolution of 4K/30fps. The zoom camera features a 48 MP 1/2'' CMOS sensor, 5x-16x optical zoom, and 4K/30fps video resolution. The thermal imaging camera provides a resolution of 640 x 512 at a frame rate of 30fps.

How can I manage and monitor my drone missions with the DJI Dock?

With FlightHub 2, you can unlock full DJI Dock functionality from the cloud. This allows you to schedule missions, create and edit flight routes, manage data collected, and monitor the health and status of your DJI Docks and drones remotely.

Reviews about this item

Review Summary

2023-02-10T06:57:47

Rated 5 out of 5

Excellent bundle!

This is an excellent bundle and a must have for public safety!

Jeff B.

DJI Matrice 30 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone Kit

  • Edition

    Thermal

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated, Camera Included

  • Kit Style

    With Dock

  • Model

    DJI Matrice 30

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Black

  • Maximum Flight Time

    41 minutes

  • Takeoff Weight

    8.97 lbs (4069g)
    For C2 Certification in EU: 8.81 lbs (3998g)

  • Max Ascent/Decent Speed

    Ascent/Descent: 6 m/s, 5 m/s

  • Max Horizontal Speed

    23 m/s

  • Max Wind Speed Resistance

    15 m/s
    12 m/s during taking off and landing

  • Max Takeoff Altitude

    5,000 m (with 1671 propellers)
    7,000 m (with 1676 propellers) (without other payload)

  • Max Hovering Time

    36 minutes

  • Max Tilt Angle

    35 Degree (N-mode and Forward Vision System enabled: 25 Degree )

  • Max Angular Velocity

    Pitch: 150 Degree /sec.; Yaw: 100 Degree /sec.

  • Global Navigation Satellite System (GNSS

    GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled)

  • Hovering Accuracy Range

    Vertical: +/-0.1m (Vision System enabled); +/-0.5m (N-mode with GPS); +/-0.1 m (RTK)
    Horizontal: +/-0.3m (Vision System enabled); +/-1.5m (N-mode with GPS); +/-0.1m (RTK)

  • IP Rating

    Aircraft:
    IP55

    Remote Controller:
    IP54

    Dock:
    IP55

  • Internal Storage

    No

  • Recommended microSD Cards

    In Aircraft Body
    microSD/microSDHC/microSDXC [128 GB Maximum / U3/V30 or Faster Recommended]
    In Remote/Transmitter
    microSD/microSDHC/microSDXC

  • Camera Still Resolution

    48 MP

  • Video Resolution

    4K

  • Image Sensor

    Zoom Camera:
    1/2" CMOS, Effective pixels: 48M

    Wide Camera:
    1/2" CMOS, Effective pixels: 12M

  • Lens

    Zoom Camera:
    Focal length: 21-75 mm (equivalent: 113-405 mm)
    Aperture: f/2.8-f/4.2
    Focus: 5 m to Infinite

    Wide Camera:
    DFOV: 84 Degree
    Focal length: 4.5mm (equivalent: 24mm)
    Aperture: f/2.8
    Focus: 1m to Infinite

    Thermal Camera:
    DFOV: 61 Degree
    Focal length: 9.1mm (equivalent: 40mm)
    Aperture: f/1.0
    Focus: 5m to Infinite
    Sensitivity<=30 mk@F1.1

    FPV Camera:
    161 Degree

  • ISO Range

    100-25600

  • Shutter Speed

    Auto Mode:
    Photo: 1/8000-1/2 s
    Video: 1/8000-1/30 s

    M Mode:
    Photo: 1/8000-8 s
    Video: 1/8000 -1/30 s

  • Max Image Size

    Zoom Camera:
    8000 x 6000

    Wide Camera:
    4000 x 3000

    Thermal Camera:
    Infrared Image Super-resolution Mode: 1280 x 1024
    Normal Mode: 640 x 512

    FPV Camera:
    161 Degree

  • Still Photography Modes

    Single Shot

  • Photo Format

    JPEG

  • Digital Zoom

    Thermal
    20x
    Wide
    5x
    Telephoto
    20x

  • Gimbal Option

    2-Axis Gimbal

  • Mechanical Range

    Pan:'+/-105 Degree
    Tilt: -135 Degree to'+60 Degree
    Roll:'+/-45 Degree

  • Controllable Range

    Pan:'+/-90 Degree
    Tilt: -120 Degree to'+45 Degree

  • Angular Vibration Range

    +/-0.01 Degree

Sensing

Jump to...
  • Sensing Type

    Omnidirectional

  • Forward

    Detection Range: 2.0 to 124.7' / 0.6 to 38 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Backward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Lateral

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Upward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 50° (Front-to-Back) / 65° (Side-to-Side)

  • Downward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Front-to-Back) / 50° (Side-to-Side)

  • Operating Environment

    Vision Systems:
    Surfaces with clear patterns and adequate lighting (> 15 lux)

    Infrared Sensing Systems:
    Large, diffuse, and reflective obstacles (reflectivity >10%)

Video Transmission

Jump to...
  • Video Transmission System

    O3 Enterprise

  • Operating Frequency

    2.4000-2.4835GHz
    5.725-5.850GHz

  • Transmitter Power (EIRP)

    2.4GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Battery

Jump to...
  • Capacity

    Dock: Backup Battery
    12 Ah

    Remote Controller:
    Internal Battery: 6500 mAh

    External Battery: 4920 mAh

  • Voltage

    Dock: Backup Battery
    24 V

    Remote Controller:
    Internal Battery: 7.2 V

    External Battery: 7.6 V

  • Battery Material

    Aircraft:
    Lithium ion

  • Energy

    Remote Controller:
    External Battery: 37.39 Wh

  • Battery Quantity

    4

Remote Controller

Jump to...
  • Remote Controller

    without Remote Controller

  • Max Operating Time

    Internal Battery: Approx. 3 hours 18 min
    Internal Battery'+ External Battery: Approx. 6 hours

  • Operating Temperature

    Aircraft:
    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

    Dock:
    -31 to 122 Degree F (-35 to 50 Degree C)

Physical

Jump to...
  • Dimensions

    Aircraft:
    Unfolded, excl. propellers: 18.5 x 23 x 8.4" (470 x 585 x 215mm)
    Folded: 14.3 x 8.4 x 7.6" (365 x 215 x 195mm)

    Dock:
    Dock Cover Opened: 65.94 x 34.84 x 28.93" (1675 x 885 x 735mm)
    Dock Cover Closed: 31.49 x 34.84 x 41.92" (800 x 885 x 1065mm)

  • Weight

    Aircraft:
    Including two batteries: 8.31 lbs (3770g) ( +/-10g)

    Dock:
    Not including aircraft weight: 231.48 lbs (105kg)

    BS30 Intelligent Battery Station:
    8.7 lbs (3.95kg)

  • UPC Code

    192223235977

2 Accessories for DJI Matrice 30T Thermal Drone and Dock Bundle with Care Enterprise Plus

  • All Accessories (2)
  • Drone Accessories (1)
  • Batteries & Power Supply (1)

About DJI Matrice 30

FEATURED REVIEWS

Excellent bundle!

By Jeff B.

This is an excellent bundle and a must have for public safety!

The Matrice 30T Thermal Drone and Dock Bundle with Care Enterprise Plus is a revolutionary product designed to elevate your aerial photography and videography experience. This bundle offers a unique blend of power and portability, providing exceptional operational efficiency and adaptability in various environmental conditions.

The Matrice 30T Thermal Drone is engineered for superior flight performance, boasting a maximum flight time of 41 minutes, wind resistance of up to 12 m/s, a service ceiling of 7000 m, and a top speed of 23 m/s. Its IP55 protection ensures resilience against adverse weather, with a temperature tolerance ranging from -20 to 50 degrees Celsius.

Safety and reliability are paramount with this drone. It features dual-vision and ToF sensors on all six sides of the aircraft, ensuring mission safety. The built-in ADS-B receiver provides timely alerts of any approaching crewed aircraft. Furthermore, the drone is equipped with advanced redundancy systems to keep your missions running smoothly, even in unexpected scenarios.

The drone's enhanced transmission capabilities are supported by four built-in antennas that enable OcuSync 3 Enterprise. This feature allows for triple-channel 1080p video transmission and seamless swapping between input feeds, even in complex environments.

The Matrice 30T Thermal Drone is not only powerful but also lightweight and portable. Its compact and foldable design makes it easy to pack, carry, and deploy. It integrates wide, zoom, and thermal cameras with a laser rangefinder, capturing the aerial data you need when you need it.

The drone's superior image quality is evident in its wide camera, featuring an equivalent focal length of 24 mm, a DFOV of 84 degrees, a 12 MP 1/2'' CMOS sensor, and a video resolution of 4K/30fps. The zoom camera offers a 48 MP 1/2'' CMOS sensor, 5x-16x optical zoom, 200x max hybrid zoom, 8K photo resolution, and 4K/30fps video resolution. The thermal imaging camera provides a resolution of 640 x 512 at a frame rate of 30fps, with a measurement accuracy of +/-2 degrees Celsius or +/-2%.

The bundle also includes a DJI Dock, designed for rugged reliability and 24/7 operation, regardless of weather conditions. The dock houses the Matrice 30, enabling it to land, recharge, take off, and execute missions programmed in DJI FlightHub 2. With FlightHub 2, you can unlock full DJI Dock functionality from the cloud, manage data, plan complex flight routes, and monitor the health and status of your DJI Docks and drones remotely.

The DJI Dock is built to withstand the elements, with an IP55 rating, operating temperature range of -35 to 50 degrees Celsius, surge protection of 40kA, a backup battery that lasts up to 5 hours, and active temperature control for fast charging and drone safety.

The Matrice 30 Series Dock Version offers non-stop operations with maximum wind resistance of 12 m/s and an IP55 rating. It provides wide area coverage, with the M30 flying for 40 minutes and conducting missions up to 7 km from the Dock.

The DJI Dock is designed for simplicity and functionality, weighing less than 105 kg. It features an integrated design packed with highly integrated hardware such as a wide-angle security camera, integrated weather station, internal omni-directional antenna, RTK module, and edge computing expansion slot. Its modular design simplifies maintenance, and its upgradable design allows for private deployment and edge computing.

In conclusion, the Matrice 30T Thermal Drone and Dock Bundle with Care Enterprise Plus is a comprehensive solution for your aerial photography and videography needs, offering power, portability, safety, and superior image quality.

DJI Matrice 30 Features

  • Introducing the Matrice 30, with a cutting-edge 30x zoom camera that captures intricate imagery and videos for top-notch inspections, surveillance, and high-resolution applications
  • Unleash creativity with the Matrice 30's 48MP wide-angle camera, perfect for stunning panoramas and essential mapping needs, offering a wide field of view for diverse perspectives
  • The Matrice 30 boasts a laser range finder, reaching up to 1,200 meters, empowering precise surveying, mapping, and search and rescue missions with unmatched accuracy
  • Meet the challenge of darkness head-on with the Matrice 30T's thermal imaging camera, ideal for search and rescue, firefighting, and reliable industrial inspections under low-light conditions
  • Trust the Matrice 30's IP54 dust and water resistance, ensuring uncompromised performance and reliability even in harsh and demanding environments
  • Extend your flight time and seize opportunities with the Matrice 30, providing an impressive 50-minute flight duration for comprehensive data capture during extended missions
  • Reach new heights with the Matrice 30's 15 km transmission range, granting you unparalleled freedom to explore vast areas and capture breathtaking visuals from afar
  • Experience seamless operations with the DJI Dock, a smart ground station that automatically charges and launches the Matrice 30 for prolonged, uninterrupted missions
  • Empower your flights with the advanced Pilot 2 software, designed to enhance safety and efficiency, offering a wealth of features for confident and successful aerial missions
  • Enjoy peace of mind with DJI Care Refresh, a comprehensive insurance program guarding your Matrice 30 against accidental damage, ensuring continuous productivity and worry-free operations

Product Documents

User Manual

Key Features

  • High-performance Matrice 30T Thermal Drone with 41-min max flight time and 23 m/s max speed
  • Enhanced safety and reliability with dual-vision sensors, ToF sensors, and built-in ADS-B receiver
  • Superior image quality with wide, zoom, and thermal cameras, and laser rangefinder
  • Lightweight, portable, and foldable drone design for easy transportation and deployment
  • Rugged and reliable DJI Dock for 24/7 operation in all weather conditions

What's in the box:

  • DJI Matrice 30T Thermal Drone
  • Care Enterprise Plus
  • Dock
  • Wind Speed Gauge Module
  • Triangular Key
  • 4x Expansion Bolt
  • Sealant
  • USB-C Cable
  • 2x 1671 CW Propeller
  • 2x 1671 CCW Propeller
  • Cable Ties
  • Screws and Tools
  • (Drone Battery Not Included)
  • DJI 1 Year Limited Warranty
