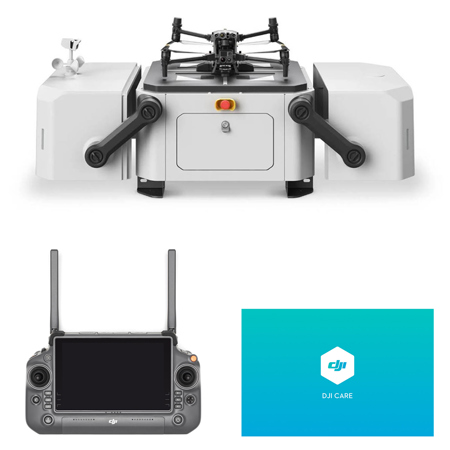

DJI Matrice 30T Thermal Drone with Dock Bundle, Care Enterprise Plus, RC Plus Controller

SKU: DJIM30TDBK1

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum flight time of the Matrice 30T Thermal Drone?

The Matrice 30T Thermal Drone has a maximum flight time of 41 minutes, allowing for extended aerial photography and videography sessions.

What are the camera capabilities of the Matrice 30T Thermal Drone?

The Matrice 30T Thermal Drone integrates wide, zoom, and thermal cameras with a laser rangefinder. The wide camera features a 12 MP 1/2'' CMOS Sensor and a video resolution of 4K/30fps. The zoom camera boasts a 48 MP 1/2'' CMOS Sensor, 5x-16x optical zoom, and video resolution of 4K/30fps. The thermal imaging camera offers a resolution of 640 x512 and a frame rate of 30fps.

What is the purpose of the included DJI Dock?

The DJI Dock houses the Matrice 30, where it lands, recharges, takes off, and executes missions programmed in DJI FlightHub 2. It is built to operate 24/7, day or night, rain or shine.

What are the safety features of the Matrice 30T Thermal Drone?

The Matrice 30T Thermal Drone is equipped with dual-vision and ToF sensors on all six sides, providing safety for both the aircraft and your mission. Its built-in ADS-B receiver offers timely warnings of any incoming crewed aircraft nearby.

What makes the Matrice 30T Thermal Drone suitable for night flights?

The Matrice 30T Thermal Drone is optimized for night flight with its FPV camera, providing clear visibility of the ground and skyline even in low-light conditions. Its smart low-light photo feature captures bright, clear images in low-light conditions.

Reviews about this item

Review Summary

2023-02-10T06:57:47

Rated 5 out of 5

Excellent bundle!

This is an excellent bundle and a must have for public safety!

Jeff B.

DJI Matrice 30 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone Kit

  • Edition

    Thermal

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated, Camera Included

  • Kit Style

    Base

  • Model

    DJI Matrice 30

  • Skill Level

    Pro

Aircraft

Jump to...
  • Color

    Black

  • Maximum Flight Time

    41 minutes

  • Takeoff Weight

    8.97 lbs (4069g)
    For C2 Certification in EU: 8.81 lbs (3998g)

  • Max Ascent/Decent Speed

    Ascent/Descent: 6 m/s, 5 m/s

  • Max Horizontal Speed

    23 m/s

  • Max Wind Speed Resistance

    15 m/s
    12 m/s during taking off and landing

  • Max Takeoff Altitude

    5,000 m (with 1671 propellers)
    7,000 m (with 1676 propellers) (without other payload)

  • Max Hovering Time

    36 minutes

  • Max Tilt Angle

    35 Degree (N-mode and Forward Vision System enabled: 25 Degree )

  • Max Angular Velocity

    Pitch: 150 Degree /sec.; Yaw: 100 Degree /sec.

  • Global Navigation Satellite System (GNSS

    GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled)

  • Hovering Accuracy Range

    Vertical: +/-0.1m (Vision System enabled); +/-0.5m (N-mode with GPS); +/-0.1 m (RTK)
    Horizontal: +/-0.3m (Vision System enabled); +/-1.5m (N-mode with GPS); +/-0.1m (RTK)

  • IP Rating

    Aircraft:
    IP55

    Remote Controller:
    IP54

    Dock:
    IP55

  • Internal Storage

    No

  • Camera Still Resolution

    48 MP

  • Video Resolution

    4K

  • Image Sensor

    Zoom Camera:
    1/2" CMOS, Effective pixels: 48M

    Wide Camera:
    1/2" CMOS, Effective pixels: 12M

  • Lens

    Zoom Camera:
    Focal length: 21-75 mm (equivalent: 113-405 mm)
    Aperture: f/2.8-f/4.2
    Focus: 5 m to Infinite

    Wide Camera:
    DFOV: 84 Degree
    Focal length: 4.5mm (equivalent: 24mm)
    Aperture: f/2.8
    Focus: 1m to Infinite

    Thermal Camera:
    DFOV: 61 Degree
    Focal length: 9.1mm (equivalent: 40mm)
    Aperture: f/1.0
    Focus: 5m to Infinite
    Sensitivity<=30 mk@F1.1

    FPV Camera:
    161 Degree

  • ISO Range

    100-25600

  • Shutter Speed

    Auto Mode:
    Photo: 1/8000-1/2 s
    Video: 1/8000-1/30 s

    M Mode:
    Photo: 1/8000-8 s
    Video: 1/8000 -1/30 s

  • Max Image Size

    Zoom Camera:
    8000 x 6000

    Wide Camera:
    4000 x 3000

    Thermal Camera:
    Infrared Image Super-resolution Mode: 1280 x 1024
    Normal Mode: 640 x 512

    FPV Camera:
    161 Degree

  • Still Photography Modes

    Single Shot

  • Photo Format

    JPEG

  • Digital Zoom

    Thermal
    20x
    Wide
    5x
    Telephoto
    20x

  • Gimbal Option

    2-Axis Gimbal

  • Mechanical Range

    Pan:'+/-105 Degree
    Tilt: -135 Degree to'+60 Degree
    Roll:'+/-45 Degree

  • Controllable Range

    Pan:'+/-90 Degree
    Tilt: -120 Degree to'+45 Degree

  • Angular Vibration Range

    +/-0.01 Degree

Sensing

Jump to...
  • Sensing Type

    Omnidirectional

  • Forward

    Detection Range: 2.0 to 124.7' / 0.6 to 38 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Backward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Lateral

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Horizontal) / 50° (Vertical)

  • Upward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 50° (Front-to-Back) / 65° (Side-to-Side)

  • Downward

    Detection Range: 1.6 to 108.3' / 0.5 to 33 m
    Field of View: 65° (Front-to-Back) / 50° (Side-to-Side)

  • Operating Environment

    Vision Systems:
    Surfaces with clear patterns and adequate lighting (> 15 lux)

    Infrared Sensing Systems:
    Large, diffuse, and reflective obstacles (reflectivity >10%)

Video Transmission

Jump to...
  • Video Transmission System

    O3 Enterprise

  • Operating Frequency

    2.4000-2.4835GHz
    5.725-5.850GHz

  • Transmitter Power (EIRP)

    2.4GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    5.8GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Battery

Jump to...
  • Capacity

    Dock: Backup Battery
    12 Ah

    Remote Controller:
    Internal Battery: 6500 mAh

    External Battery: 4920 mAh

  • Voltage

    Dock: Backup Battery
    24 V

    Remote Controller:
    Internal Battery: 7.2 V

    External Battery: 7.6 V

  • Battery Material

    Aircraft:
    Lithium ion

  • Energy

    Remote Controller:
    External Battery: 37.39 Wh

  • Battery Quantity

    4

Remote Controller

Jump to...
  • Remote Controller

    without Remote Controller

  • Max Operating Time

    Internal Battery: Approx. 3 hours 18 min
    Internal Battery'+ External Battery: Approx. 6 hours

  • Operating Temperature

    Aircraft:
    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

    Dock:
    -31 to 122 Degree F (-35 to 50 Degree C)

Physical

Jump to...
  • Dimensions

    Aircraft:
    Unfolded, excl. propellers: 18.5 x 23 x 8.4" (470 x 585 x 215mm)
    Folded: 14.3 x 8.4 x 7.6" (365 x 215 x 195mm)

    Dock:
    Dock Cover Opened: 65.94 x 34.84 x 28.93" (1675 x 885 x 735mm)
    Dock Cover Closed: 31.49 x 34.84 x 41.92" (800 x 885 x 1065mm)

  • Weight

    Aircraft:
    Including two batteries: 8.31 lbs (3770g) ( +/-10g)

    Dock:
    Not including aircraft weight: 231.48 lbs (105kg)

    BS30 Intelligent Battery Station:
    8.7 lbs (3.95kg)

  • UPC Code

    192223236110

2 Accessories for DJI Matrice 30T Thermal Drone with Dock Bundle, Care Enterprise Plus, RC Plus Controller

  • All Accessories (2)
  • Drone Accessories (1)
  • Batteries & Power Supply (1)

About DJI Matrice 30

FEATURED REVIEWS

Excellent bundle!

By Jeff B.

This is an excellent bundle and a must have for public safety!

It's the Matrice 30T Thermal Drone with Dock Bundle, Care Enterprise Plus, RC Plus Controller - a revolutionary blend of power, portability, and advanced technology. This high-tech drone is designed to deliver superior aerial intelligence, capturing high-quality footage with its 4K gimbal camera, even in the harshest environments.

Engineered for commercial use, this state-of-the-art drone offers a robust flight performance with a maximum flight time of 41 minutes, wind resistance of 12 m/s, a service ceiling of 7000 m, and a top speed of 23 m/s. Its IP55 protection ensures adaptability to adverse weather and temperatures ranging from -20 Degree C to 50 Degree C, making it a reliable choice for professional aerial photography and videography.

The Matrice 30T Thermal Drone is equipped with dual-vision and ToF sensors on all six sides, providing safety for both the aircraft and your mission. Its built-in ADS-B receiver offers timely warnings of any incoming crewed aircraft nearby, while its advanced redundancy systems ensure continued operation even in unexpected scenarios.

This innovative drone features four built-in antennas that support OcuSync 3 Enterprise, enabling triple-channel 1080p video transmission and seamless swapping between input feeds, even in complex environments. Lightweight and portable, the M30 Series is easy to pack up, carry, and deploy.

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, capturing the aerial data you need, when you need it. The wide camera features an equivalent focal length of 24 mm, DFOV of 84 Degree, a 12 MP 1/2'' CMOS Sensor, and a video resolution of 4K/30fps. The zoom camera boasts a 48 MP 1/2'' CMOS Sensor, 5x-16x optical zoom, 200x max hybrid zoom, photo resolution of 8K, and video resolution of 4K/30fps. The thermal imaging camera offers an equivalent focal length of 40 mm, resolution of 640 x512, frame rate of 30fps, and measurement accuracy of +/-2 Degree C or +/-2%.

The Matrice 30T Thermal Drone is optimized for night flight with its FPV camera, providing clear visibility of the ground and skyline even in low-light conditions. Its smart low-light photo feature captures bright, clear images, while its high-resolution thermal capabilities allow for the detection of hotspots and heat signatures.

The bundle includes the DJI Dock, a rugged and reliable solution built to operate 24/7, day or night, rain or shine. The DJI Dock houses the Matrice 30, where it lands, recharges, takes off, and executes missions programmed in DJI FlightHub 2. With FlightHub 2, you can unlock full DJI Dock functionality from the cloud, schedule missions, create and edit flight routes, and manage data collected.

The DJI Dock is built to withstand the elements, with IP55 ingress protection, operating temperature of -35 Degree C to 50 Degree C, surge protection of 40kA, backup battery of 5 hours, and active temperature control for fast charging and drone safety. The M30 Series Dock Version offers flagship-level performance with maximum wind resistance of 12 m/s and an IP55 rating, and can conduct missions and inspections up to 7 km from the Dock.

The Matrice 30T Thermal Drone with Dock Bundle, Care Enterprise Plus, RC Plus Controller is a sophisticated, advanced solution for professional aerial photography and videography.

DJI Matrice 30 Features

  • Introducing the Matrice 30, with a cutting-edge 30x zoom camera that captures intricate imagery and videos for top-notch inspections, surveillance, and high-resolution applications
  • Unleash creativity with the Matrice 30's 48MP wide-angle camera, perfect for stunning panoramas and essential mapping needs, offering a wide field of view for diverse perspectives
  • The Matrice 30 boasts a laser range finder, reaching up to 1,200 meters, empowering precise surveying, mapping, and search and rescue missions with unmatched accuracy
  • Meet the challenge of darkness head-on with the Matrice 30T's thermal imaging camera, ideal for search and rescue, firefighting, and reliable industrial inspections under low-light conditions
  • Trust the Matrice 30's IP54 dust and water resistance, ensuring uncompromised performance and reliability even in harsh and demanding environments
  • Extend your flight time and seize opportunities with the Matrice 30, providing an impressive 50-minute flight duration for comprehensive data capture during extended missions
  • Reach new heights with the Matrice 30's 15 km transmission range, granting you unparalleled freedom to explore vast areas and capture breathtaking visuals from afar
  • Experience seamless operations with the DJI Dock, a smart ground station that automatically charges and launches the Matrice 30 for prolonged, uninterrupted missions
  • Empower your flights with the advanced Pilot 2 software, designed to enhance safety and efficiency, offering a wealth of features for confident and successful aerial missions
  • Enjoy peace of mind with DJI Care Refresh, a comprehensive insurance program guarding your Matrice 30 against accidental damage, ensuring continuous productivity and worry-free operations

Product Documents

User Manual

Key Features

  • Robust flight performance with a maximum flight time of 41 minutes and wind resistance of 12 m/s
  • Integrated wide, zoom, & thermal cameras with laser rangefinder for capturing detailed aerial data
  • Includes DJI Dock for 24/7 operation, quick charging, and mission programming via DJI FlightHub 2

What's in the box:

  • DJI Matrice 30T Thermal Drone
  • Care Enterprise Plus
  • RC Plus Controller
  • Dock
  • Wind Speed Gauge Module
  • Triangular Key
  • 4x Expansion Bolt
  • Sealant
  • USB-C Cable
  • 2x 1671 CW Propeller
  • 2x 1671 CCW Propeller
  • Cable Ties
  • Screws and Tools
  • (Drone Battery Not Included)
  • DJI 1 Year Limited Warranty
