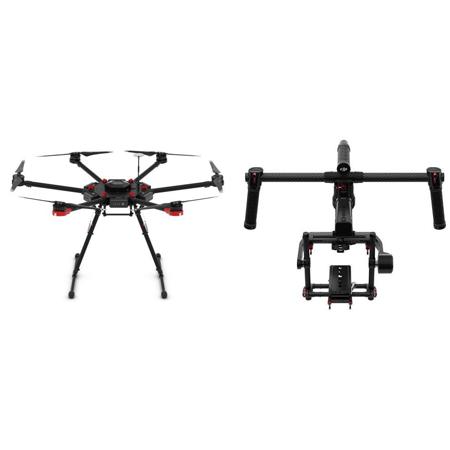

DJI Matrice 600 Hexacopter with Ronin-MX 3-Axis Gimbal Stabilizer, A3 Flight Controller Included

The Matrice 600 (M600) is DJI's new flying platform designed for professional aerial photography and industrial applications. It is built to closely integrate with a host of powerful DJI technologies, including the A3 flight controller, Lightbridge 2 transmission system, Intelligent Batteries and Battery Management system, for maximum performance and quick setup.

Total Integration
The modular design makes the M600 easy to set up and ready to use in just minutes. Its dust proof propulsion systems simplify maintenance while actively cooled motors make for reliable operation during extended periods of time. All Zenmuse cameras and gimbals are natively compatible and a maximum payload of 6 kg allows it to fly the Ronin-MX gimbal and a range of cameras from Micro Four Thirds systems to the RED Epic.

Smart Flight Safety
The M600 uses sine-wave driven, intelligent ESCs to ensure it performs accurately, safely and efficiently while A3's self-adaptive flight systems adjust flight parameters automatically based on different payloads. The A3 can be upgraded with two additional GNSS and IMU units to A3 Pro or with D-RTK GNSS for enhanced accuracy (Not Included).

Extended Flight Time And Transmission Range
The M600 features an extended flight time and a 5 km long-range, ultra-low latency HD image transmission for accurate image composition and capture. By using 6 small DJI Intelligent Batteries, allowing it to easily be shipped to wherever it is needed. A customized battery management system and power distribution board allows all six batteries to be turned on with one button press and keeps the system in flight in the event of a failure of a single battery and allows users to check the battery status in real-time during flight.

Professional HD Transmission
DJI Lightbridge 2 has been designed from the ground up to meet the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI and 3G-SDI ports support video output at up to 1080p/60fps or a broadcast standard output of 720p/59.94fps and 1080i/50fps.

Powerful App Control
The M600 supports the DJI GO app and the brand new DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength and much more, straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, photo or video capture on any Zenmuse X series camera and remote focus and aperture on the Zenmuse X5 and X5R cameras. The brand new DJI Assistant 2 supports firmware updates and the new Ground Station and comes with a built-in flight simulator.

Open To Development
The M600 is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for industrial applications. It has a dual parallel CAN and API ports for connecting DJI devices including the Guidance sensor system, the RTK GNSS units or third party components of your choice.

RONIN-MX

Engineered For Professionals
Cinematic film making demands rapid setup and a host of camera configurations. The Ronin-MX has been designed to carry many of the cameras used every day on sets worldwide and Smooth Track algorithms ensure movements are smooth in every configuration. A repositioned battery improves balance while stability is enhanced by a camera cage that locks mounted cameras in place at the top and at the bottom. Silent motors prevent on set mics picking up motor noise.

Powerful And Accurate
Designed to resist high G-forces using powerful motors and IMUs, the Ronin-MX is engineered to maintain stability and hold horizon when mounted to an aircraft or a vehicle. When mounted to the M600 aerial system, it communicates directly with DJI's flight controller and when attached to vehicles, it connects to an optional GPS module allowing it to stabilize actively for a smoother shot.

Freedom To Move
A slip ring allows the Ronin-MX to rotate 360deg continuously when mounted to aircraft or vehicles, opening up more creative options. This is further enhanced by an increase in tilt axis range from 90deg straight down and beyond to 135 deg. Popular features of the Ronin series such as the three modes of operation and Smooth Track are also present, giving film makers a range of creative angles and movements.

Wireless Control And Transmission
The Ronin-MX is compatible with Lightbridge 2, providing long-range HD video transmission from the air to the ground from up to 3.1miles (5km) away. If combined with the optional DJI Focus and Focus Expansion Module, focus or aperture can also be pulled remotely with a twist of the wrist. An optional Remote Start/Stop add-on provides the ability to control shooting on a range of airborne cameras.

Engineering

Refined Balance
A redesigned structure moves the Ronin-MX battery from the back to the front. This centers the weight of the camera, minimizing instability when flying directly forwards. It also dramatically increases the Ronin's agility and ability to handle rapid movements or high-G situations.

Magnesium Construction
Built extensively of lightweight magnesium, the Ronin-MX weighs just 6.11lb (2.77kg). This lightness allows it to be mounted to the M600 even when equipped with cameras as advanced as the RED EPIC and to vehicles with a minimum impact on vehicle handling.

Power

Strengthened Motors and Escs
A combination of stronger motors and ESCs makes the Ronin-MX 50% more powerful than the Ronin-M. This additional stiffness and power allows the system to better withstand wind resistance when mounted to moving vehicles and aircraft, as well as more rapid movements.

External Camera Battery
Cameras such as the RED EPIC need an external battery for power. A dedicated position designed for an optional battery plate provides an easy, cable free mounting point for a 2nd DJI Intelligent Battery. This provides two 12V P-tap power sources for powering cameras and accessories.

Intelligent Batteries
Intelligent Ronin-MX batteries are compact, light and offer a long battery life of 3 hours. Multiple batteries can be easily brought to set for a full day of filming. Over-charge and over-depletion protection is built in, as is individual cell charge balancing. Remaining power is shown by clear LEDs and in the DJI GO app.

Control

Remote Focus Control
The DJI Focus uses DJI's expertise in brushless motors for previously unheard of levels of precision and accuracy. The brushless motor puts just +/-0.02 of accuracy in the hand so that turning the remote is just like turning the lens itself. It also features high torque and a fast reaction speed so that subjects can be kept in focus no matter how they move. When upgraded with a Focus Expansion Module, the Focus can control aperture or focus across Lightbridge 2's 3.1miles (5km) range.

Precision Solo Camera Control
Simple to set up and use, the DJI Ronin Wireless Thumb Controller makes controlling the Ronin-MX easy and intuitive, enabling the capture of shots that would otherwise be impossible for a single operator.

2nd Operator Control
A wireless 2.4GHz remote controller is included with the Ronin-MX enabling a 2nd operator to remotely control pan, tilt, roll and other functions. By using the optional Lightbridge 2 Remote Controller, you have long range control of the Ronin-MX up to 3.1 miles (5km).

Fast, Precise Balancing
Save time and start shooting professionally stabilized video in under five minutes. Mount your camera to the Ronin-M, quickly balance it and then tap a button. The upgraded ATS (Auto Tune Stability) technology is more precise than before and completes the tuning and balancing processes with no tools necessary.

Cinematic Smoothness
Even with only one operator, Smooth Track technology ensures the Ronin-M translates movements into smooth camera angle changes. Smooth Track settings from speed to deadband to acceleration are fully customizable. A 'Single Axis Follow Mode' enables two axis to be locked while Smooth Track guides the camera along only one axis of motion.

Flexible Modes of Operation
Three modes of operation, found on all Ronin series products, make the Ronin-MX a powerfully flexible camera stabilization system. Underslung Mode is the most common shooting mode, with the Ronin-MX held in front of the user. Upright Mode reverses Underslung Mode and puts the camera higher up making it ideal for raised shots above people or through sunroofs. Briefcase Mode makes it a narrow platform that fits easily through narrow hallways and doors.

Built-in Power Distribution
A dedicated power distribution box keeps wiring to a minimum while providing power to essential accessories. Two regulated 12V P-taps, one 500mAh full-size USB connector and a DJI Lightbridge connector enable connectivity and power to everything a film maker needs.

Universal Mounting
Mount the Ronin-MX to aircraft easily using a specially designed mounting plate. A separate universal Quick Release system that doubles as a vibration dampening system allows the Ronin-MX to be connected to everything from jib to tripod and anything in between. This plate isolates the Ronin-MX from unwanted vibrations coming from the platforms it is mounted to and makes it usable everywhere.
