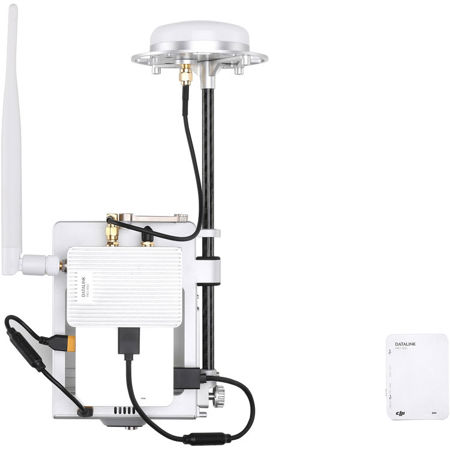

DJI DATALINK PRO 900-G Ground System Kit (Base Station Only)
See all DJI items

DJI DataLink Pro 900-G Ground System Kit (Base Station Only)

SKU: DJIMATRDRTK
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

DJI DataLink Pro 900-G Specifications

  • Transmission Power

    CE: 13 dBm
    FCC: 27 dBm
    Canada: 27 dBm
    Australia: 27 dBm
    Japan: 10 dBm

  • Transmission Range

    Japan: 1200 m
    Australia: 2000 m
    FCC: 2000 m
    CE: 300 m

  • Power Consumption

    1.2 W

  • Voltage

    DC 9 V

  • Max. Current (Transmitting Signal)

    130 mA

  • Max. Current (Receiving Signal)

    70 mA

  • Frequency Band (MHz)

    CE: 869.525
    FCC: 903-925.5
    Canada: 903-925.5
    Australia: 916.5-925.5
    Japan: 923.1-926.3

  • Serial Data Rate

    115200 bps

  • Antenna Options

    Vertically polarized

  • Supported Interfaces

    USB, UART, CAN

  • Supported Max. Mobile Station Number

    Full Duplex Mode: 1
    Broadcast Mode: 32

  • Operating Temperature

    32 degree to 113 degree F (0 degree to 45 degree C)

  • Storage Temperature

    -40 degree to 185 degree F (-40 degree to 85 degree C)

  • Humidity

    5% to 95%, non-condensing

  • Dimension (without Antenna)

    3.26 x 2 x 0.56" (82.9 x 51 x 14.35mm)

  • Weight (without Antenna)

    1.9 oz (53g)

  • UPC Code

    6958265154379

About DJI DataLink Pro 900-G

DataLink Pro
DataLink Pro is a wireless datalink designed magnetic interface, with support for the DJI A3 and D-RTK. It features a number of features and work modes enabling it to be tuned for the needs of different usage scenarios.

Multiple Data Transmission Modes
Two data transmission modes are supported: Full Duplex and Broadcast. In Full Duplex Mode, two-way data transmission is carried out between one base station and one mobile station. In Broadcast Mode, data is simultaneously transmitted from one base station to a maximum of 32 mobile stations.

Multiple Ports
A range of ports are provided to allow for use with highly customized aircraft, including USB, CAN and UART. Ports can be individually selected by toggling a switch, and data is automatically transmitted from one port to another.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • DATALINK PRO 900-G Ground System Kit
  • DJI 1 Year Warranty
