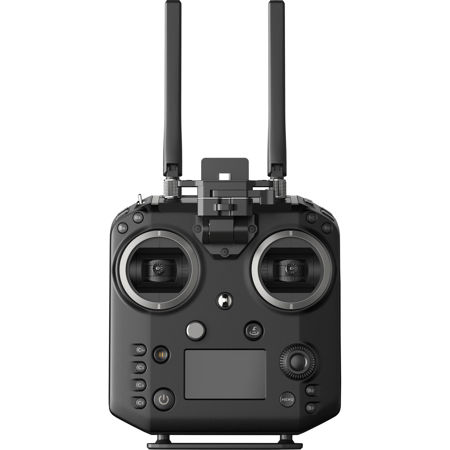

DJI Cendence S Part 02 Remote Controller for Matrice 200 Series V2 Aircraft

The Cendence remote controller is a professional-grade, customizable remote controller designed for full integration with other advanced DJI products like the Inspire 2 and CrystalSky monitor. Cendence offers modular components and controls that realize the full potential of Inspire 2 applications. It provides up to five analog control channels with over ten customizable buttons, improving overall control efficiency. Its design offers antenna interchangeability where a high-gain antenna can augment the power of DJI Lightbridge technology, significantly increasing overall anti-interference and image quality. Cendence comes with the fully integrated Cendence Monitor Mounting Bracket and HDMI, SDI, USB and CAN ports provide robust expansion capabilities.

• Multi-Drone Compatibility
• Flexible and Efficient Design
• Customizable Buttons
• New LCD Display

Dials, Levers and Knobs
The two knobs on the front panel control gimbal pitch and yaw and the right/left levers and Focus Adjustment Knob used to tune flight controller settings and the gimbal camera in real-time, allowing you to pull focus and set aperture.

Camera Settings
For quick camera adjustments, you can customize several shortcut buttons for particular groups of settings or save frequently used settings.

Custom Control
Customizable buttons can quickly enable or disable frequently used functions like focus peaking, color waveform, obstacle avoidance and home point resetting. They can also close warnings and tips mid-flight, all without using an app.

Button Combinations
Rotate the dials or toggle the right/left levers while holding certain buttons to control gimbal roll, shutter speed or ISO.

Detachable Design, CrystalSky Compatibility
The CrystalSky monitor mounts to the Cendence remote controller via the Cendence Monitor Mounting Bracket. The Cendence remote controller's antennas, PCB, mounting bracket and battery are all detachable, making its hardware easily upgradable, allowing you to customize the controller for compatibility with future DJI aircraft.

Dual Operator Control
When precision camera control is required, Cendence can connect either as a Master or Slave controller with the Inspire 2's remote controller or another Cendence remote controller.

Multiple Ports
• SDI and HDMI ports support broadcasting at 1080i 50 fps and 720p 60 fps
• Connect DJI Focus or other compatible accessories via the CAN port
• The USBA port supports connectivity with other mobile devices

Dual-Frequency Directional Antennas
Cendence's redesigned patch antenna significantly increases gain, ensuring high-quality video transmission at up to 10 Mbps within 4 km. Increased gain also extends the max transmission distance from 7 km to 10 km, ensuring a more stable signal transmission, smoother control and overall enhanced safety. Moreover, the antenna transmits signal in a specific direction, which effectively reduces interference from other directions and makes transmission even more stable and reliable.

Battery system
The Cendence remote controller uses a detachable battery that operates for up to four hours. If you run out of power, just swap in a charged battery or charge Cendence via the power port. Cendence uses the same batteries as CrystalSky monitor for enhanced product synergy.

Multiple Accessories
Practical accessories make using Cendence easy. The Cendence Support Rig handles part of the controller's weight, making it easier to hold for extended periods of time. Control Stick Covers prevent dirt and dust from entering both sticks, ensuring smooth and reliable control. The Interchangeable Mobile Device Holder lets you attach a phone or tablet instead of a CrystalSky monitor.

Compatibility
Cendence is currently compatible with Inspire 2 and Matrice 200 series aircraft.
