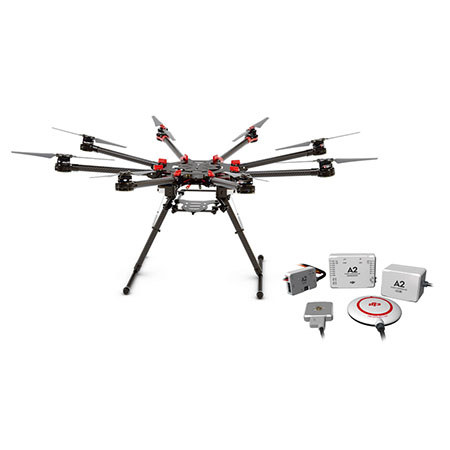

DJI Spreading Wings S1000+ Octocopter with A2 Flight Controller

The S1000+ puts DJI's latest professional-line technology into their most advanced octocopter to date. Incorporating a recently developed power distribution board and a new propulsion system, the S1000+ has a maximum takeoff weight of 11kg and is fully compatible with DJI's Zenmuse Z15-5D gimbals (gimbal not included).

• Large Carrying Capacity, Strong and Stable
• Highly Portable, with Foldable Arms
• New Power Distribution System
• Removable Upper Center Board
• Sparkproof Plug
• Professional Quality
• Wide Range of Shooting Angles
• Retractable Landing Gear
• Compatible with Zenmuse Gimbals
• Reduced Vibrations, Clearer Footage
• Greater Power
• Innovative Arm Design

Large Carrying Capacity, Strong and Stable Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+. The S1000+'s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You're flying in a variety of flight conditions with confidence, knowing your gear is safe.

Highly Portable, with Foldable Arms
With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.

Removable Upper Center Board
The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before. This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.

New Power Distribution System
A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.

Sparkproof Plug
Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.

Professional Quality
Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.

Maximum flight time is tested on a windless day with a payload of 9.5kg, hovering at a height of 2 meters.

Wide Range of Shooting Angles
Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.

Retractable Landing Gear

Compatible with Zenmuse Gimbals
Full compatibility with DJI's entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.

Reduced Vibrations, Clearer Footage
The S1000+'s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.

Greater Power
A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.

Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.

Innovative Arm Design
Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

Note: This aircraft not ready-to-fly (RTF): Assembly is required, and batteries and a transmitter are not included. Please refer to the S1000+ User Guide for details of required hardware and installation instructions.

Included A2 Flight Controller System

The DJI A2 is a complete flight control system for various multi-rotor platforms, for commercial and industrial AP applications. It opens an unprecedented era of precise positioning and perfect flight control in harsh environments for flight control systems. Its high performance antenna, low noise anti-interference front-end RF design, accurate position and speed calculating, represent comprehensive technological breakthroughs. These combined features make the positioning performance of the GPS Pro near perfection; with higher accuracy performance, larger measuring range and a unique damping design and calibration algorithm, the IMU is able to provide stable output even in high vibration and large movement environments.

The built-in receiver system directly supports the popular transmitters and it also supports a variety of external receivers. Combined with abundant output interfaces and flexible configuration, it makes the flight controller competent for complex control and airborne equipment operation; the new dual CAN-Bus design greatly improves the data throughput and stability of the system. Based on the technology and design philosophy of DJI's Ace series of high-performance controllers, the A2 offers you a brand new flight experience. The A2 adopts a full metal case design and utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renowned flight algorithm in flight control and UAV field.
