DJI S1000+ Specifications

  • KV

    400rpm/V

  • Max Power

    500W

  • Working Current

    40A

  • Working Voltage

    6S LiPo

  • Signal Frequency

    30Hz - 450Hz

  • Drive PWM Frequency

    8KHz

  • Material

    High strength performance engineered plastics

  • Diagonal Wheelbase

    1045mm

  • Frame Arm Length

    386mm / 15.20"

  • Center Frame Diameter

    337mm / 13.27"

  • Stator Size

    41 x 14mm / 1.61 x 0.55"

  • Foldable Propeller Size

    15 x 5.2" / 381.00 x 132.08mm

  • Landing Gear Size (L x W x H)

    460 x 511 x 305mm / 18.11 x 20.12 x 12.01"

  • Weight

    Frame Arm(Including Motor, ESC, Propeller ): 325g / 11.46oz
    ESC(With Radiators): 35g / 1.23oz
    Foldable Propeller: 13g / 0.46oz
    Motor (With Cooling Fan): 158g / 5.57oz
    Flight Parameters
    Takeoff: 6.0kg / 13.23lbs - 11.0kg / 24.25lbs, Total: 4.4kg / 9.70lbs

  • UPC Code

    6958265110139

3 Accessories for DJI Spreading Wings S1000+ Octocopter, Supports A2 and WooKong-M FCs Controllers (Not Included)

  • All Accessories (3)
  • Landing Gear (3)

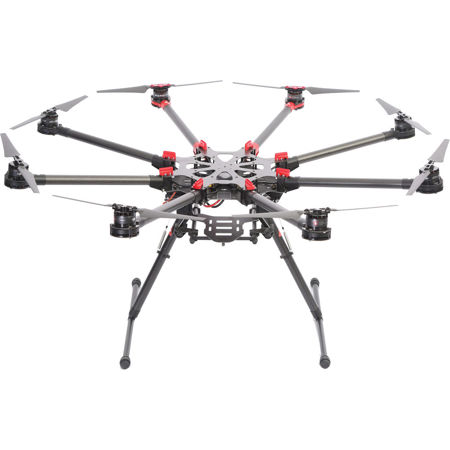

About DJI S1000+

Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+. The S1000+'s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You're flying in a variety of flight conditions with confidence, knowing your gear is safe.

Highly Portable, with Foldable Arms
With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.

Removable Upper Center Board
The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before. This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.

New Power Distribution System
A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.

Sparkproof Plug
Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.

Wide Range of Shooting Angles
Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.

Compatible with Zenmuse Gimbals
Full compatibility with DJI's entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.

Reduced Vibrations, Clearer Footage
The S1000+'s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.

Greater Power
A 40A electronic speed controller (ESC), is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg. the latest motor adopts a single wire stator design, offering improved heat dissipation, better performance and a tidier, more reliable system.

Innovative Arm Design
Each arm is designed with an 8deg. inversion and a 3deg. inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.
