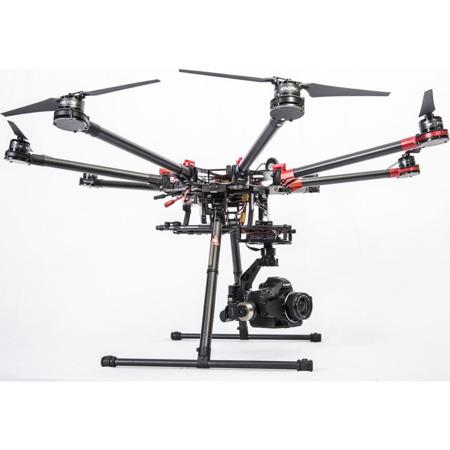

DJI Spreading Wings S1000 Octocopter with Wookong-M Stabilization Controller and Z15-BMPCC Aerial Gimbal

The DJI DJIS1000WBM is a pack of Spreading Wings S1000 Octocopter with Wookong-M controller and Z15-BMPCC Gimbal.

Spreading Wings S1000
Spreading Wings S1000 is specially designed for High level professional aerial photography and cinematography.

Safe And Stable
The S1000's V type mixer design provides large amounts of propulsion while improving power efficiency. Combined with a DJI flight controllers, it is promised to remain stable even with the loss of a rotor. Integrated into the center frame is a power distribution system using patented coaxial cable connector. It is more efficient, reliable and easy to install and eliminates the need for soldering. All frame arms as well as the retractable landing gear are made from carbon fiber, ensuring light weight and high structural stability.

Portable Easy To Use
All eight arms can be completely folded down and the 1552 folding propeller can be tucked away, minimizing the S1000's size for transportation. To fly, simply lift the frame arms up, lock them in place with the red clips and power up the system. This greatly saves on pre-flight prep time.

Sparkproof Plug
Its main power cord uses an AS150 sparkproof plug and an XT150 plug, preventing creators from mixing up polarity when plugging in the battery and preventing short circuits.

Professional Octocopter
Weighing approximately 4kg with a maximum takeoff weight of about 11kg, the S1000 can easily carry equipment as heavy as a 5D mark 3. Used with a 6S 15000mAh battery it can fly for up to 15 minutes.

Low Gimbal Mounting Position
The gimbal is mounted low on the frame on a specially designed bracket. When combined with retractable landing gear, it offers a clear and wide shooting angle.

New Damping Design
Gimbal and battery are mounted to the same bracket, with dampers placed between the bracket and the frame. This significantly reduces high-frequency vibrations and makes shots clearer and sharper. The battery tray's position also makes it more stable and convenient for mounting and dismounting.

Innovative Frame Arm Design
Each frame arm is designed with an 8deg. inversion and a 3deg. inclination, making the aircraft more stable when rolling and pitching yet more flexible when rotating.

Propulsion System
Each frame arm has a built-in 40A electronic speed controller (ESC). When combined with its 4114 pro motor and high performance 1552 folding propellers, it is capable of a maximum thrust of 2.5Kg.

Wookong-M
DJI Wookong Multi-Rotor stabilization controller is a complete flight system for all multi-rotor platforms for commercial and industrial AP applications. Unlike others, WooKong allows the use of regular ESC commonly used in RC helicopters without any wiring modification. Heli mode setup provides a seamless transition for current Ace One AP professionals. WK-M utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renowned flight algorithm in autopilot and UAV field.

9 Types Of Multi-Rotors And A Customized Motor Mixer
Support 9 traditional motor mixer: Quad I, Quad X, Hexa I, Hexa V, Hexa Y, Hexa IY, Octo X, Octo I, Octo V. It's a UAS that targeted at commercial and industrial multicolor platforms with simple configuration, easy installation and stable performance.

Built-In Gimbal Stabilization Function
The gimbal stabilization module is compatible with most 2-axis gimbal systems. The system will adjust the camera according to the attitude of the aircraft after setting the parameters the first time. The scope of the gimbal servo output frequency is 400hz, 200hz, 100h and 50hz, the higher frequency output makes the adjustment more efficient. At the same time, the limit of the gimbal servo rolling and pitching is extended to 90deg..

Support iPad Ground Control Station (GCS)
WooKong-M GCS now supports iPad (currently iPad 3, iPad4, iPad mini), the only thing you need to do is to plug in a Bluetooth datalink and the BTU module. Gone are the days of the heavy laptop, now you don't need to install maps and drivers, forget about the Windows OS version compatibility problems and don't worry about Google Earth. Without long cables, it is as easy to control the aircraft with ground station as play a game on your iPad. More-over the trend of using the iPad Waypoint will be another highlight.

New Assistant Software for Smartphone
The WooKong-M now provides assistant software for iPhone4s, iPhone5, iPad3, iPad4, iPadmini, iPod5. You can do parameter adjustments at any time on your mobile devices, using only an LED indicator with a built-in Bluetooth module which makes it easier and convenient. It uses low power Bluetooth to minimize the power consumption of mobile devices. It is easy to use and will automatically save your last connection records. The password mechanism ensures safety link. Parameters can be automatically synchronized to the Cloud Server and can be restored immediately when you changed mobile devices.

Supporting Futaba S-bus receiver
Compatible with almost all radios-PCM or 2.4Ghz

Power Monitoring Unit
Specially designed for WKM to solve the high power consumption problem of the power support system. It contains two power outputs for the entire WKM system and receiver separately, a battery voltage monitor and two CAN-Bus interfaces.

Built-in Damper
Small footprint and weight offer ease of installation in tight spaces, for various aircraft sizes.

Precise Position and Altitude hold
With WKM, the multirotors will have position and altitude lock in windy conditions. Precise hovering in less than 2m horizontal and 0.5m vertical.

High Accuracy and Driving Handfeel
With the WKM, flying a multi-rotor will be as easy as driving a car. The pilot is released from the stress of controlling the multi-rotor and able to pay more attention to other tasks such as camera angle, instead of focus on flying.

Point of Interest (POI)
WooKong-M has a new function: Point of Interest. When the GPS signal is good, users can record the present position of the aircraft as a point of interest by the preset switch on the remote control. The aircraft could achieve a circle flight around the point of interest with the nose in the point in an area of 5 meters to 500 meters radius, when the rolling command is given. This function is easy to set up and convenient to operate, it is suitable for all-round shooting of a fixed scenic spot.

RTH Switch from Transmitter
In addition to the function of failsafe RTH, WooKong-M now has a new function of RTH switch from transmitter. It is unnecessary to turn into failsafe mode.

Zenmuse Z15-BMPCC
The DJI Zenmuse Z15-BMPCC gimbal represents a breakthrough in Zenmuse precision, offering a control range of just +/-0.01deg.. Used with a DJI A2 professional flight controller and a professional DJI aerial system, it will keep the BMPCC stable and controllable even in strong winds or intense maneuvers.

Built for the BMPCC
The Zenmuse Z15-BMPCC is built only for the Black Magic Pocket Cinema Camera, known for true digital film quality images through a feature film style 13 stops of dynamic range, Super 16 sensor size, high quality lossless CinemaDNG RAW and Apple ProRes recording. All of this is packed into a small body, making the Black Magic Pocket Cinema Camera ideal for aerial cinematography and photography.

HDMI-AV/HD module
Weight is minimized using a video output module offering camera shutter and other features while transforming the camera's HDMI signal into an AV signal first person view. Wiring has been kept to a minimum to further reduce weight.

3-axis rotation control
The 3-axis Zenmuse Gimbal system's creative mechanical design makes control through the transmitter stick both intuitive and easy. Its internal slip rings avoid complicated wiring. Both power and signal lines have been integrated into gimbal's tubes, resulting in a completely unhindered control axis that offers a maximum yaw of +/-360deg., pitch of +50deg./-140deg. and a roll of +/-40deg..

Multiple control modes
Three camera control modes are offered to maximize creativity and ease of flight. Orientation-locked, Non Orientation-locked and Back to Mid-point (Horizontal). All three modes can be switched between, quickly and easily in line with the needs of each shoot.

A total solution
The Zenmuse Z15-BMPCC is ideal for the S900 platform and works with other DJI products including the A2 and WooKong-M multicolor flight controllers. Used with the DJI Lightbridge HD digital video downlink or an iOSD Mark II and a 5.8G video link, it is a Total Solution for aerial photography and cinematography.

Gimbal servo drive module
What gives every Zenmuse its precision is the specially designed Gimbal Servo Drive Module. Each of these is tailored to the weight and balance of the camera it has been designed to move. This significantly improves control and stability, maximizes torque, while minimizing vibration.

Built in independent IMU module
A new stabilizing algorithm providing more stability than ever before and extremely precise induction devices combine to create effortless attitude control.
