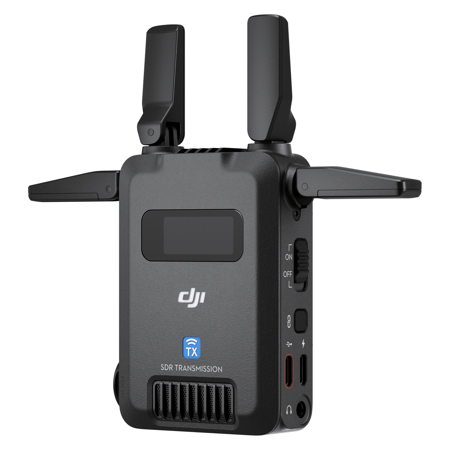

DJI SDR Transmission Transmitter

SKU: DJISDRTT MFR: CP.RN.00000400.01
Earn VIP Reward Points

Key Features

  • Achieve reliable video transmission with the DJI SDR, offering robust connectivity.
  • Enjoy low latency (80ms via SDR) for real-time monitoring and seamless broadcasting.
  • Transmit up to 3km (FCC) with this wireless video transmitter, perfect for outdoor shoots.
  • Experience high-quality video coding with H.264 for efficient streaming and recording.
  • Compact & lightweight (5.11oz), this transmitter is ideal for on-the-go video production.
  • Versatile power options: USB-C or NP-F battery (not included) for flexible usage.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DJI SDR Transmission Specifications

  • Ports

    SDI Input Port
    HDMI Input Port
    3.5mm Stereo Jack
    USB-C Firmware Update Port
    USB-C Power and Gimbal Communication Port

  • Operating Frequency

    SDR Operating Frequency
    Non-DFS Frequency Band:
    2.4000-2.4835 GHz
    5.725-5.850 GHz
    DFS Frequency Band:
    5.470-5.725 GHz

    Wi-Fi Operating Frequency
    2.4000-2.4835 GHz
    5.150-5.250 GHz

  • Transmitter Power (EIRP)

    SDR:
    2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (SRRC/CE/MIC)

    5.470-5.725 GHz:
    < 30 dBm (FCC)
    < 23 dBm (CE/MIC)

    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 14 dBm (CE)
    ¼±30 dBm (SRRC)

    Wi-Fi:
    2.4000-2.4835 GHz:
    < 26 dBm (FCC)
    < 20 dBm (SRRC/CE/MIC)

    5.150-5.250 GHz:
    < 26 dBm (FCC)
    < 23 dBm (SRRC/CE/MIC)

  • Wi-Fi Protocol

    802.11b/a/g/n/ac/ax
    Supports 2 x2 MIMO Wi-Fi

  • Max Bandwidth

    SDR: 20 MHz
    Wi-Fi: 20 MHz

  • Max Bitrate

    SDR: 20 Mbps
    Wi-Fi: 8 Mbps

  • Power Consumption

    8.2W

  • Power Supply

    USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
    USB-C Power Supply Type 2: 6.8-17.2 V DC
    NP-F Battery Power Supply Voltage: 6.8-8.4 V

  • Input Video Format

    1080p: 23.98/24/25/29.97/30/50/59.94/60fps
    1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
    720p: 50/59.94/60fps

  • Input Audio Format

    SDI embedded, HDMI embedded

  • Video Transmission System

    SDR + Wi-Fi

  • Video Transmission Latency

    SDR: 80 ms
    Wi-Fi: 110 ms

  • Video Coding Format

    H.264

  • Max Transmission Distance

    SDR:
    3 km (FCC)
    2 km (CE/SRRC/MIC)

    Wi-Fi: 200 m

  • Operating Temperature

    14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

  • Battery Info

    Required, Not Included

  • Battery Material

    Lithium ion

  • Battery Type

    NP-F

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    Excluding Antennas: 3.40 x 2.51 x 1.25" (86.5 x 64 x 32mm)

  • Weight

    5.11 oz (145g) (Approx.) (including antennas)

  • UPC Code

    6941565983985

Related Articles & Videos

New DJI SDR Transmission System Delivers Unparalleled Performance In A Compact Package

New DJI SDR Transmission System Delivers Unparalleled Performance In A Compact Package

Today marks the introduction of DJI’s brand-new SDR Transmission line of Transmitters and Receivers. The DJI SDR Transmission system leverages both SDR (Software-Defined Radio) and Wi-Fi video transmission technologies into an easy-to-use solution that delivers unparalleled video transmission perfor...
Read more

About DJI SDR Transmission

No delays, no interruptions

Discover the power of DJI's SDR Transmission System, stable and resistant to any interference. This advanced technology utilizes both SDR (or Software-Defined Radio) and Wi-Fi video transmission modes to help your video feed remain clear and uninterrupted.

No delays, no interruptions
Strong connection even from 1.8 miles away

Strong connection even from 1.8 miles away

Capable of reaching distances up to 3 kilometers or about 1.8 miles away, this system is the one to use for wide-area filming setups. Even if you’re filming a fast-paced sports event, your signal will stay strong, providing a reliable connection no matter the distance.

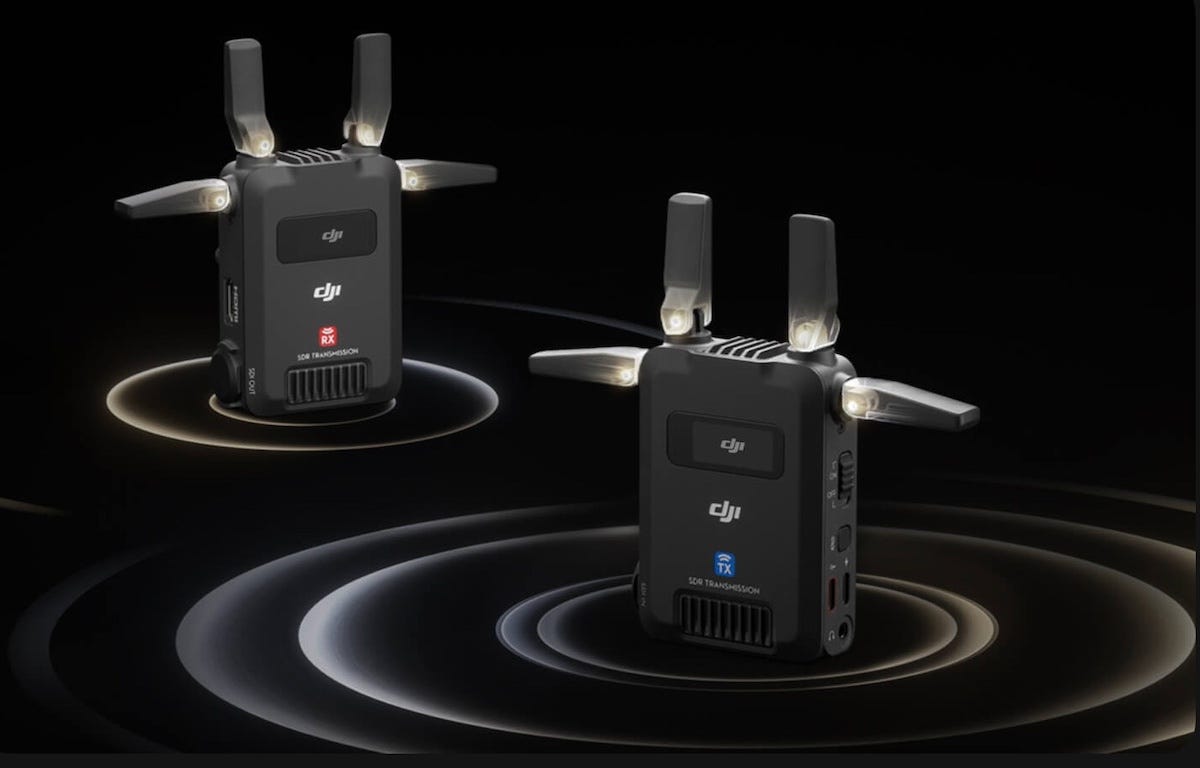

Hop across 2.4 GHz, 5.8 GHz, and DFS

Hop across 2.4 GHz, 5.8 GHz, and DFS

Never worry about signal interference ever again! DJI SDR Transmission System supports seamless auto frequency hopping across 2.4 GHz, 5.8 GHz, and DFS frequency bands. If it detects interference, it automatically switches to the optimal channel.

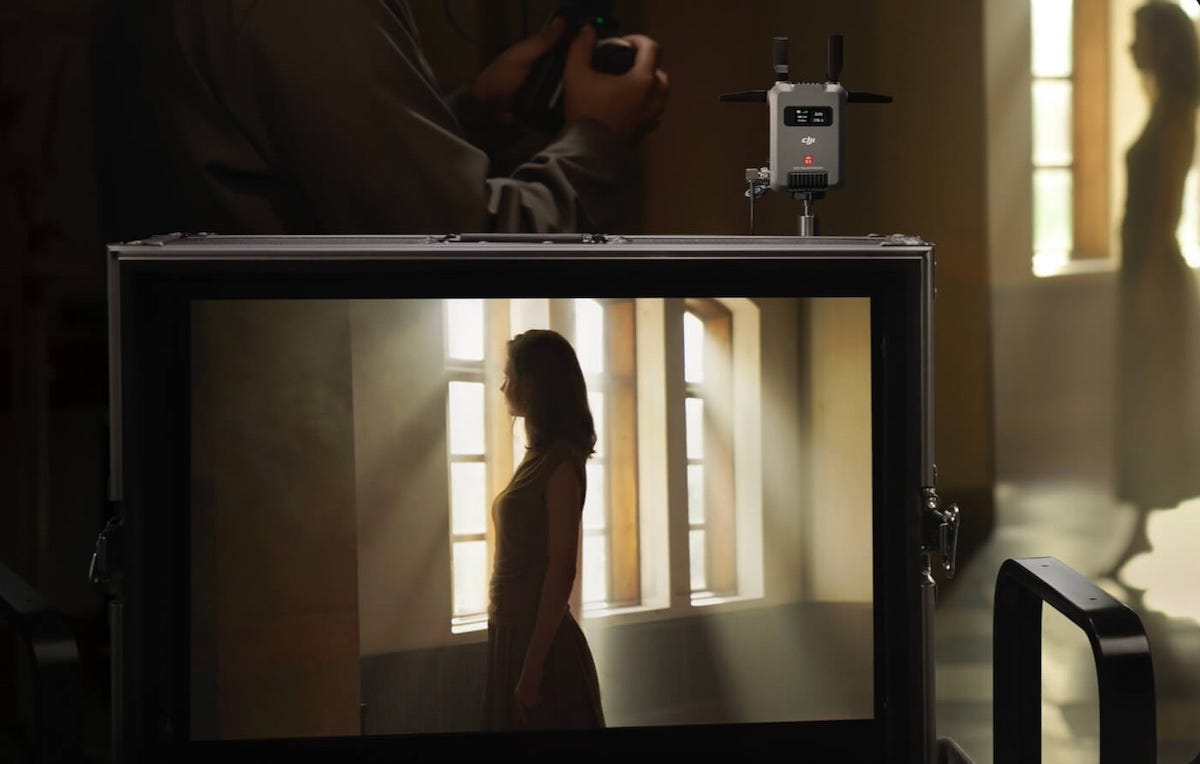

High bitrate and image quality

High bitrate and image quality

No more choppy video feeds when it comes to the DJI SDR Transmission System. Stream live feeds in stunning 1080p Full HD at 60 frames per second, with a high bitrate of up to 20 Mbps. Yup, that means smooth, high-quality video perfect for professional monitoring and collaboration.

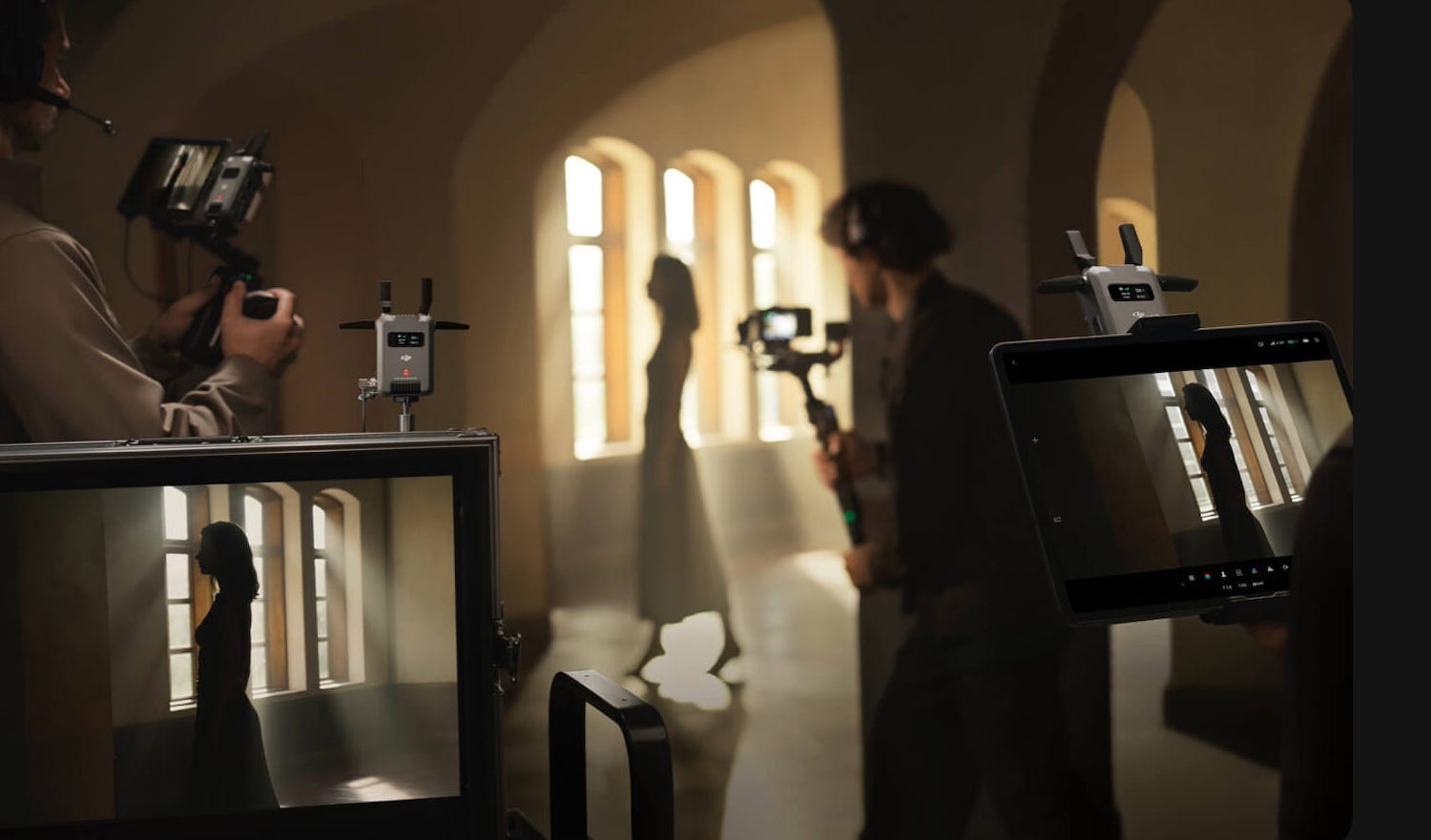

Connect to multiple receivers at the same time

Connect to multiple receivers at the same time

Broadcast Mode allows the user to connect to an unlimited number of receivers. That’s a nice feature that allows high-quality monitoring experience in professional environments. Seamless connection is key!

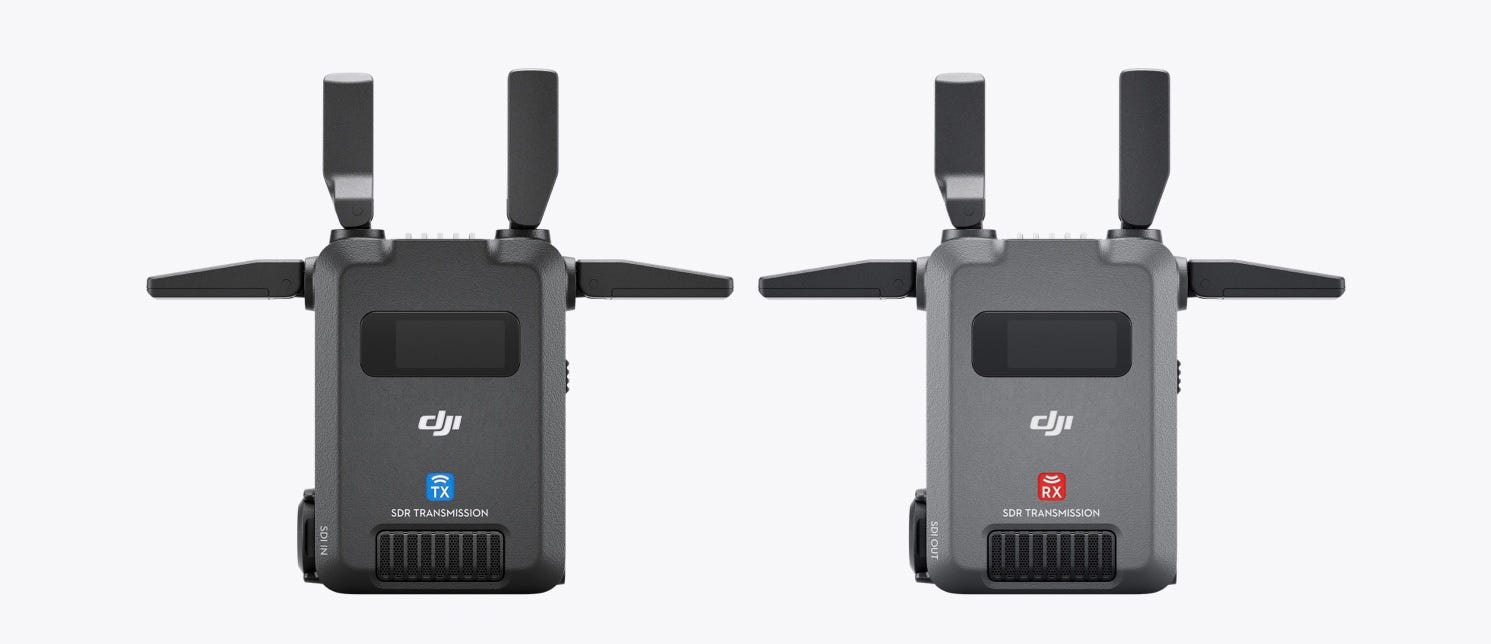

Ideal for on-the-go filmmakers

The DJI SDR Transmission System is compact, weighing 145 grams. Each transmitter features foldable antennas for easy storage. This makes it ideal for on-the-go filmmakers who need a reliable and portable transmission solution.

Ideal for on-the-go filmmakers

Traditional battery options

For those who prefer traditional battery options, the transmitter and receiver both support industry-standard NP-F batteries, offering a voltage range from 6.8 to 8.4 V for reliable and long-lasting power. Additionally, the USB-C power supply compatibility increases your flexibility, allowing you to power the system through a standard PD protocol charger rated at 9 V and 2 A.

Power supply options

Ronin compatibility & remote control

The DJI SDR Transmission System integrates seamlessly with the DJI RS 4 Pro, DJI RS 4, and DJI RS 3 Pro gimbals. Power the transmitter directly from the gimbal and say bye extra batteries and cables. Additionally, you can control the gimbal remotely.

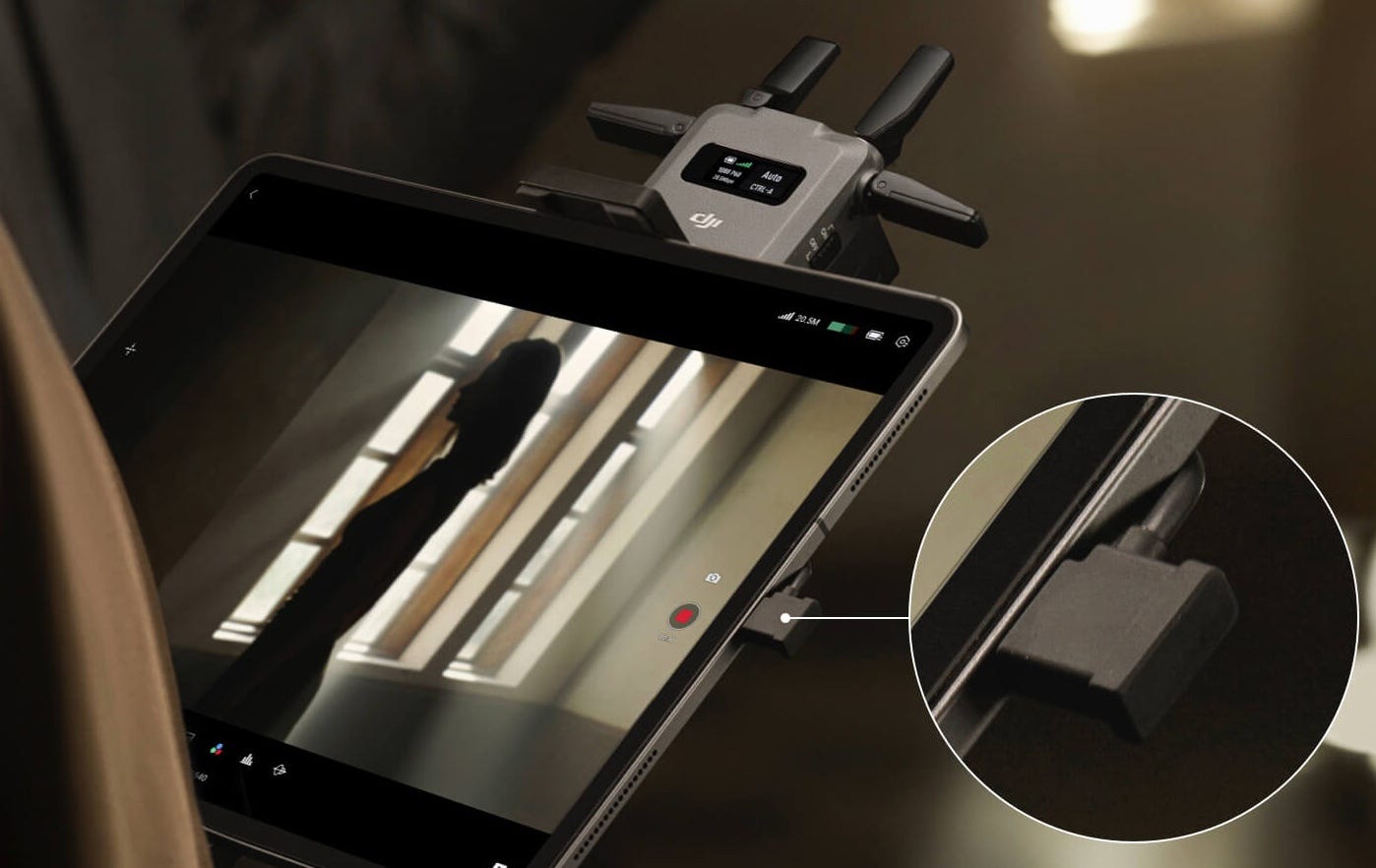

USB-C compatibility

The transmitter features multiple USB-C ports for power, gimbal communication, firmware updates, and direct connections to smartphones or tablets. Monitor your video feed in real-time directly on your smart device without any additional receivers.

Explore the groundbreaking capabilities of the DJI SDR Transmission Transmitter, a cutting-edge device that is transforming professional broadcasting. This advanced video and audio transmission system is expertly engineered to deliver exceptional quality, making it an essential asset for broadcasting professionals. The SDR Transmission Transmitter boasts a versatile array of input and output ports, ensuring adaptability across various applications. It features industry-standard SDI and HDMI ports, which facilitate seamless integration with a broad spectrum of video equipment, enhancing your broadcasting setup. Complementing these are the 3.5mm stereo jacks, designed for superior audio connections, ensuring crystal-clear sound quality.

Further elevating its functionality, the SDR Transmission Transmitter includes USB-C ports. These ports serve multiple purposes: they power the device, enable firmware updates to keep your equipment at the forefront of technology, and support gimbal communication, adding an extra dimension of operational convenience. This multi-faceted device is not merely a broadcasting tool; it is a comprehensive solution tailored to meet the rigorous demands of professional video and audio broadcasting. With its unmatched performance and versatility, the DJI SDR Transmission Transmitter stands as a pivotal component in the realm of high-quality broadcasting solutions.

DJI SDR Transmission Features

  • Equipped with SDI and HDMI input, 3.5mm audio jack, and dual USB-C ports
  • Supports the latest 802.11b/a/g/n/ac/ax standards with 2x2 MIMO technology
  • Versatile power supply options including USB-C and NP-F battery with a power consumption of 8.2W
  • Supports a variety of input video formats up to 1080p at 60fps and input audio formats through SDI and HDMI
  • Ensures low video transmission latency of 80 ms for SDR and 110 ms for Wi-Fi
  • Utilizes the efficient H.264 coding format
  • Capable of transmitting up to 3 km with SDR and 200 m with Wi-Fi

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Achieve reliable video transmission with the DJI SDR, offering robust connectivity.
  • Enjoy low latency (80ms via SDR) for real-time monitoring and seamless broadcasting.
  • Transmit up to 3km (FCC) with this wireless video transmitter, perfect for outdoor shoots.
  • Experience high-quality video coding with H.264 for efficient streaming and recording.
  • Compact & lightweight (5.11oz), this transmitter is ideal for on-the-go video production.
  • Versatile power options: USB-C or NP-F battery (not included) for flexible usage.

What's in the box:

  • DJI SDR Transmission Transmitter
  • TX Gimbal Mounting Adapter Plate
  • DJI 1 Year Limited Warranty
