DJI Smart Controller

SKU: DJISMRTCNTNA

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : How to set drift left and right ?
Shopper : Is the video output from the HDMI port 1080?SOL MARILYS M : Yes, the best investment
Shopper : Does the HDMI port output a clean video signal without aircraft info?

Reviews about this item

Review Summary

2022-12-13T17:55:46

Rated 3 out of 5

Be careful buying used.

Bought used with an F rating but there were no comments that stated how exactly it was affected. Once it arrived, I found out that the right side was heavily damaged and the right joystick unspeakable and unrepairable. So I guess I wish there was more info on what was wrong with it before I purchased. Just something that said the operation was affected in xyz way.

ZACH T.

2022-01-05T04:56:31

Rated 5 out of 5

DJI Smart Controller worth the money

Best controller as far as I'm concerned. Never had any problems with anything

Parker B.

2021-12-26T21:44:57

Rated 5 out of 5

DJI Smart Controller Enterprise for Matrice 300 RTK Series

DJI Smart Controller Enterprise for Matrice 300 RTK Series is a great product

Robert N.

2021-08-16T08:19:52

Rated 5 out of 5

Great controller

Great controller, usefull and nice

Jorge V.

2020-12-22T15:56:04

Rated 4 out of 5

Great product, fast delivery!

The DJI Smart Controller is an amazing remote with a great display. This will make flying the Air 2 much easier on sunny days!

CHRIS L.

2020-12-02T11:09:17

Rated 5 out of 5

Good product Great Support

Great technology. Even better support Lewis Arthur on Adorama's staff is outstanding

RAYMOND S.

2020-10-20T09:56:35

Rated 5 out of 5

Wonderful

Perfect addition for my two drones. I love it!

Dante B.

2020-09-29T09:06:38

Rated 5 out of 5

Great controller

Great controller. Much better than when I used my cell phone. Larger screen, brighter in sunlight, simpler to use than app on the phone. And it is immediately ready to use. Had to take cell phone out of the case, plug it in, adjust the controller arms to hold the phone (which it didn’t do very well). Now just turn on, power up drone and fly. I should have bought the smart controller when I purchased the drone.

MICHAEL P.

2020-06-08T08:46:59

Rated 5 out of 5

A must have!

If owning a dji drone... this is a must have! I found my self previously shuffling with my phone as a view point for my mavic.. And unfortunately, because I need my phone for work purposes. It became too cumbersome, until I picked up this smart controller. I’m able to setup my drone and have it in the air within 2 mins. Versus shuffling with my phone and the original controller.

JOSE T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DJI Smart Controller Specifications

OcuSync 2.0

OcuSync 2.0

Jump to...
  • Operation Frequency Range

    2.400-2.4835 GHz, 5.725-5.850 GHz

OcuSync 2.1

Jump to...
  • Max Transmission Distance

    2.400-2.4835 GHz:
    8 km (FCC), 4 km (CE), 4 km (SRRC), 4 km (MIC)
    5.725-5.850 GHz:8 km (FCC), 2 km (CE), 5 km (SRRC
    (unobstructed, free of interference)

OcuSync 2.2

Jump to...
  • Transmitter Power (EIRP)

    2.400-2.4835 GHz:
    25.5 dBm (FCC), 18.5 dBm (CE), 19 dBm (SRRC), 18.5 dBm (MIC)
    5.725-5.850 GHz:
    25.5 dBm (FCC), 12.5 dBm (CE), 18.5 dBm (SRRC)

  • Protocol

    Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, Wi-Fi with 2 x2 MIMO is supported

  • Operation Frequency Range

    2.400-2.4835 GHz, 5.150-5.250 GHz
    5.725-5.850 GHz

  • Transmitter Power (EIRP)

    2.400-2.4835 GHz:
    21.5 dBm (FCC), 18.5 dBm (CE)
    18.5 dBm (SRRC), 20.5 dBm (MIC)
    5.150-5.250 GHz:
    19 dBm (FCC), 19 dBm (CE)
    19 dBm (SRRC), 19 dBm (MIC)
    5.725-5.850 GHz:
    21 dBm (FCC), 13 dBm (CE), 21 dBm (SRRC)

Bluetooth

Jump to...
  • Protocol

    Bluetooth 4.2

  • Operation Frequency Range

    2.400-2.4835 GHz

  • Transmitter Power (EIRP)

    4 dBm (FCC), 4 dBm (CE), 4 dBm (SRRC), 4 dBm (MIC)

General

Jump to...
  • Battery

    18650 Li-ion (5000 mAh @ 7.2 V)

  • Charge Type

    Supports USB power adapters rated 12 V/2 A

  • Rated Power

    15 W

  • Storage Capacity

    ROM 16 GB + scalable (microSD)

  • Charging Time

    2 hours (using a USB power adapter rated 12 V/2 A)

  • Working Time

    2.5 hours

  • Video Output Port

    HDMI Port

  • Power Supply Current / Voltage

    5 V/ 900 mA (USB-A port)

  • Operation Temperature Range

    -4 to 104 Degree F (-20 to 40 Degree C)

  • Storage Temperature Range

    <1 month: -22 Degree to 140 Degree F (-30 Degree to 60 Degree C)
    1-3 months: -22 Degree to 113 Degree F (-30 Degree to 45 Degree C)
    3-6 months: -22 Degree to 95 Degree F (-30 Degree to 35 Degree C)
    >6 months: -22 Degree to 77 Degree F (-30 Degree to 25 Degree C)

  • Charging Temperature Range

    41 to 104 Degree F (5 to 40 Degree C)

  • Supported Aircraft Models

    Mavic 2 Pro, Mavic 2 Zoom

  • GNSS

    GPS+GLONASS

  • Dimensions

    6.98 x 4.7 x 1.5" (177.5 x 121.3 x 40mm) (antennas folded, and the control sticks unmounted)
    6.98 x 7.12 x 2.3" (177.5 x 181 x 60mm) (antennas unfolded, and the control sticks mounted)

  • Weight

    22.2 oz (630g) Approx.

Supported SD Cards

Jump to...
  • Supported SD Cards

    microSD
    Supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3

  • UPC Code

    6958265178757

1 Accessories for DJI Smart Controller

  • All Accessories (1)
  • Straps & Slings (1)

About DJI Smart Controller

FEATURED REVIEWS

A must have!

By JOSE T.

If owning a dji drone... this is a must have! I found my self previously shuffling with my phone as a view point for my mavic.. And unfortunately, because I need my phone for work purposes. It became too cumbersome, until I picked up this smart controller. I’m able to setup my drone and have it in the air within 2 mins. Versus shuffling with my phone and the original controller.

Great controller

By Jorge V.

Great controller, usefull and nice

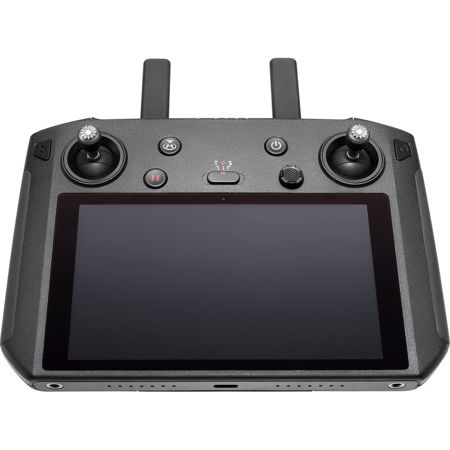

DJI Smart Controller with 5.5" Screen for Mavic 2 Drones

Maximize your flying experience with the all-new DJI Smart Controller. Fitted with a 5.5” 1080p touchscreen, this smart controller is compatible with the Mavic 2 or any other aircraft equipped with OcuSync 2.0. This built-in display boasts a 1,000 cd/m2 output, approximately two times brighter than regular smartphones, enabling you to view your footage even under intense sunlight. The redesigned body is now tailored to work under harsh conditions, making the controller functional at temperatures ranging from -20C to 40C. It also has automatic switching between 2.4GHz and 5.8GHZ, giving users a reliable long-range connection as far as 8km while still maintaining image quality. The controller features a customizable Android dashboard that can support third-party editing programs with ease. It has DJI Pilot and DJI GO 4 with an all-new SkyTalk feature which allows pilots to live stream their footage to various social media channels like Facebook, WeChat, and Instagram. It also features DJI GO-Share, allowing for the easy transfer of images from the controller to your mobile device. Enjoy smooth, flexible flying and reliable long-range connectivity along with a 2.5-hour battery life with the new DJI Smart Controller.

The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0. A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 app get you up in the air quicker, clearer, and more conveniently than ever before.

Built-in Ultra-Bright Screen
The DJI Smart Controller has a built-in 5.5-inch 1080p screen, providing an ultra-bright display to keep your live feed easily viewable, even in direct sunlight. At 1000 cd/sq. m, the display is approximately twice as bright as conventional smart device screens.

OcuSync 2.0 Full-HD Video Transmission
Equipped with OcuSync 2.0 Full-HD video transmission technology, the DJI Smart Controller supports automatic switching between 2.4 GHz and 5.8 GHz, reducing the influence of environmental interference on drone operation and image quality. This also ensures reliable long-range transmission at distances of up to of 8 km.

Efficient and Portable
The DJI Smart Controller connects to your drone as soon as it's powered on, letting you take off in no time and never miss a moment of the action. Featuring an integrated design with detachable control sticks, the DJI Smart Controller is also portable enough to bring with you anywhere.

Reliable in More Environments
The DJI Smart Controller is capable of stable operation in temperatures ranging from -20 Degree C to 40 Degree C, giving you reliable, HD connection with your drone in more places.

Go Share
Easily transfer your aerial photos and videos from the DJI Smart Controller to your mobile device using the DJI GO 4 app's new Go Share function.

Customized System
The DJI Smart Controller's customized Android system and optimized DJI GO 4 app give you freedom from the restraints of conventional mobile devices to ensure faster, focused aerial creation. The Smart Controller also supports third-party apps for a variety of additional sharing and editing options.

Excellent Audio and Video Performance

With a built-in microphone and speaker, the DJI Smart Controller can playback videos through the HDMI port at 4K 60fps on the H.264 and H.265 codecs.

More Features

SkyTalk
The new SkyTalk feature is an amazing way to let others in on your aerial experience. Use it to live-stream your drone's camera view directly to social media platforms like Facebook and Instagram. It also allows you to create and share short videos instantly.

Long-Lasting Battery Life
The 5000mAh battery supports quick charging and can work continuously for up to 2.5 hours.

DJI Smart Controller Features

  • 5.5" 1080p Display
  • OcuSync 2.0
  • -20 Degree C to 40 Degree C
  • Customized Android system
  • DJI Go Share
  • Supports Third-party Apps

Key Features

  • 5.5" 1080p Display
  • OcuSync 2.0
  • -20 Degree C to 40 Degree C
  • Customized Android system
  • DJI Go Share
  • Supports Third-party Apps

What's in the box:

  • Smart Controller
  • 24 W USB Charger
  • Spare Control Stick (Pair)
  • DJI 1 Year Limited Warranty
