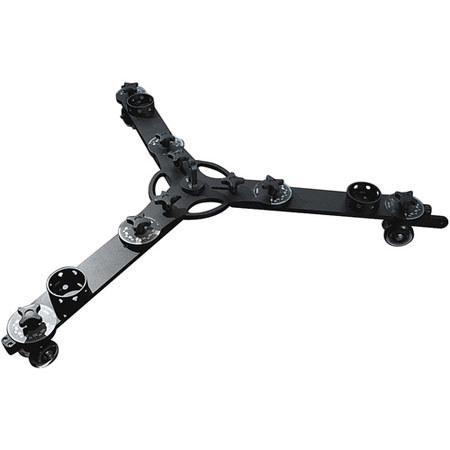

Digital Juice Orbit Dolly, Camera Tracking Device, 3" (76mm) Polyurethane Casters

SKU: DJOD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : The circular diameter of the part to put the leg of a tripod?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Juice DJ.ORBIT.DOLLY Specifications

  • Material

    Body Components - 1/2 inch aluminum plate (series 6061), industrial matte black powder coating; Wheels - 76mm (3 in) urethane 80a type with ABEC 7 high quality bearings; Knobs - 3/8" - 16tpi x 1 inch bolts with nylon handles

  • Load Capacity

    300 lbs (136 kg)

  • Dimensions

    Tabletop: 5-7/8" x 18-1/16" x 16-3/16" (14.9 x 45.8 x 41.1 cm)
    Normal: 6-3/8" x 37-7/16" x 33" (16.1 x 95.09 x 83.8 cm)
    Wide: 6-3/8" x 40-7/8" x 36" (16.1 x 103.8 x 91.4 cm)
    Height measurement is taken from floor to top of knob. Radius: 10-1/8" / 25.7 cm (Tabletop); 21-1/4" / 53.9 cm (Normal); 23-1/4" / 60 cm (Wide)

  • Weight

    22 lbs (9.9 kg) (fully assembled)

  • UPC Code

    717927232727

About Digital Juice DJ.ORBIT.DOLLY

The Digital Juice Orbit Dolly is a unique camera tracking device that allows up to 360 degrees of adjustable radial and straight line Dolly motion on smooth surfaces. It is designed to be used both with and without a tripod and can be used in tabletop, normal and wide modes. With the Orbit Dolly, you can rotate around your subject at two feet away from the camera - or 12 feet - while still keeping your camera pointed toward the subject. The Orbit Dolly replaces the need for more costly straight AND curved tracks. It also quickly converts from a robust floor Dolly to a tabletop tracker, providing added versatility and maneuverability in an affordable package.

Weighing just 22 pounds, the Orbit Dolly is constructed from 1/2 inch aluminum plate chosen for its lightness, rigidity and durability. It is finished with an industrial, matte black powder coating for added protection and prevention of unwanted reflections. Setup and breakdown of the Orbit Dolly is extremely easy and the modular way it is constructed makes it compact and portable. Just loosen a few knobs, adjust the legs and the space required to store or transport the Orbit Dolly becomes nominal.

Digital Juice DJ.ORBIT.DOLLY Features

  • Durable lightweight construction: Main body components are constructed from 1/2 inch aluminum plate, precision cut using a CNC water jet technique
  • Highly versatile: Converts easily between Normal, Wide and Tabletop Modes with simple knob adjustments and rearrangement of the extendable legs
  • Compact and portable: Storing or transporting the Orbit Dolly requires minimal space when the unit is adjusted to its smallest size
  • Matte black powder coating: The industrial finish on the Orbit Dolly's components prevents undesirable reflections and provides added protection
  • 360 degree rotation: Get better shots when you can shoot dolly shots in either a full circular motion, straight line or in a custom arc on any smooth surface

Key Features

  • Durable lightweight construction
  • Matte black powder coating
  • Compact and portable
  • 360 degree rotation
  • Highly versatile

What's in the box:

  • Digital Juice Orbit Dolly
  • Center Leg
  • Left Leg
  • Right Leg
  • Body
  • Wheel Assemblies (3)
  • Nylon Handled 3/8 " (9)
  • Nylon Handled 3/8 " 16tpi Nut for Camera Fluidhead Tiedown)
  • Digital Juice 1 Year Warranty
