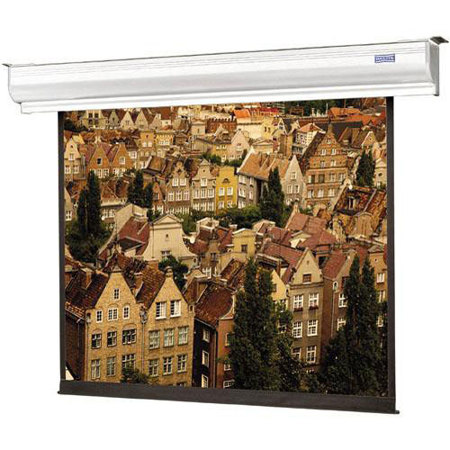

Da-Lite 37574LS 69x110" Contour Electrol Motorized Projection Screen
See all Da-Lite items

Da-Lite 37574LS 69x110" Contour Electrol Motorized Projection Screen

SKU: DL37574LS
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Da-Lite 58" x 92" (109") Tensioned Contour Electrol Projector Screen
$3,708.00
$2,966.40
undefined undefined: Picture 1 regular
Da-Lite Tensioned Cosmopolitan Da-Mat 92" 16:9 Wall/Ceiling Motorized Screen
$2,000.80
$1,500.80
undefined undefined: Picture 1 regular
Da-Lite Model C Matte White 113" 16:10 Wall/Ceiling Manual Projection Screen
$938.00
$750.40
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Da-Lite 37574LS Specifications

  • Style

    Contour Electrol

  • Front/Rear Projection

    Front

  • Mount

    Wall or Ceiling

  • Finish

    Matte White; flame retardant and mildew resistant fiberglass

  • Tension Control

    Non-Tensioned

  • Keystone Control

    No

  • Image Size

    69 x 110" (1.8 x 2.8 m)

  • Diagonal

    130" (3.3m)

  • Format

    16:10

  • Aspect Ratio

    16:10

  • Masking Options

    Standard black masking borders

  • Controls: Voltage

    120V, 60Hz

  • Integrated Control

    With Low Voltage Controller
    Motor mounted inside the roller with a patented noise silencer
    Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions

  • Control Options

    Three position wall switch (included)
    Single Motor Low Voltage Control (LVC) (external)
    Single Motor Low Voltage Control (LVC) - built-in (adds 3.75" to length of case)
    Wireless Remote Control for LVC; Radio Frequency Remote
    Infrared Remote
    Key Locking Switch Cover Plate for 120V Switch or LVC
    Key Operated Switch for 120V only (Note: Cannot be used with LVC)
    220 Volt (50Hz) Motor
    Anchor Speaker Option, pair with brackets

  • Casing

    Textured powder coat

  • Casing: Material

    Extruded aluminum

  • Casing: Length

    123.75" / 3143.26mm

About Da-Lite 37574LS

The Contour Electrol is the latest ceiling or wall-mounted electric screen offering simple installation. A variety of finishes and veneer options make this a seamless addition to any room. This screen does not include the Tensioning Cable System. See Tensioned Contour Electrol for this feature.

• Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10'x10')
• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
• Support includes a comprehensive five-year warranty to keep you confident in your purchase
• Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
• Decora-style, three-button wall switch
• Standard black backing retains projected brightness
• Seamless surfaces
• Standard white powder-coated aluminum finish; available in black, graphite or veneer upon request

Standard Silent Drive System
• An enhanced drive mechanism to keep your screen whisper quiet
• Internal vibration isolators enhance quiet operation
• Silent Drive Motor on screens 10' x 10' and smaller

Smooth Roll Technology
• A patent pending roller technology to keep your screen perfectly flat
• An industry first
• Completely flat screen surface without roller impressions

Simple Installation
• A new Installation Kit and user-friendly packaging to keep you on schedule.
• Everything needed for installation in one convenient package
• New Owner's Manual and improved Instructions

Standard LVC
• Integrated low voltage control to keep your screen operation flexible
• Dry contact closures included for third party control
• Easy to add Da-Lite's wireless control options

Slim-Tab
• A lower profile, stronger tab design to keep your screen perfectly tensioned
• Tab size optimized for strength and screen flatness
• Redesigned geometry to eliminate tab impressions

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Da-Lite 37574LS Contour Electrol Motorized Projection Screen
  • Three Position Wall Switch
  • Mounting Hardware
  • Da-Lite 1 Year Warranty
