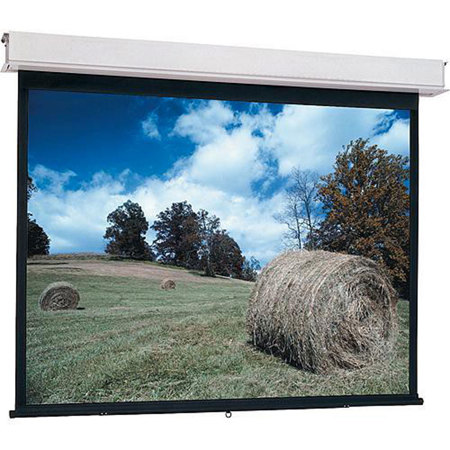

About Da-Lite 85713 Advantage Manual Screen, 69x 92in, 120in
Experience the superior quality and convenience of the Advantage Manual, a ceiling recessed manual screen designed with a keen focus on the installation process. This screen, featuring Controlled Screen Return (CSR), offers the flexibility of installing the case and fabric/roller assemblies at different stages of construction, making it a perfect fit for your project timeline.
The Advantage Manual Screen is equipped with a unique floating mounting method. This method uses adjustable roller brackets incorporated into the lightweight, extruded aluminum case, allowing for the screen to be centered or offset according to your needs. The finished case edges provide a clean, professional look, seamlessly integrating with your ceiling tiles for a refined finish.
Exclusively offered by Da-Lite, the CSR system is a standout feature of the Advantage design. This system ensures a quiet, controlled return of the screen into the case, guaranteeing optimal performance and smooth, consistent operation. Please note, screens with the CSR feature must be fully extended as there are no intermediate stopping positions.
The Matte White fabric, seamless up to and including 10' high, is one of the most versatile screen surfaces. It's an excellent choice for situations where presentation material is being projected and ambient light is controllable. This surface evenly distributes light over a wide viewing area, ensuring colors remain bright and life-like, with no shifts in hue.
The Advantage Manual Screen is not only flame retardant but also mildew resistant, making it a durable and safe choice for your space. With a viewing angle of 60 degrees and a gain of 1.0, this screen ensures a high-quality viewing experience for all.
Da-Lite 85713 Advantage Manual Screen, 69x 92in, 120in Features
- Provides Optimal Performance and Smooth Consistent Operation
- Designed for ceiling recessed installation
- Surface with black masking borders standard, on flame retardant and mildew resistant fiberglass fabric, mounted on a ball bearing rigid steel spring roller
- A floating mounting method utilizing adjustable roller brackets is designed into a lightweight, extruded aluminum case allowing the centering or offsetting of the screen
- Equipped with Controlled Screen Return (CSR) to control the return speed of the screen surface back into the case
- Top, front, and back of case made of extruded aluminum
- End caps made of heavy gauge steel
- Bottom of case has a removable access door
- Case is powder coated white. Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
- Bottom of case is self-trimming, with a built-in flange around the bottom of the case
- Bottom of screen formed into pocket holding tubular metal slat
- A steel pull bail is attached to the slat
- Heavy-duty plastic caps protect the ends of the slat
- Metal bumper stops built into the case to prevent slat wedging inside case
- A 6' pull cord with plastic knob is included
- Roller mounting brackets are adjustable to allow centering or offsetting the screen within the case
- Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3) and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1
