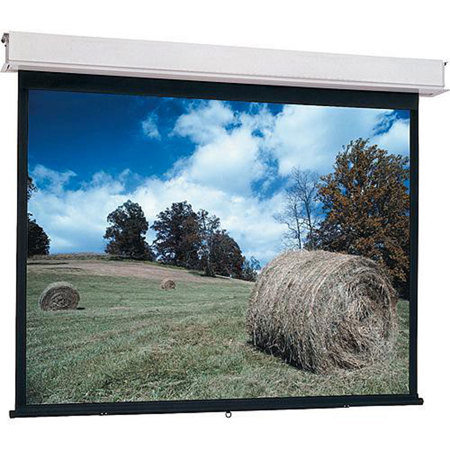

Da-Lite Advantage Manual, 16:10 Wide Format Ceiling Recessed Manual Screen, 87x139", 164" Diagonal, Matte White Surface
SKU: DLADMC164DMW
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A
About Da-Lite 34722 Advantage Manual Screen 87x139in, 164in
Over the years, the Advantage Manual Ceiling Recessed Screen has become a go-to choice for professionals seeking a reliable, high-quality, and stylish projection solution. This manually operated screen is ingeniously designed with the installation process in mind, offering the flexibility of installing the case and fabric/roller assemblies at different stages of construction.
This innovative screen features a floating mounting method, which uses adjustable roller brackets incorporated into the lightweight, extruded aluminum case. This design allows for the precise centering or offsetting of the screen, ensuring optimal viewing experience. The finished case edges provide a clean, professional look, seamlessly integrating with ceiling tiles for a refined appearance.
Exclusively offered by Da-Lite, the Advantage Manual Screen is equipped with the Controlled Screen Return (CSR) system. This impressive feature ensures a quiet, controlled return of the screen into the case, providing optimal performance and smooth, consistent operation. Please note, screens with the CSR feature must be fully extended as there are no intermediate stopping positions.
The screen surface is a matte white fabric, known for its versatility and suitability for situations where presentation material is being projected and ambient light is controllable. This surface evenly distributes light over a wide viewing area, ensuring colors remain bright and life-like, with no shifts in hue. The fabric is flame retardant and mildew resistant, adding to its durability and longevity.
With a viewing angle of 60 degrees and a gain of 1.0, the Advantage Manual Ceiling Recessed Screen offers a wide viewing angle and excellent light reflection. The screen measures 87x139 inches with a 164-inch diagonal, making it ideal for large conference rooms or auditoriums where multiple viewers need to see the screen simultaneously.
In conclusion, the Advantage Manual Ceiling Recessed Screen is a durable, reliable, and innovative solution for all your professional projection needs.
Da-Lite 34722 Advantage Manual Screen 87x139in, 164in Features
- Provides Optimal Performance and Smooth Consistent Operation
- Designed for ceiling recessed installation
- Surface with black masking borders standard, on flame retardant and mildew resistant fiberglass fabric, mounted on a ball bearing rigid steel spring roller
- A floating mounting method utilizing adjustable roller brackets is designed into a lightweight, extruded aluminum case allowing the centering or offsetting of the screen
- Equipped with Controlled Screen Return (CSR) to control the return speed of the screen surface back into the case
- Top, front, and back of case made of extruded aluminum
- End caps made of heavy gauge steel
- Bottom of case has a removable access door
- Case is powder coated white. Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
- Bottom of case is self-trimming, with a built-in flange around the bottom of the case
- Bottom of screen formed into pocket holding tubular metal slat
- A steel pull bail is attached to the slat
- Heavy-duty plastic caps protect the ends of the slat
- Metal bumper stops built into the case to prevent slat wedging inside case
- A 6' pull cord with plastic knob is included
- Roller mounting brackets are adjustable to allow centering or offsetting the screen within the case
- Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3) and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1
