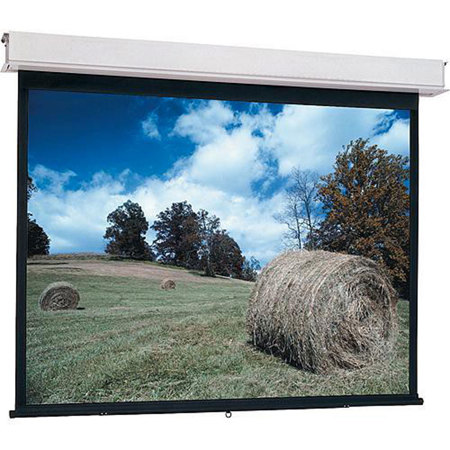

Da-Lite Advantage Manual, Square Format Ceiling Recessed Manual Screen, 84x84", 119" Diagonal, Matte White Surface
SKU: DLADMC84XMW
This item is no longer available.
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A
About Da-Lite 85664 Advantage Manual Screen 84x84in, 119in
A professional-grade solution for your projection needs, the Advantage Manual Square Format Ceiling Recessed Manual Screen is a meticulously designed, manually operated screen that seamlessly integrates into your ceiling. Engineered with a focus on the installation process, this screen features a Controlled Screen Return (CSR) system, a unique offering from Da-Lite, that ensures a quiet, smooth, and controlled retraction of the screen into its case for optimal performance and consistent operation.
This projector screen is constructed with a lightweight, extruded aluminum case that includes a floating mounting method and adjustable roller brackets. These design elements allow for precise centering or offsetting of the screen, ensuring perfect alignment for your viewing experience. The finished case edges contribute to a clean aesthetic, facilitating a comfortable integration with ceiling tiles.
The Advantage Manual Screen is equipped with a Matte White fabric surface, recognized for its versatility and performance in situations where ambient light is controllable. This surface evenly distributes light across a wide viewing area, maintaining bright, life-like colors with no shifts in hue. The Matte White fabric is flame retardant and mildew resistant, ensuring durability and longevity.
With a viewing angle of 60 degrees and a gain of 1.0, this 119" diagonal, 84x84" square format screen is designed to provide a clear, bright image with minimal glare. Please note, screens with the CSR feature must be fully extended and do not have intermediate stopping positions.
Whether you're presenting in a professional setting or enjoying a movie night at home, the Advantage Manual Square Format Ceiling Recessed Manual Screen delivers a high-quality, immersive viewing experience.
Da-Lite 85664 Advantage Manual Screen 84x84in, 119in Features
- Provides Optimal Performance and Smooth Consistent Operation
- Designed for ceiling recessed installation
- Surface with black masking borders standard, on flame retardant and mildew resistant fiberglass fabric, mounted on a ball bearing rigid steel spring roller
- A floating mounting method utilizing adjustable roller brackets is designed into a lightweight, extruded aluminum case allowing the centering or offsetting of the screen
- Equipped with Controlled Screen Return (CSR) to control the return speed of the screen surface back into the case
- Top, front, and back of case made of extruded aluminum
- End caps made of heavy gauge steel
- Bottom of case has a removable access door
- Case is powder coated white. Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
- Bottom of case is self-trimming, with a built-in flange around the bottom of the case
- Bottom of screen formed into pocket holding tubular metal slat
- A steel pull bail is attached to the slat
- Heavy-duty plastic caps protect the ends of the slat
- Metal bumper stops built into the case to prevent slat wedging inside case
- A 6' pull cord with plastic knob is included
- Roller mounting brackets are adjustable to allow centering or offsetting the screen within the case
- Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3) and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1
