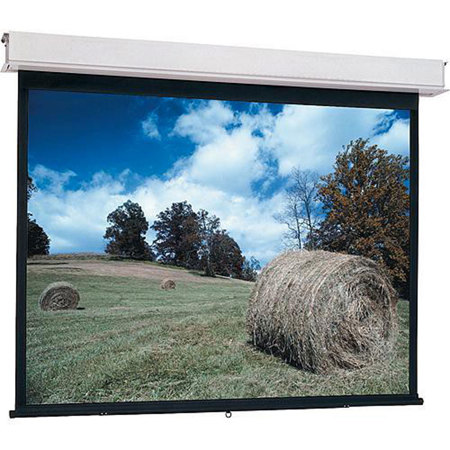

Da-Lite Advantage Manual, Square Format Ceiling Recessed Manual Screen, 8x8', 11.3' Diagonal, Matte White Surface
SKU: DLADMC8X8MW
This item is no longer available.
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A
About Da-Lite 85672 Advantage Manual Screen 8x8', 11.3' Diag
Because precision and quality are paramount when it comes to your viewing experience, the Advantage Manual Square Format Ceiling Recessed Screen is meticulously designed to meet your needs. This manually operated screen is cleverly recessed into the ceiling, offering a sleek and unobtrusive aesthetic for any space.
The Advantage Manual Screen is not just about aesthetics, but also about convenience and flexibility. It's ingeniously developed with a two-stage installation process in mind. This allows for the separate installation of the case and fabric/roller assemblies at different construction stages, making the process more manageable and less time-consuming.
This screen features a unique floating mounting method, which uses adjustable roller brackets integrated into the lightweight, extruded aluminum case. This design allows for the screen to be centered or offset, providing versatility to suit your specific setup requirements. The finished case edges offer a clean, professional look, seamlessly blending with ceiling tiles for a refined finish.
One of the standout features of this screen is the Controlled Screen Return (CSR) system, offered exclusively by Da-Lite. The CSR system ensures a quiet, controlled return of the screen into the case, providing optimal performance and smooth, consistent operation. Please note that screens with the CSR feature must be fully extended, as there are no intermediate stopping positions.
The Matte White fabric surface is one of the most versatile choices, ideal for situations where presentation material is being projected and ambient light is controllable. This fabric evenly distributes light over a wide viewing area, ensuring colors remain bright and life-like, with no shifts in hue. It's also flame retardant and mildew resistant for added safety and longevity. With a viewing angle of 60 degrees and a gain of 1.0, this 8x8', 11.3' diagonal screen is designed to deliver a superior viewing experience.
Da-Lite 85672 Advantage Manual Screen 8x8', 11.3' Diag Features
- Provides Optimal Performance and Smooth Consistent Operation
- Designed for ceiling recessed installation
- Surface with black masking borders standard, on flame retardant and mildew resistant fiberglass fabric, mounted on a ball bearing rigid steel spring roller
- A floating mounting method utilizing adjustable roller brackets is designed into a lightweight, extruded aluminum case allowing the centering or offsetting of the screen
- Equipped with Controlled Screen Return (CSR) to control the return speed of the screen surface back into the case
- Top, front, and back of case made of extruded aluminum
- End caps made of heavy gauge steel
- Bottom of case has a removable access door
- Case is powder coated white. Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
- Bottom of case is self-trimming, with a built-in flange around the bottom of the case
- Bottom of screen formed into pocket holding tubular metal slat
- A steel pull bail is attached to the slat
- Heavy-duty plastic caps protect the ends of the slat
- Metal bumper stops built into the case to prevent slat wedging inside case
- A 6' pull cord with plastic knob is included
- Roller mounting brackets are adjustable to allow centering or offsetting the screen within the case
- Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3) and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1
