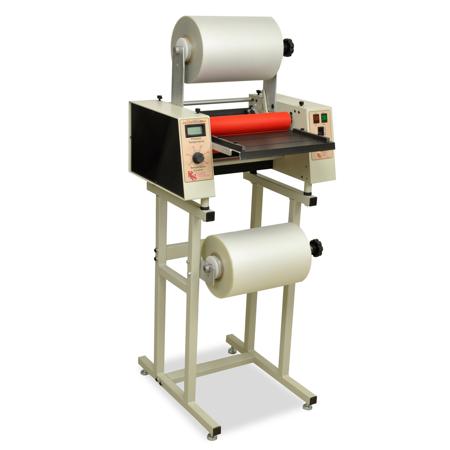

Dry Lam 12" High Performance Laminator

SKU: DLPL1200HP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dry Lam Laminator Specifications

  • Laminating Width

    4-12"

  • Max Mechanical Speed

    18 fpm Maximum

  • Sustained Lamination Speed

    1.5 Mil at 230 deg. 15-18 fpm - 3 Mil at 250 deg. 8 fpm

  • Laminates

    Polyester, Polypropylene, Nylon, Vinyl and Other Plastics - Thermal or Cold

  • Max Film Thickness

    10.0 Mil

  • Max Substrate Thickness

    0.25

  • Cooling Fans

    2 at 110 cfm each

  • Warm Up Time

    About 4 min.

  • Max Film Roll Diameter for 1.5 mil

    Without Stand: 6" / 152.40mm
    With Stand: 11" / 279.40mm

  • Stand

    Includes standard steel stand and 3" Mandrels

  • Gapable Rollers

    Yes-Front Heat and Rear Pull Rollers

  • Temperature Control

    Solid State - Digital Readout 2 degree hysteresis

  • Motor / Speed Control

    DC High Torque Gear Motor / Solid State Variable, Both Air Cooled

  • Slitters

    2 Micro-Adjustable slitters included

  • Heated Roll Watts

    850W each (1700W combined), 5803 BTU's

  • Electrical Requirements

    120 Volt 60 Hz -1900 Watts- 20 Amp Dedicated Circuit

  • Dimensions (W x D x H)

    Without Stand: 23 x 20 x 16" / 584.20 x 508.00 x 406.40mm
    With Stand: 23 x 20 x 40" / 584.20 x 508.00 x 1016.00mm

  • Weight

    Laminator and Stand: 115lbs / 52.16kg

About Dry Lam Laminator

The 12" wide PL-1200HP is possibly the fastest 110v 12" laminator in existence. While producing a superb finish and edge seal it is capable of speeds up to 17 fpm and can laminate 3 mil. material in excess of 10 fpm. It will accept films from 1 to 15 mils thick and will laminate materials, such as foam board up to 1/4" thick. Sets up in minutes and has a thru-put capability in excess of 1000 fph.

The PL-1200HP is a cost efficient, high performance laminating machine. This is truly a professional machine in every aspect and features a patented heated roller design. Save energy by turning it on when you need it, warm up time is only four minutes. This laminator will handle the vast majority of all laminating since printing, copying and duplicating machinery does not process output that exceeds 12" in one dimension.

What's in the box:

  • Dry Lam 12 " High Performance Laminator
  • Standard Steel Stand
  • 3 " Mandrels
  • Dry Lam Warranty
