DMG Lumiere MINI Switch Bi-Color LED Light AC Kit, DMX Driver & Offset Mount
See all DMG Lumiere items

DMG Lumiere MINI Switch Bi-Color LED Light Panel AC Kit, Includes Wireless DMX Driver and Offset Mount

SKU: DMGKMNWDMXK2

This item is no longer available.

Recommended Alternatives

DMG Lumiere MINI MIX: Picture 1 regular
DMG Lumiere MINI MIX Full-Color 100W Lamp Head AC Kit, Wheeled Bag, Offset Mount
$3,158.75
DMG Lumiere MINI MIX Kit: Picture 1 regular
DMG Lumiere MINI MIX Full-Color 100W Lamp Head AC Kit, Offset Mount, 2m Cable
$3,044.75
DMG Lumiere SL1 MIX: Picture 1 regular
DMG Lumiere by Rosco SL1 MIX Full Color 200W LED Smart Light
$2,394.00
DMG Lumiere SL1 Switch Kit: Picture 1 regular
DMG Lumiere SL1 Switch LED Light AC Kit, Wireless DMX, Offset Mount
$3,002.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DMG Lumiere MINI Switch Kit Specifications

LED Panel Light

LED Panel Light

Jump to...

  • Light Source

    1092 SMD2835 LEDs

  • Color Range

    3200 to 5600K (via separately purchased controller)
    3000 to 5600K (with diffuser)

  • CRI

    91 CRI at 3200K, 94 CRI at 5600K

  • Dimming

    0-100% (with optional controller)

  • Operating Voltage

    Input: 100-240 VAC, 50/60 Hz
    Output: 24 VDC
    Optional battery: 12-35 V

  • Power Consumption

    85 W max.

  • Photometrics

    1500 lux at 3.0' (1.0 m) (without diffuser)
    600 lux at 10' (3.0 m) (without diffuser)

  • Material of Construction

    Aluminum

Power Supply Unit

Jump to...

  • Input / Output

    Input: 100 to 240 VAC, 50/60 Hz
    Input: 24 VDC

WDMX Driver

Jump to...

  • Material of Construction

    Black anodized aluminum and stainless steel screws

  • Power

    Input: 12 - 30 VDC Output: 24 VDC constant current

  • Compatibility

    MINI Switch, SL1 Switch lights

  • Dimming

    0-100%, 2 speeds, flicker-free at any frame rate

  • Color Temperature

    3000 - 5600K

  • Control

    Locally on unit
    DMX, Wireless DMX (Lumen Radio FX), Wi-Fi

  • Connectors

    Chogori input connector
    Wi-Fi / LAN input

  • IP Rating

    IP20

  • Certifications

    CE, CSA, RoHS

Offset Mount

Jump to...

  • Material of Construction

    Stainless steel

  • Finish

    Black and silver

  • Compatibility

    MINI, SL1 and MAXI Switch lights

  • Load Capacity

    44 lbs (20 kg)

  • Adjustments

    360 deg. Single ball action

General

Jump to...

  • Dimensions

    LED Panel Light: 23 x 7.8 x 0.8" (584.20 x 198.12 x 20.32mm)
    Power Supply Unit: 6.7 x 2.4 x 1.6" (170.18 x 60.96 x 40.64mm)
    WDMX Driver: 8.2 x 4.7 x 2.3" (208.28 x 119.38 x 58.42mm)
    Offset Mount: 13.7 x 6.3 x 3.5" (347.98 x 160.02 x 88.90mm), Receiver: 5/8" (16 mm) Female
    Extension Cable: 6.6' (2.01m)

  • Weight

    LED Panel Light: 3.7 lbs (1.68kg)
    Power Supply: 2.0 lbs (0.91kg)
    WDMX Driver: 2.7 lbs (1.22kg)
    Offset Mount: 2.2 lbs (1kg)

About DMG Lumiere MINI Switch Kit

- MINI Switch -
The MINI Switch has the same attributes as the original SL1 Switch, which for its size/weight/power ratio has an outstanding light quality. Its frame and accessories have been designed to be both robust and ergonomic, which add to the facility of use.

The perfect lighting tool for the nomadic, quality conscious technician. The MINI Switch is a super lightweight and portable panel which can be used anywhere and everywhere. It comes with AC and DC power solutions as well as a wide range of diffusion accessories available. All of which fit nicely into one bag. It is the ideal companion on any set, location, confined space, low ceiling studio, documentary shooting... the list is limitless. The MINI Switch, designed for versatility.

- Goose-Neck Mount -
Single ball system, it is the standard baby-pin female receiver specifically designed for C-Stand usage. Made of steel, it will secure any weight between 1 & 15kg 51lb - 33lb)

- Mini AC Power Supply -
External AC/DC power supply which plugs into the MINI Switch Controls. It can mount on both the back of the MINI Switch Light and the MINI Switch Controls with a quick-lock system. Made by award winning Power Supply Manufacturer "MEANWELL" - 2 years warranty

- Extension Cable 2m/6' -
Between the light and the control system: 2 meters (6.5') and 8 meters (26') extension. Max length w/o power loss: 16 meters (52').

- WDMX Driver -
Advanced DC driver with DMX wired and wireless function (Lumen Radio FX chip) and Wi-Fi/LAN input Colored control screen and Chogori input connector. Mounts directly to the back of the light panel with a spring loaded system. Suitable for MINI & SL1 Switch.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

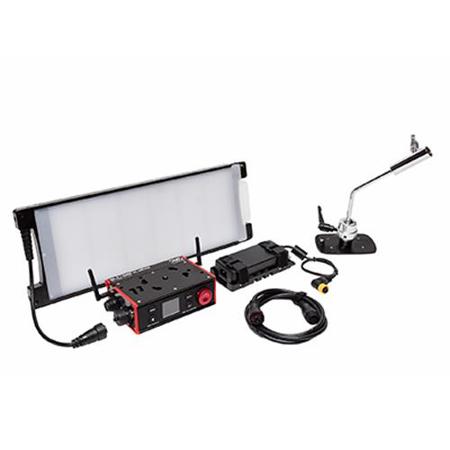

What's in the box:

  • DMG Lumiere MINI Switch Bi-Color LED Light Panel
  • Diffuser
  • External Power Supply Unit
  • WDMX Universal Battery Box
  • 6.6' 4-Pin Extension Cable
  • 360 Degree Single Ball Offset Mount
  • DMG Lumiere 3 Year Limited Warranty
