DMG Lumiere MAXI Switch Bi-Color Folding LED Panel Kit, Includes Yoke, Control Panel, AC Power Supply and Rigid Bag

SKU: DMGKMXWXYKRB

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DMG Lumiere MAXI Switch Kit Specifications

LED Panel Light

LED Panel Light

Jump to...
  • Light Source

    8640 SMD2835 LEDs

  • Max Power Consumption

    520 W

  • Voltage Input

    Light Panel: 24 VDC, 22 A

  • AC Power

    100 to 240 VAC, 50/60 Hz

  • Battery Connector

    Neutrik SpeakOn
    Chogori Cable
    Optional 3-pin XLR

  • Battery Voltage

    Battery: 24 to 30 VDC

  • Color Temperature

    3000 to 5600K

  • CRI

    94 at 3200K
    96 at 5600K

  • TLCI

    TLCI-II
    91 at 3200K
    94 at 5600K

  • Dimming

    Flicker-free at any fps, 0 to 100% (2 speeds)

  • Cooling

    Silent, passive cooling

  • Diffuser

    Frosted acrylic diffuser

  • Mounting

    Yoke with combo 1-1/8 (28 mm) pin and 5/8" (16 mm) receiver

  • Housing Material

    Black anodized aluminum and stainless steel screws

  • IP Rating

    IP20

  • Certifications

    CE, CSA, RoHS

Switch Yoke

Jump to...
  • Rotation Range

    360 degree

  • Mount

    Combo 5/8" (16 mm) receiver / 1-1/8" (28 mm) Junior pin

Power Supply Unit

Jump to...
  • Control

    Locally on unit
    DMX and WDMX
    Wi-Fi with smartphone or tablet

  • Voltage

    110-220 VAC, 50/60 Hz
    24-28 VDC (min. 20 A) for battery (24 VDC constant current)

  • Power Consumption

    520 W max.

  • Connectors

    Chogori output connector
    Wi-Fi / LAN input
    Neutrik PowerCon input connector

  • Material of Construction

    Black anodized aluminum and stainless steel screws

  • Certifications

    CE, CSA, RoHS

Control Panel

Jump to...
  • Input / Output

    24 to 28 VDC / 24 VDC constant current

  • Dimming

    0 to 100% flicker free at any frame rate

  • Color Temperature

    3000 to 5600K

  • Control

    Wi-Fi LAN input DMX wired and wireless (Lumen Radio RX/TX chip)

  • Display

    Color LED

  • Battery

    Accepts 24 to 28 VDC batteries

  • Connectors

    Chogori input connector
    Wi-Fi / Lan input
    Neutrik SpeakOn output connector

  • Material of Construction

    Black anodized aluminum and stainless steel screws

  • Certifications

    CE, CSA, RoHS

General

Jump to...
  • Dimensions

    LED Panel Light: 48 x 30 x 0.75" (1219.20 x 762.00 x 19.05mm)
    AC Power Supply: 11.8 x 7.5 x 2.4" (299.72 x 190.50 x 60.96mm)
    Control Panel: 11.8 x 6.3 x 2.4" (299.72 x 160.02 x 60.96mm)
    Fixture Cable: 32.81' (10m)
    Cable: 6.56' (2m)

  • Weight

    LED Panel Light: 27 lb (12.25kg)
    AC Power Supply: 11.8 lb (5.35kg)
    Control Panel: 5.3 lb (2.40kg)
    Cable: 1.4 lb (0.64kg)

About DMG Lumiere MAXI Switch Kit

- MAXI Switch -
The MAXI Switch has arrived! This unique light is the latest (and largest!) edition to the DMG Family. It measures 125x74x2cm (4' x 2.2' x 3/4") for only 12.5Kg (27lbs), maximizing its output to an outstanding 520W LED power.

Bi-color from 3000 to 5600 deg. k, it is also foldable for easy transportation. Built from two panels joined together by a smart hinge, it can fold, making it easy to transport. The two panels can also work separately and be controlled in "split mode". The MAXI Switch yoke allows 360 deg. rotation for maximum freedom and can also lock the two panels in any position between flat-open and closed. Containing the latest remote control technologies (DMX / Wireless DMX / Wi-Fi /LAN), the MAXI Switch is the ideal companion on location or key lighting in larger studios.


- MAXI AC Power Supply -
The MAXI Switch power box is a perfect combination of design and control. It separates into 2 units, the Driver and Power Supply Unit (PS). The Drive also can be mounted on the back of the lamp head for maximum comfort of control. This power box embarks all the latest wireless technology

• Wi-Fi, so it can be controlled directly from your smartphone or tablet
• DMX and WDMX, using Lumen Radio's emit/receive Timo Chip
• It runs at 24VDC so can also be powered by a battery source with a load of minimum 20Amps

- Rigid Black Bag -
The bag for the MINI SWITCH/MIX can welcome one fully accessorised kit (except The Dome which comes in its own bag). Hard fabric bag with wheels and extendable handle.

Designed for durability.

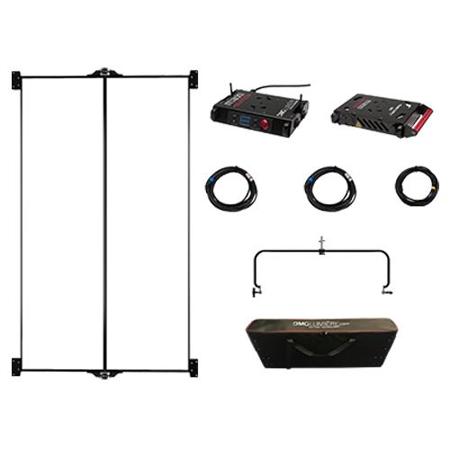

What's in the box:

  • MAXI Switch Bi-Color Folding LED Panel
  • MAXI Switch Yoke
  • MAXI AC Power Supply
  • Control Panel
  • 2x Control Panel to Light Fixture Cable
  • MAXI-C2 Cable
  • Rigid Bag with Wheels
  • Padded Dividers
  • DMG Lumiere 3 Year Limited Warranty
