DynaMount X1-R Dual-Axes Mount for Robotic Microphone with Rotation

SKU: DMX1R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Ernest T : Is being used and came recommended by two sound engineers as I hoped something this automated was available without trying to make one myself. Perfect for recording mic's positioning on speaker cabs ... looks like a big time saver

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DynaMount X1-R Dual-Axes Mount for Robotic Microphone Specifications

  • Control Methods

    Wi-Fi, USB

  • Range of Motion (Axis-1)

    5.05" / 128.27mm

  • Range of Motion (Axis-2)

    6.25" / 158.75mm

  • Range of Motion (Rotation)

    360 deg.

  • Axial Nudge Increment (Axis-1)

    0.05" / 1.27mm

  • Axial Nudge Increment (Axis-2)

    0.06" / 1.52mm

  • Rotation Nudge Increment

    1 deg.

  • Mounting Method

    5 / 8"-27 threads

  • Included Power Adapter

    DC 12V, 2.5A

  • Power Adapter Cable Length

    8' / 2.44m

  • Dimensions (L x W x H)

    14.75 x 14.75 x 5.75" / 374.65 x 374.65 x 146.05mm

  • Weight

    4.2lbs / 1.91kg
    Max Microphone Weight (horizontal/level setup): 5lbs / 2.27kg
    Max Microphone Weight (vertical/inclined/upside-down setup): 2lbs / 0.91kg

  • UPC Code

    863257000205

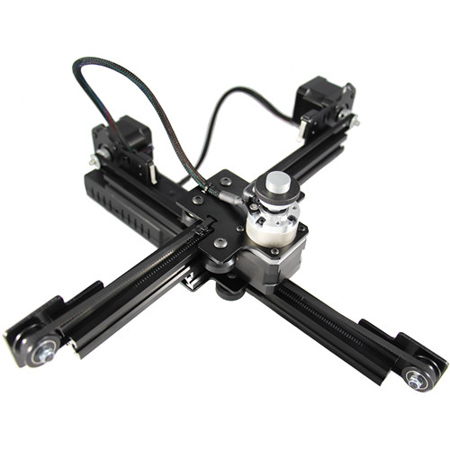

About DynaMount X1-R Dual-Axes Mount for Robotic Microphone

Dual-Axis with Rotation
The X1-R is the top-of-the-line model featuring two axes of movement as well as rotation capabilities. Control wirelessly from your iOS and Android devices using the mobile apps or from your Windows/OSX computer using the Chrome app. The device can be controlled via WLAN (Wi-Fi) or USB. The app enables you to store up to 6 different mic positions as recallable presets for each DynaMount that can be precisely returned to on command. You are also able to switch back and forth between controlling an infinite number of devices.

Since the X1-R is composed largely of high-quality anodized aluminum, it is lightweight (4.2lbs) but very robust and compact enough for a wide variety of uses. It is even possible to mount it vertically or upside-down (e.g. drum overheads). An optional Accessory Pack includes a clutch for mounting the X1-R vertically, an approx. 0.5m right-angled XLR adaptor cable, a 5/8" jam nut and a 5/8" thread extender. The latter and the right-angled XLR adapter help with mics that have the outlet at the bottom (e.g. AKG C414 and Neumann U87).

What's in the box:

  • DynaMount X1-R Dual-Axes Mount for Robotic Microphone
  • 12V DC Power Adapter
  • 10' Power Cable
  • DynaMount 1 Year Limited Warranty
