Dolgin Engineering On-The-Go 4-Position Charger Field Kit for Panasonic HPX170 / DVX100 / HVX200 Camera Battery Packs

SKU: DOTC400PANFK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dolgin Engineering On The Go Field Kit Specifications

  • Compatible with

    For Panasonic DVX/HVX Series Battery

  • Power Supply

    No

  • Charger Battery Bays

    4 for CGR-D54 type batteries

  • Type of Charging

    Simultaneous

  • Charger Diagnostics

    None

  • Charger Power Requirements

    100-240V AC at 50/60 Hz

  • Case Material

    Exterior: Ultra High Impact copolymer
    Exterior: Open-cell core with solid wall design
    Interior: Three-piece foam set

  • Case Type of Closure

    Double throw latches
    Stainless steel padlock protectors

  • Case Waterproofing

    Watertight to 30'
    O-ring sealed

  • Case Maximum Buoyancy

    Floats in salt water with 30 lbs (13.61kg) load

  • Case Interior Fitting

    Three-piece foam set

  • Case Accommodates

    Equipment that requires protection from shock and the elements

  • Case Carrying/Transport Options

    Folding handle

  • Charger Weight

    4 lb (1.8kg)

  • Case Exterior Dimensions

    16 x 13 x 6.87" (40.64 x 33.02 x 17.45cm)

  • Case Interior Dimensions

    14.62 x 10.18 x 6.0" (37.13 x 25.86 x 15.24cm)
    Lid depth: 1.75" (4.45cm)
    Bottom depth: 4.25" (10.8cm)

  • Case Weight

    6.39 lbs (2.9kg)

About Dolgin Engineering On The Go Field Kit

The Dolgin Engineering TC400-PAN 4-Position for Panasonic is a 4-position microprocessor-based battery charger; it provides fast, safe simultaneous charging of 7.2V DC Panasonic HPX170 / DVX100 / HVX200 battery packs. This unit features a Digital LCD display indicating the battery pack charge in progress status and true capacity upon charge completion.

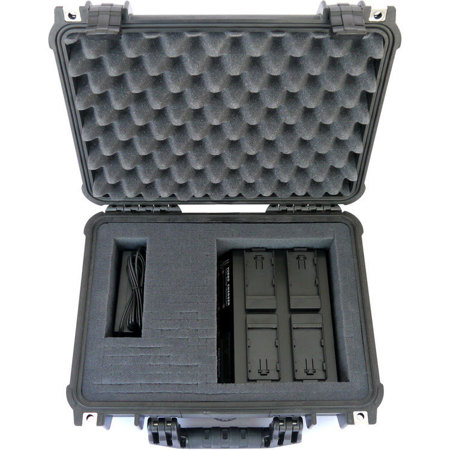

The Dolgin On-The-Go TC400 Battery Charger Field Kit incorporates a TC-400 Camera battery charger in a hard-sided Pelican case with custom foam insert. It is perfect for users who have to travel and work off site in demanding conditions. The case houses a battery charger and an AC adapter with space for batteries, cables etc. The battery charger comes configured with premium "mousetrap" lock/release battery plates.

The TC400 four position battery charger accepts Panasonic CGP (HPX170/DVX100/HVX200 etc.), and many other battery packs (each configuration comes with its adapter plate as ordered). Fast, safe simultaneous charge. High capacity battery packs (up to 7AH) are ready in about 3.5 hours. As a battery is charged, its status is displayed in:
• Volts
• Ah (as counted by the charger fuel gauge)
• Percent of charge (estimated, using proprietary algorithm)

Dolgin Engineering On The Go Field Kit Features

  • 4-Position Simultaneous Charger
  • Status and True Capacity LCD
  • Watertight, Dustproof Case
  • Made of Ultra High Impact Copolymer
  • Three-piece Foam Set
  • Automatic Pressure Equalization Valve
  • Easy-open Double Throw Latches
  • Stainless Steel Padlock Protectors
  • Folding Handle
  • Lifetime Guarantee of Excellence

Key Features

  • Three-piece Foam Set
  • Folding Handle

What's in the box:

  • Dolgin Engineering TC-400 4-Position Charger
  • US Power Cord
  • 1450 Case with Foam (Black)
  • 1453 O-Ring
  • 1451 Foam Set
  • Dolgin Engineering Limited 2 Year Warranty
