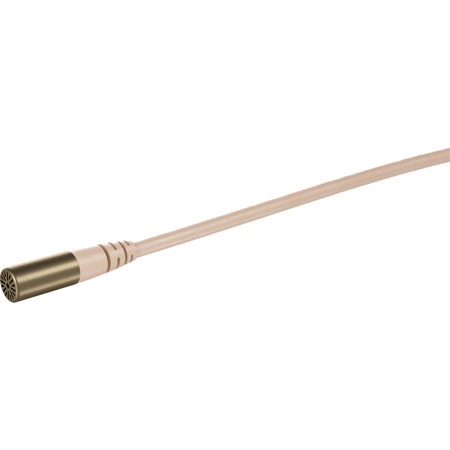

DPA Microphones d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone with Hardwired MicroDot Connector, Normal SPL, Beige

SKU: DP6060OCUF00 MFR: 6060-OC-U-F00
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with this omnidirectional lavalier microphone.
  • Achieve crystal-clear recordings using this subminiature lavalier microphone system.
  • Enjoy discreet, hands-free audio with this beige, virtually invisible lavalier mic.
  • This lavalier microphone features a MicroDot connector for versatile connectivity.
  • Benefit from superior noise reduction for professional-grade audio in any environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet CORE 6060 Omni Mic with MicroDot, Normal SPL, Beige Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 24 dB(A) re. 20 MuPa (max. 26 dB(A))

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 70 dB(A)

  • Total harmonic distortion (THD)

    < 1% up to 126 dB SPL peak

  • Dynamic range

    Typ. 102 dB

  • Max. SPL

    Peak before clipping: 134 dB

  • Output impedance

    From MicroDot: 30 - 40 Ohms
    From DAD6001-BC: 100 Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR adapter

  • Power supply (for full performance)

    Min. 5 V to max. 10 V through DPA adapter for wireless systems
    With DAD6001-BC: 48 V phantom power +/-4 V for full performance
    Works from 12V

  • Connector

    Hardwired MicroDot

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Capsule diameter

    3mm (0.12")

  • Cable length

    1.8m (5.91')

  • Dimensions (LxDia.)

    Microphone head size: 3.4 x 14.4mm (0.13 x 0.57")

  • Weight

    8g (0.28 oz) including Cable and MicroDot connector

Models
DPA Microphones d:screet CORE 6060 Omni Mic with MicroDot, Normal SPL, Beige
$615.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet CORE 4661 Heavy Duty Mic, MicroDot, Loud SPL, Black
$585.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet CORE 4071 Mic, Microdot, Presence Boost, Loud SPL,Black
$650.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorMicrodotMicrodotMicrodot

About DPA Microphones d:screet CORE 6060 Omni Mic with MicroDot, Normal SPL, Beige

You've never heard a subminiature like this before
d:screet 6060 CORE Subminiature Microphones are just 3mm (0.12") in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

• Amazing 3mm CORE capsule technology
• Renowned DPA sound in a 60% smaller package
• Stainless steel, PVD-coated mic housing
• Modular adapter system fits most professional wireless systems

Shrinking CORE into a 3mm
CORE by DPA is a powerful new technology at the heart of our miniature microphones. We've minimized distortion. From a whisper to a scream, you will experience increased clarity and openness. Now we've taken the amazing CORE technology and shrunk it down to fit into our (0.12") subminiature mics. This means that, despite their small size, the performance of the d:screet 6060 CORE Subminiature Series is fully comparable to the 5mm (0.20") miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3mm (0.12") capsule on the market and they are better able to capture high sound pressure levels without distortion as well.

Advanced new mic design
This tiny capsule has a cap that can be removed for cleaning and should be firmly reattached to the mic body with a firm click that can both be felt and heard. The supplied cap corresponds in its nature to the low-boost grid of our 5mm (0.20") versions. Both the mic itself plus the cap are made of stainless steel and treated with a Physical vapor deposition (PVD) coating that makes it extremely durable: able to tolerate high temperatures, resilient against impacts and resistant to abrasion. The entire mic has a pleasant matte look due to the coating making the entire headset look smaller and less obtrusive.

The cable is often the weak spot on these types of mics, but we have opted to use the same size cable (Dia. 1.6mm (.06") and the same rugged cable relief as on our 5mm (0.20") mics. The cables are extremely durable, do not become entangled and are equipped with an inner core made of Kevlar that withstands rough pulls. A strain relief is integrated in the mic housing to strengthen the assembly.

The cable and capsule design ensure immunity to noisy wireless devices. These mics are typically connected to a wireless belt pack and we offer a comprehensive mix of adapters to suit the many wireless transmitters available. When used with an adapter, the connector is our MicroDot but we also offer hardwired terminations to suit the most popular systems from manufactures such as Shure and Sennheiser. All of our connectors are equipped with a rugged strain relief. It's the only 3mm (0.12") mic that gives you the DPA sonic quality that you know and love.

IP58 certified
The CORE Subminiatures are IP58 certified. This durability is achieved through a number of defense mechanisms:

• Water-repellant nano-coating of the cover and housing
• Hermetic sealing of the sensitive amplifier at the core of the mic
• Dual gold plating of the diaphragm

8-position lavalier clip
When used as a lavalier, a special rotatable clip is available. The 360 deg. clip allows the lav to be mounted in eight positions, chosen in 45 deg. incremental steps. This makes it very easy to change from women's to men's shirts (left to right buttoned) or even t-shirts and the like where the neckline is used.

A bit about omnis
An omnidirectional microphone has sensitivity at all angles - in principle picking up sound equally from all directions. This gives you extremely natural and realistic sound compared to a cardioid mic. Omnis are most often used in film recording applications and broadcast environments as they pick up the sound most naturally compared to directional microphones. The omni does not suffer from proximity effect and is not as sensitive to wind, pop or handling noise. Even on a live stage, omnis are often used.

Sometimes, omnidirectional microphones are not the first type an audio engineer thinks of when it comes to live performances with a huge PA system amplifying the voice pick-up from an actor. Yet due to the short distance to the sound source (using a hidden bodyworn or headset), very high levels can be obtained with DPA omnis without feedback issues. These mics can be heard on many (very loud) theatre stages, for example on London's West End and Broadway.

Adapter system gives you flexibility
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality. The d:fine, d:screet and d:vote series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more.

DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come. Should you prefer to have your mic hardwired to a specific connector type, DPA offers pre-terminated types for the most popular wireless systems.

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with this omnidirectional lavalier microphone.
  • Achieve crystal-clear recordings using this subminiature lavalier microphone system.
  • Enjoy discreet, hands-free audio with this beige, virtually invisible lavalier mic.
  • This lavalier microphone features a MicroDot connector for versatile connectivity.
  • Benefit from superior noise reduction for professional-grade audio in any environment.

What's in the box:

  • DPA Microphones d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone with Hardwired MicroDot Connector
  • 8-Way Clip
  • DPA Microphones 2 Year Limited Warranty
