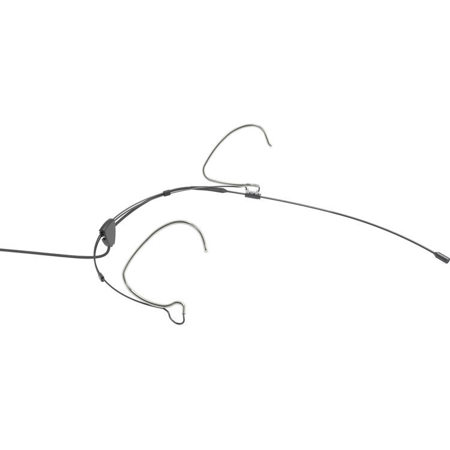

The d:fine CORE 6066 Subminiature Headset Microphone stands out for its compact size and powerful performance. It features a 3mm diameter capsule that delivers the audio power of larger DPA mics. It also has a cardioid polar pattern that minimizes background noise and focuses on the speaker's voice.
The d:fine CORE 6066 is designed for maximum comfort and secure fit. It features a unique 3-point gripping system that adjusts above, below, and behind the ear. The headset frame is made of durable stainless steel with a Physical Vapor Deposition (PVD) coating, ensuring comfort during long-term wear.
The IP58 certification ensures the microphone's durability. It has a water-repellant nano-coating on the cover and housing, a hermetically sealed amplifier, and a diaphragm with dual gold plating. These features make the microphone robust and capable of withstanding tough environments.
The d:fine CORE 6066 features a 90-degree cable management system that guides the cable down the wearer's back, keeping it out of sight. This system not only maintains a neat appearance but also helps to minimize cable breaks.
Yes, the d:fine CORE 6066 has a TA4F Mini-XLR Connector that is compatible with a wide range of audio equipment, making it a versatile tool for different audio systems.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Omnidirectional
Pressure, Pre-polarized condenser
20 Hz - 20 kHz
+/-2 dB, 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))
A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
< 1% up to 128 dB SPL peak
Typ. 102 dB
Peak before clipping: 144 dB
40Ohms
Up to 300m (984.24') with DAD6001-BC XLR Adapter
Min. 5V to max. 10V through DPA adapter for wireless systems. With DAD6001-BC: 48V phantom power +/-4V for full performance. Works from 12V
TA4F Mini-XLR
Positively increasing sound pressure produces positive going voltage on TA4F Mini-XLR pin
-40 to 45 deg. C (-40 to 113 deg. F)
Up to 90%
1.3m (4.27')
3mm (0.12")
0.35" (0.89cm)
0.40 oz (11.34g)
You can experience unparalleled audio clarity with the d:fine CORE 6066 Subminiature Headset Microphone, a professional-grade device that is designed with a TA4F Mini-XLR Connector. This innovative microphone is a testament to high-quality sound technology, boasting a 3mm diameter capsule that delivers the power and performance of larger, award-winning DPA microphones.
The d:fine CORE 6066 is a reliable choice for presenters and vocalists, thanks to its cardioid polar pattern that effectively minimizes background noise and focuses on the speaker's voice. Its compatibility with a wide range of audio equipment makes it a versatile tool for different audio systems.
Despite its compact size, this microphone doesn't compromise on sound quality. It features the groundbreaking 3mm CORE by DPA capsules technology, which offers renowned DPA sound in a 60% smaller capsule. The headset is designed for a secure and comfortable fit, with a unique 3-point gripping system that adjusts above, below, and behind the ear.
The microphone is IP58 certified, ensuring durability through water-repellant nano-coating of the cover and housing, hermetic sealing of the sensitive amplifier, and dual gold plating of the diaphragm. This robust construction allows the microphone to capture high sound pressure levels without distortion, providing a noise floor of only 26 dB(A), comparable to the 5mm DPA miniature capsule.
The headset's advanced mechanical construction ensures comfort during long-term wear without sacrificing security. The frame is made of durable stainless steel with a Physical Vapor Deposition (PVD) coating that can withstand high temperatures and resist impact and abrasion. The 2-way adjustable boom system allows for easy fitting, and the 90-degree cable management system guides the cable down the wearer's back, out of sight.
The d:fine CORE 6066 Subminiature Headset Microphone is not just a device; it's a powerful tool that delivers exceptional sound quality, comfort, and durability. Whether you're a presenter, a vocalist, or an audio professional, this microphone is designed to meet your needs and exceed your expectations.
