DPA Microphones d:fine CORE 6066 Subminiature Headset Microphone with Hardwired MicroDot Connector, Beige

SKU: DP6066OCRF00 MFR: 6066-OC-R-F00
Earn VIP Reward Points

Key Features

  • Experience exceptional sound quality with this DPA Microphones headset microphone.
  • Achieve crystal-clear audio with the d:fine CORE 6066's superior noise cancellation.
  • Enjoy all-day comfort with the lightweight, ergonomic design of this headset microphone.
  • The durable construction ensures this microphone stands up to rigorous use, event after event.
  • Seamless connectivity via MicroDot ensures compatibility with various wireless systems.
  • Capture every nuance with the high-sensitivity microphone, perfect for broadcast applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:fine CORE 6066 Subminiature Headset Mic, MicroDot, Beige Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure, Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB, 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% up to 128 dB SPL peak

  • Dynamic range

    Typ. 102 dB

  • Max. SPL

    Peak before clipping: 144 dB

  • Impedance

    From MicroDot: 30 - 40Ohms. From DAD6001-BC: 100Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR Adapter

  • Power supply (for full performance)

    Min. 5V to max. 10V through DPA adapter for wireless systems. With DAD6001-BC: 48V phantom power +/-4V for full performance. Works from 12V

  • Connector

    Hardwired MicroDot Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Cable length

    1.3m (4.27')

  • Length

    3mm (0.12")

  • Diameter

    0.35" (0.89cm)

  • Weight

    0.40 oz (11.34g)

About DPA Microphones d:fine CORE 6066 Subminiature Headset Mic, MicroDot, Beige

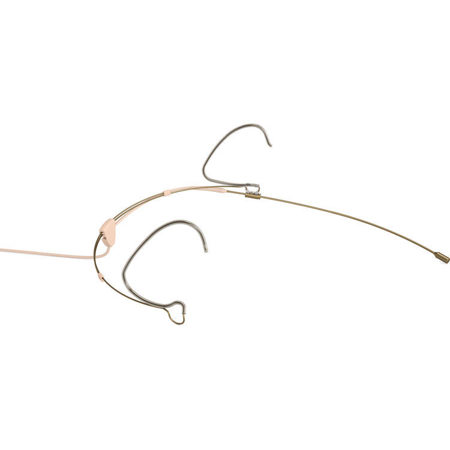

Make your audio recordings stand out with the d:fine CORE 6066 Subminiature Headset Microphone, featuring a hardwired MicroDot Connector in a sleek beige color. Despite its compact 3mm (0.12") diameter, this microphone delivers the powerful audio performance of larger, award-winning DPA microphones. Its small size does not compromise on clarity, consistency, or durability, making it a reliable choice for professional audio recording.

This headset microphone is equipped with the innovative CORE by DPA technology, which has been miniaturized to fit into the 3mm capsule. This technology ensures minimal distortion across all sound pressure levels, from whispers to screams, providing increased clarity and openness.

The d:fine 6066 CORE Headset Microphone is designed with a lightweight, one-size-fits-all headset that attaches securely over the ears for maximum comfort. The 3-point ear grips with spring mechanisms provide added security, while the 2-way adjustable boom system with an anti-rotate mechanism makes this headset easy to fit.

The microphone is IP58 certified, ensuring durability through water-repellant nano-coating, hermetic sealing of the sensitive amplifier, and dual gold plating of the diaphragm. This robust construction makes the d:fine 6066 CORE Headset Microphone perfect for use in challenging environments.

The headset frame is constructed from durable stainless steel and treated with a Physical Vapor Deposition (PVD) coating for added resilience against impact and abrasion. The frame is adjustable for a perfect fit, and the entire microphone has a matte look for a less obtrusive appearance.

The boom is 130mm long and can be adjusted for optimal placement. It features an anti-rotating mechanism and a sliding lock system for secure positioning. The boom and cable can be replaced independently if needed, thanks to the well-protected service connector at the end of the boom pole.

The d:fine 6066 CORE Headset Microphone is compatible with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom, and many more. This flexibility is made possible by DPA Microphones' unique adapter system, which allows you to switch adapters without any loss or change in sound quality.

In conclusion, the d:fine CORE 6066 Subminiature Headset Microphone is a compact, powerful, and durable solution for professional audio recording. Its innovative design and advanced technology ensure superior sound quality and comfort, making it an excellent choice for any audio professional.

DPA Microphones d:fine CORE 6066 Subminiature Headset Mic, MicroDot, Beige Features

  • Compact 3mm (0.12") d:fine CORE 6066 Subminiature Headset Microphone with powerful audio performance
  • Equipped with innovative CORE by DPA technology for minimal distortion and increased clarity
  • Lightweight, one-size-fits-all headset with secure 3-point ear grips and 2-way adjustable boom system
  • IP58 certified for durability with water-repellant nano-coating, hermetic sealing, and dual gold plating
  • Stainless steel headset frame with Physical Vapor Deposition (PVD) coating for resilience against impact and abrasion
  • Compatible with all leading wireless mic solutions, thanks to DPA Microphones' unique adapter system

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience exceptional sound quality with this DPA Microphones headset microphone.
  • Achieve crystal-clear audio with the d:fine CORE 6066's superior noise cancellation.
  • Enjoy all-day comfort with the lightweight, ergonomic design of this headset microphone.
  • The durable construction ensures this microphone stands up to rigorous use, event after event.
  • Seamless connectivity via MicroDot ensures compatibility with various wireless systems.
  • Capture every nuance with the high-sensitivity microphone, perfect for broadcast applications.

What's in the box:

  • DPA Microphones d:fine CORE 6066 Subminiature Headset Microphone with Hardwired MicroDot Connector
  • DPA Microphones 2 Year Limited Warranty
