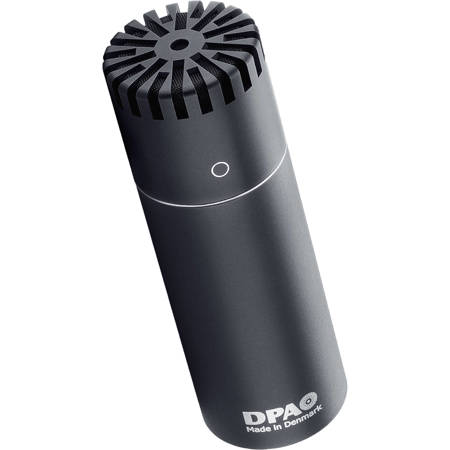

DPA Microphones d:dicate 2006C Twin Diaphragm Omnidirectional Microphone with Compact Preamplifier, 20Hz-20kHz

SKU: DPA2006C MFR: 2006C
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA condenser microphone, perfect for critical recording.
  • Experience exceptional low noise performance, ensuring clean recordings with this microphone.
  • The omnidirectional polar pattern provides a natural, balanced sound for any recording scenario.
  • Achieve high-quality stereo recordings with this durable, twin diaphragm condenser microphone.
  • This microphone's wide 20Hz-20kHz frequency range captures every nuance of your sound source.
  • Enjoy reliable connectivity with the XLR connector, ensuring compatibility with pro audio gear.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones 2006C Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser, Twin Diaphragm Capsule

  • Frequency range

    20Hz-20kHz
    +/- 2dB: 50Hz to 20kHz with typ. 3dB soft boost at 14kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 40mV/Pa
    -28dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 16dB(A) re. 20½Pa
    Maximum: 18dB(A)

    ITU-R BS.468-4:
    Typical: 28dB
    Maximum: 30dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 78dB(A)

  • Total Harmonic Distortion (THD)

    <1 % up to 130dB SPL peak

  • Dynamic range

    Typical: 114dB

  • Max. SPL

    Peak before clipping: 134dB

  • Output impedance

    <200Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328.08 '/ 100m

  • Output balance principle

    Impedance balancing with Active Drive

  • Common Mode Rejection Ratio (CMRR)

    > 50dB

  • Power supply

    48V Phantom power (+/- 4V)

  • Current consumption

    2.8mA

  • Connector

    XLR-3M. Pin 1: shield
    Pin 2: signal + phase
    Pin 3: - phase

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Output voltage

    >4V RMS

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 2.3" / 19.05 x 58.42mm

  • Weight

    Microphone: 60g / 2.12oz

  • UPC Code

    5713055006457

About DPA Microphones 2006C

Under the banner of superior audio technology, the DPA d:dicate 2006C Twin Diaphragm Omnidirectional Microphone with Compact Preamplifier, operating within a 20Hz-20kHz frequency range, is a testament to high-quality sound recording. Drawing inspiration from the esteemed DPA 4006 omni microphone, the 2006C model is a symbol of innovation and performance, distinguished by its Twin Diaphragm Capsule technology.

The 2006C microphone is a part of the versatile DPA d:dicate Recording Microphones series, renowned for its modular upgradability. This model, equipped with the MMP-C compact preamplifier, offers a nuanced sound character with a touch more 'body' to the lower frequencies, making it easier to position for optimal sound capture. For the audiophiles, the 2006A variant with the MMP-A preamplifier is the go-to choice, delivering low distortion and a sound that is both accurate and faithful.

The Twin Diaphragm Capsule technology is a standout feature of the 2006C microphone. This technology incorporates two opposite-facing miniature capsules into a double diaphragm, single-capsule composition. This unique design combines the benefits of small capsules, such as fast impulse response and large frequency bandwidth, with the lower inherent noise of a larger diaphragm area. These capsules are connected to the superior d:dicate Recording Microphone preamps, offering even more precision and airiness in sound capture.

The DPA d:dicate 2006C microphone is dedicated to acoustic authenticity, making it an ideal choice for engineers and musicians seeking to capture the true acoustic fingerprint of their sound. It excels in recording acoustic piano, guitar, wind instruments, and choirs. As a main AB stereo pair, the 2006C offers a perfect blend of two ordinary frequency responses from the 4006, with a specially tailored high-frequency response that lies perfectly between the responses from the near-field (silver) grid and the diffuse-field (black) grid.

Key features of the DPA d:dicate 2006C Twin Diaphragm Omnidirectional Microphone include its modular flexibility, Twin-Diaphragm-Capsule technology, acoustic authenticity, and linearity across a large frequency bandwidth. This microphone is a true embodiment of value for money, performing at the level of more exclusive, premium class microphones.

DPA Microphones 2006C Features

  • Twin Diaphragm Capsule technology for superior sound quality
  • Omnidirectional microphone with a wide 20Hz-20kHz frequency range
  • Modular design with MMP-C compact preamplifier for a richer low-end
  • Ideal for recording acoustic instruments and vocal performances
  • Easy integration with other DPA capsules and preamps for versatile setups
  • Precision-engineered for authentic acoustic fingerprint capture

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA condenser microphone, perfect for critical recording.
  • Experience exceptional low noise performance, ensuring clean recordings with this microphone.
  • The omnidirectional polar pattern provides a natural, balanced sound for any recording scenario.
  • Achieve high-quality stereo recordings with this durable, twin diaphragm condenser microphone.
  • This microphone's wide 20Hz-20kHz frequency range captures every nuance of your sound source.
  • Enjoy reliable connectivity with the XLR connector, ensuring compatibility with pro audio gear.

What's in the box:

  • DPA Microphones d:dicate 2006C Twin Diaphragm Omnidirectional Microphone with Compact Preamplifier
  • DPA Microphones 2 Year Limited Warranty
