DPA Microphones d:dicate 4006ER Omnidirectional Microphone Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    10Hz-20kHz
    +/- 2dB: 20Hz-20kHz

  • Sensitivity

    Nominal +/- 2dB at 250Hz: 40mV/Pa
    -28dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 15dB(A) re. 20½Pa
    Maximum: 17dB(A)

    ITU-R BS.468-4:
    Typical: 27dB
    Maximum: 29dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 79dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 132dB SPL peak

  • Dynamic range

    Typical: 117dB

  • Max. SPL

    Peak before clipping: 132dB

  • Output impedance

    1200Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4V)

  • Current consumption

    3.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: - phase

  • Output voltage

    > 4V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Matching tolerance

    +/- 0.5dB

  • Phase deviation for kit

    < 5 deg.

  • Capsule diameter

    0.6" / 15.24mm

  • Dimensions (Dia. x L)

    Microphone: 0.63-0.75 x 1.38" / 16-19.05 x 35.05mm

  • Weight

    114g / 4.02oz

12 Accessories for DPA Microphones d:dicate 4006E Omnidirectional Microphone with Modular Active Rear Cable, 10Hz to 20kHz

  • All Accessories (12)
  • Cables & Adapters (12)

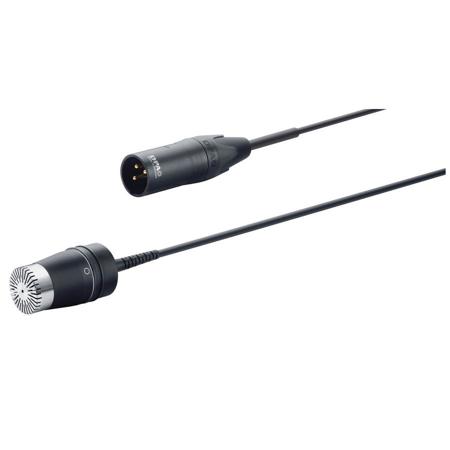

About DPA Microphones d:dicate 4006ER Omnidirectional Microphone

When small, lightweight and hardly visible microphones for top-quality recordings are required, the active cable design and clean, transparent sound of their ultra-compact 4006E makes them the perfect choice. They are particularly popular as A-B stereo or Decca Tree pairs in concert halls where clean looks may not be compromised by quality recordings. The 4006E can be mounted, hung or concealed to create clean, transparent recordings. With the SM4000-C suspension mount, which is included in the package, the 4006E to be hung in its own integrated cable from the ceiling and create precise and repeatable positioning.

It is ideal in theatres, operas and concert halls or places of worship and for film applications, both in the studio and on location. These mics are also popular for ambience miking on soundstages, in sports stadiums and other environments where ambient sound needs to be recorded. An optional selection of acoustic modification accessories, including nose cone and interchangeable protection grids, allows the 4006E to be acoustically transformed into different microphone versions, making it the most multifaceted mic in your collection and a tremendous value. By simply changing a grid, it is possible to gain several unique frequency responses and directional characteristics from a single mic. Furthermore, these grids and elements will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.

With a length of only 3,5 cm, the low-key appearance of the 4006E goes well together with its modular nature, making it possible to quickly combine the capsule with another pre-amp or boom pole or choosing another capsule with the active cable. At any time and with no tools necessary it is possible to transform the basic 4006E microphone into a new configuration by combining it with another DPA microphone capsule or preamp.

DPA Microphones d:dicate 4006ER Omnidirectional Microphone Features

  • Ultra-compact Recording Mic for Hanging Applications
  • Full-bodied Sound with Minimal Visual Impact
  • Acoustic Modification Accessories
  • Legendary Recording Reference Capsule

Key Features

  • Ultra-compact Recording Mic for Hanging Applications
  • Full-bodied Sound with Minimal Visual Impact
  • Acoustic Modification Accessories
  • Legendary Recording Reference Capsule

What's in the box:

  • DPA Microphones d:dicate 4006E Omnidirectional Microphone with Active Rear Cable
  • Foam Windscreen
  • SM4000-C Suspension Mount
  • DPA Microphones 2 Year Limited Warranty
