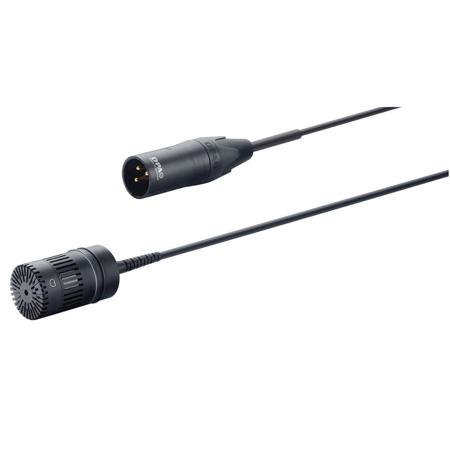

DPA Microphones d:dicate 4011ER Cardioid Microphone with Modular Active Rear Cable, 20Hz to 20kHz

SKU: DPA4011ER MFR: 4011ER
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this d:dicate 4011ER cardioid condenser microphone.
  • Achieve professional sound quality with a wide 20Hz-20kHz frequency response.
  • Enjoy incredibly low noise, perfect for critical recording applications using this microphone.
  • Modular active rear cable design offers flexible setup options for any recording space.
  • Its robust build quality ensures years of reliable use in studios or on location.
  • Use for vocals, instruments, or ambient sounds; this condenser microphone excels in any setting.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:dicate 4011ER Cardioid Microphone with Active Rear Cable Specifications

  • Directional pattern

    Cardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    +/- 2dB at 30cm: 40Hz-20kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 10mV/Pa
    -40dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 18dBA re. 20½Pa
    Maximum: 20dBA

    ITU-R BS.468-4:
    Typical: 25dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 76dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 139dB SPL peak

  • Dynamic range

    Typical: 121dB

  • Max. SPL

    Peak before clipping: 144dB

  • Output impedance

    100Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4 V)

  • Current consumption

    3.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: - phase

  • Capsule diameter

    0.75" / 19.05mm

  • Microphone Diameter

    0.75" / 19.05mm

  • Length

    2.5" / 63.50mm

  • Output voltage

    2.2V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Matching tolerance

    +/- 1dB

  • Phase deviation for kit

    < 10 deg.

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 1.38" / 19.05 x 35.05mm

  • Weight

    109g / 3.84oz

About DPA Microphones d:dicate 4011ER Cardioid Microphone with Active Rear Cable

An embodiment of professional audio recording excellence, the d:dicate 4011ER Cardioid Microphone with Modular Active Rear Cable from the esteemed DPA Microphones brand is a high-quality, durable, and innovative solution for all your audio needs. Boasting a frequency range of 20Hz to 20kHz, this compact cardioid microphone is designed for precision and performance.

Measuring a mere 3.5 cm in length, the 4011ER is a master of unobtrusive spot miking, making it an ideal choice for hanging or table use. Its low-profile design is complemented by the included SM4000-C suspension mount, enabling the microphone to be securely hung from the ceiling. This feature allows for the creation of precise and repeatable positions and angles, making it an invaluable tool for spot miking orchestra sections or capturing ambient atmospheres.

The 4011ER is not only compact but also robust, capable of handling high Sound Pressure Levels (SPLs) without distortion. This makes it perfectly tailored for close-miking applications, where it excels in minimizing bleed from other instruments. Whether you're recording the intricate nuances of an acoustic guitar, the powerful beats of drums, or the rich tones of a grand piano, the 4011ER delivers clear, detailed audio.

The 4011ER's versatility is further enhanced by its modular design. With no tools necessary, you can easily transform the basic 4011ER microphone into a new configuration by combining it with another DPA microphone capsule or preamp. This adaptability makes the 4011ER a reliable and flexible choice for a wide range of recording applications, from live sound and studio recording to field recording. Experience the difference of professional-grade audio with the d:dicate 4011ER Cardioid Microphone.

DPA Microphones d:dicate 4011ER Cardioid Microphone with Active Rear Cable Features

  • Ultra-compact spot or hanging mic
  • Very linear frequency and phase response
  • Huge dynamic range
  • Low-key appearance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this d:dicate 4011ER cardioid condenser microphone.
  • Achieve professional sound quality with a wide 20Hz-20kHz frequency response.
  • Enjoy incredibly low noise, perfect for critical recording applications using this microphone.
  • Modular active rear cable design offers flexible setup options for any recording space.
  • Its robust build quality ensures years of reliable use in studios or on location.
  • Use for vocals, instruments, or ambient sounds; this condenser microphone excels in any setting.

What's in the box:

  • DPA Microphones d:dicate 4011ER Cardioid Microphone with Modular Active Rear Cable
  • SM4000-C Suspension Mount
  • Foam Windscreen
  • DPA Microphones 2 Year Limited Warranty
