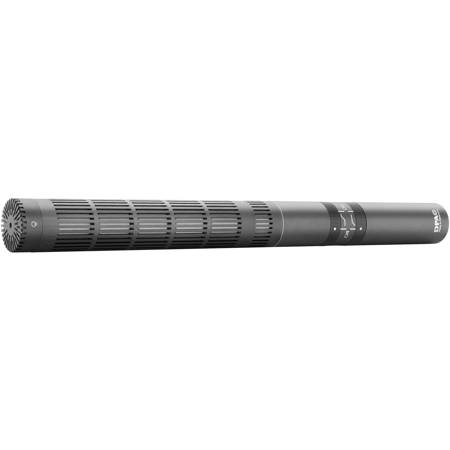

DPA Microphones d:dicate 4017B Professional Shotgun Supercardioid Microphone with Preamplifier, 20Hz-20kHz

SKU: DPA4017B MFR: 4017B
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA shotgun microphone's exceptional sound quality.
  • Achieve focused recordings using the supercardioid polar pattern, rejecting unwanted noise.
  • This durable shotgun microphone withstands rigorous use, ensuring long-lasting reliability.
  • Enjoy versatile connectivity with the XLR output, compatible with professional audio gear.
  • Experience low noise performance, capturing clean, detailed sound for critical recordings.
  • Perfect for film, broadcast, and sound design, this microphone offers superior clarity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Abdullah A : It has less amount of noise due to the High Pass Filter and the frequency boost that it has

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:dicate 4017B Professional Shotgun Supercardioid Microphone Specifications

  • Directional characteristics

    Supercardioid, lobe-shaped

  • Principle of operation

    Pressure gradient, with interference tube

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz - 20kHz
    permanent third order high pass filter at 50Hz
    +/- 2dB at 60cm: 70Hz - 18kHz with typ. 3dB soft boost at 15kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 19mV/Pa
    -34.4dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 13dB(A) re. 20½Pa
    Maximum: 15dB(A)

    ITU-R BS.468-4:
    Typical: 24dB
    Maximum: 26dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 80dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 133dB SPL peak

  • Dynamic range

    Typical: 119dB

  • Max. SPL

    Peak before clipping: 138dB

  • Filters

    High boost: +4dB at 8kHz
    Low cut: First order filter, below 120Hz

  • Output impedance

    <150Ohms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Signal balanced

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4V)

  • Current consumption

    4.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: signal - phase

  • Output voltage

    > 1.8V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Capsule diameter

    0.75" / 19.05mm

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 8.3" / 19.05 x 210.82mm

  • Weight

    68g / 2.40oz

  • UPC Code

    5713055005412

About DPA Microphones d:dicate 4017B Professional Shotgun Supercardioid Microphone

Take your audio recording to the next level with the DPA d:dicate 4017B Professional Shotgun Supercardioid Microphone with Preamplifier. This high-quality, durable microphone is designed by DPA Microphones, a renowned brand recognized for its innovative and reliable audio equipment.

The 4017B is not just a microphone, but a testament to superior sound engineering. It features a supercardioid polar pattern, a design that ensures highly directional sound pickup. This means it excels at capturing sound from the intended direction while effectively minimizing noise interference from other directions.

With a frequency response range of 20Hz-20kHz, this professional shotgun microphone is capable of capturing a wide spectrum of sound frequencies, delivering clear and accurate audio in any recording scenario. Whether you're recording for film, television, live events, or even in studio environments, the 4017B ensures exceptional audio clarity and musicality.

This microphone is also equipped with a high voltage pre-polarized back plate in its condenser capsule, providing high output, wide dynamics, and extremely low noise and distortion specifications. This means you can expect superior performance in any recording condition.

Despite its powerful performance, the 4017B is compact and lightweight. Measuring just 210 mm (8.3 in) in length and weighing a mere 68 g (2.4 oz), it's one of the smallest and lightest boom microphones available. Its aluminum body is not just durable but also fully immune to RF emission.

The 4017B also features two onboard filters, easily activated via a unique switching ring design. With a simple twist, you can implement a high-frequency boost or a first-order bass roll-off to minimize handling and wind noise. A permanent third-order high-pass filter at 50 Hz effectively removes unwanted low-frequency disturbances.

In summary, the DPA d:dicate 4017B Professional Shotgun Supercardioid Microphone with Preamplifier is a versatile, high-quality audio recording tool that delivers professional-grade performance. Its innovative features and superior sound quality make it an ideal choice for professionals seeking reliable and exceptional audio capture.

DPA Microphones d:dicate 4017B Professional Shotgun Supercardioid Microphone Features

  • Professional-grade shotgun supercardioid microphone for precise audio capture
  • High-frequency response range of 20Hz-20kHz for wide spectrum sound recording
  • Compact and lightweight design with durable aluminum body for easy handling
  • High voltage pre-polarized back plate for high output and low noise
  • Two onboard filters with unique switching ring design for optimal sound control
  • Fully immune to RF emission for reliable performance in various environments

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Capture pristine audio with this DPA shotgun microphone's exceptional sound quality.
  • Achieve focused recordings using the supercardioid polar pattern, rejecting unwanted noise.
  • This durable shotgun microphone withstands rigorous use, ensuring long-lasting reliability.
  • Enjoy versatile connectivity with the XLR output, compatible with professional audio gear.
  • Experience low noise performance, capturing clean, detailed sound for critical recordings.
  • Perfect for film, broadcast, and sound design, this microphone offers superior clarity.

What's in the box:

  • DPA Microphones d:dicate 4017B Professional Shotgun Supercardioid Microphone
  • UA0639 Microphone Clip
  • DUA0073 Windscreen
  • DPA Microphones 5 Year Limited Warranty
