DPA Microphones d:dicate 4017B-R Professional Shotgun Supercardioid Microphone
See all DPA Microphones items

DPA Microphones d:dicate 4017B-R Professional Shotgun Supercardioid Microphone with Preamplifier and Rycote Windshield, 20Hz-20kHz

SKU: DPA4017BR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Yolanda G : I enjoy the best tools for any given job!

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

DPA Microphones d:dicate 4017B-R Professional Shotgun Supercardioid Microphone Specifications

  • Directional characteristics

    Supercardioid, lobe-shaped

  • Principle of operation

    Pressure gradient, with interference tube

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz - 20kHz
    permanent third order high pass filter at 50Hz
    +/- 2dB at 60cm: 70Hz - 18kHz with typ. 3dB soft boost at 15kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 19mV/Pa
    -34.4dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 13dB(A) re. 20½Pa
    Maximum: 15dB(A)

    ITU-R BS.468-4:
    Typical: 24dB
    Maximum: 26dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 80dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 133dB SPL peak

  • Minimum load impedance

    2kOhms

  • Dynamic range

    Typical: 119dB

  • Max. SPL

    Peak before clipping: 138dB

  • Filters

    High boost: +4dB at 8kHz
    Low cut: First order filter, below 120Hz

  • Output impedance

    <150Ohms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Signal balanced

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4V)

  • Current consumption

    4.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: signal - phase

  • Output voltage

    > 1.8V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Capsule diameter

    0.75" / 19.05mm

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 8.3" / 19.05 x 210.82mm

  • Weight

    68g / 2.40oz

About DPA Microphones d:dicate 4017B-R Professional Shotgun Supercardioid Microphone

DPA Microphones has joined forces with Rycote to develop the DPA 4017 Shotgun/Rycote Windshield Solution. The strong suspension and windshield solution has been designed specifically to take the DPA 4017B shotgun mic's compact size and light weight into consideration. This kit provides everything an outside broadcaster, journalist or location film maker could need for clear, directional sound, regardless of the weather and environmental conditions.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

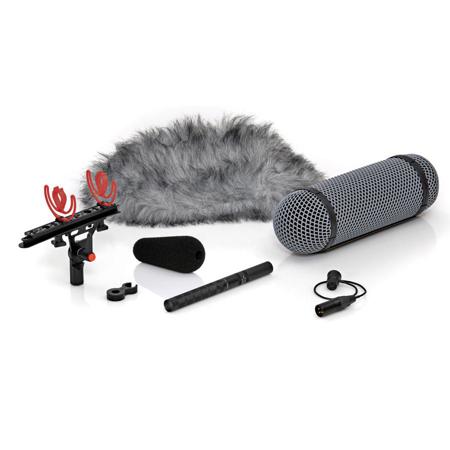

What's in the box:

  • DPA Microphones d:dicate 4017B Professional Shotgun Supercardioid Microphone Premounted Rycote Suspension with Rycote Windshield
  • DPA XLR Cable
  • DPA Windscreen
  • Rycote Fur Windjammer
  • Rycote XLR Holder
  • Rycote Brush
  • UA0639 Microphone Clip
  • DPA Microphones 5 Year Limited Warranty
