DPA Microphones d:dicate 4017C-R Professional Shotgun Supercardioid Microphone
See all DPA Microphones items

DPA Microphones d:dicate 4017C-R Professional Shotgun Supercardioid Microphone with MMP-C Compact Preamplifier and Rycote Windshield, 20Hz-20kHz

SKU: DPA4017CR
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DPA Microphones d:dicate 4017C-R Professional Shotgun Supercardioid Microphone Specifications

  • Directional characteristics

    Supercardioid, lobe-shaped

  • Principle of operation

    Pressure gradient, with interference tube

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz - 20kHz
    +/- 2dB at 60cm: 40Hz - 18kHz with typ. 3dB soft boost at 15kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 19mV/Pa
    -34.4dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 13dB(A) re. 20½Pa
    Maximum: 15dB(A)

    ITU-R BS.468-4:
    Typical: 24dB
    Maximum: 26dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 81dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 137dB SPL peak

  • Dynamic range

    Typical: 124dB

  • Max. SPL

    Peak before clipping: 146dB

  • Minimum load impedance

    2kOhms

  • Output impedance

    100Ohms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing with Active Drive

  • Common Mode Rejection Ratio (CMRR)

    >50dB

  • Power supply

    48V Phantom power (+/-4V)

  • Current consumption

    2.8mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: signal - phase

  • Output voltage

    4.5V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Frequency response

    Yes

  • Polar plot

    Yes

  • Off-axis response

    Yes

  • Capsule diameter

    0.75" / 19.05mm

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 6.1" / 19.05 x 154.94mm

  • Weight

    70g / 2.47oz

About DPA Microphones d:dicate 4017C-R Professional Shotgun Supercardioid Microphone

DPA Microphones has joined forces with Rycote to develop the DPA 4017C-R Shotgun/Rycote Windshield Solution. The strong suspension and windshield solution has been designed specifically to take the DPA 4017C shotgun mic's exceptional compact size and lightweight into consideration. This kit provides everything a boomer, outside broadcaster, journalist or location film maker could need for clear, directional sound, regardless of the weather and environmental conditions.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

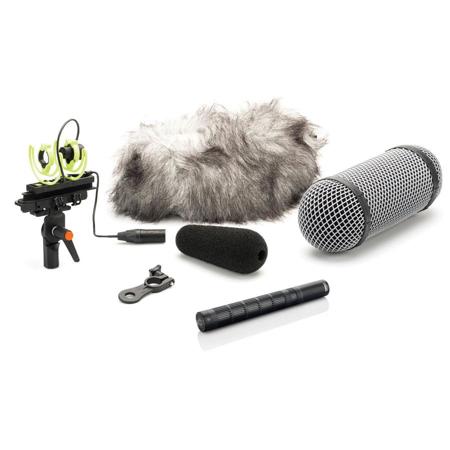

What's in the box:

  • DPA Microphones d:dicate 4017C-R Professional Shotgun Supercardioid Microphone Pre-mounted Rycote Suspension with Rycote Windshield
  • DPA XLR Cable
  • DPA Windscreen
  • Rycote Fur Windjammer
  • Rycote XLR Holder
  • Rycote Brush
  • DPA Microphones 2 Year Limited Warranty
