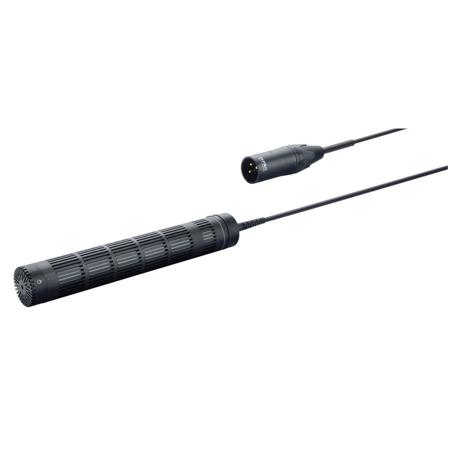

DPA Microphones d:dicate 4017E Professional Shotgun Supercardioid Microphone with Modular Active Rear Cable, 20Hz-20kHz

SKU: DPA4017ER MFR: 4017ER
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA shotgun microphone, perfect for film & broadcast.
  • Achieve superior sound isolation using the supercardioid polar pattern for focused recording.
  • Experience low noise and high sensitivity, ensuring clear audio even in quiet environments.
  • Enjoy durable construction with this DPA microphone, built to withstand rigorous field use.
  • Utilize the modular active rear cable for flexible setup options in various recording scenarios.
  • Get broadcast-ready sound; ideal shotgun microphone for interviews, documentaries, and more.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:dicate 4017ER Professional Shotgun Supercardioid Microphone Specifications

  • Directional characteristics

    Supercardioid, lobe-shaped

  • Principle of operation

    Pressure gradient, with interference tube

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz - 20kHz
    +/- 2dB at 60cm: 40Hz - 18kHz with typ. 3dB soft boost at 15kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 19mV/Pa
    -34.4dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 13dB(A) re. 20½Pa
    Maximum: 15dB(A)

    ITU-R BS.468-4:
    Typical: 24dB
    Maximum: 26dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 81dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 137dB SPL peak

  • Dynamic range

    Typical: 124dB

  • Max. SPL

    Peak before clipping: 138dB

  • Output impedance

    100Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4V)

  • Current consumption

    3.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: phase

  • Output voltage

    2.2V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Capsule diameter

    0.75" / 19.05mm

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 4.9" / 19.05 x 124.46mm

  • Weight

    121g / 4.27oz

About DPA Microphones d:dicate 4017ER Professional Shotgun Supercardioid Microphone

The d:dicate 4017E Professional Shotgun Supercardioid Microphone with Modular Active Rear Cable, operating in the 20Hz-20kHz frequency range, is a testament to innovative audio technology. This state-of-the-art microphone features the smallest pre-amp design in its class, offering an integrated cable solution with options for either side (4017ES) or rear (4017ER) cable entry.

As the most compact professional interference tube shotgun microphone available on the market, the 4017E stands out with its minimalistic length of just 12.5 cm and a lightweight capsule weighing a mere 30g. With a total weight of 121g, inclusive of a 3m cable and connector, this microphone is designed for optimal portability and ease of use.

Ideal for booming actors or capturing distant voice dialogue, the 4017E is a go-to choice for broadcast and video situations. It comes with the SM4000 suspension mount, enabling the microphone to be hung from the ceiling for precision spot miking of orchestra sections or creating ambient atmosphere.

The 4017E offers unparalleled versatility. At any time, and without the need for tools, it can be transformed into a new configuration by pairing it with another DPA microphone capsule or preamp. This feature makes the d:dicate 4017E Professional Shotgun Supercardioid Microphone a dynamic and adaptable solution for all your audio recording needs.

DPA Microphones d:dicate 4017ER Professional Shotgun Supercardioid Microphone Features

  • Sleek shotgun for distant miking
  • Short and lightweight
  • Integrated active cable
  • Highly directional

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA shotgun microphone, perfect for film & broadcast.
  • Achieve superior sound isolation using the supercardioid polar pattern for focused recording.
  • Experience low noise and high sensitivity, ensuring clear audio even in quiet environments.
  • Enjoy durable construction with this DPA microphone, built to withstand rigorous field use.
  • Utilize the modular active rear cable for flexible setup options in various recording scenarios.
  • Get broadcast-ready sound; ideal shotgun microphone for interviews, documentaries, and more.

What's in the box:

  • DPA Microphones d:dicate 4017E Professional Shotgun Supercardioid Microphone with Modular Active Rear Cable
  • Foam Windscreen
  • SM4000-C Suspension Mount
  • DPA Microphones 2 Year Limited Warranty
